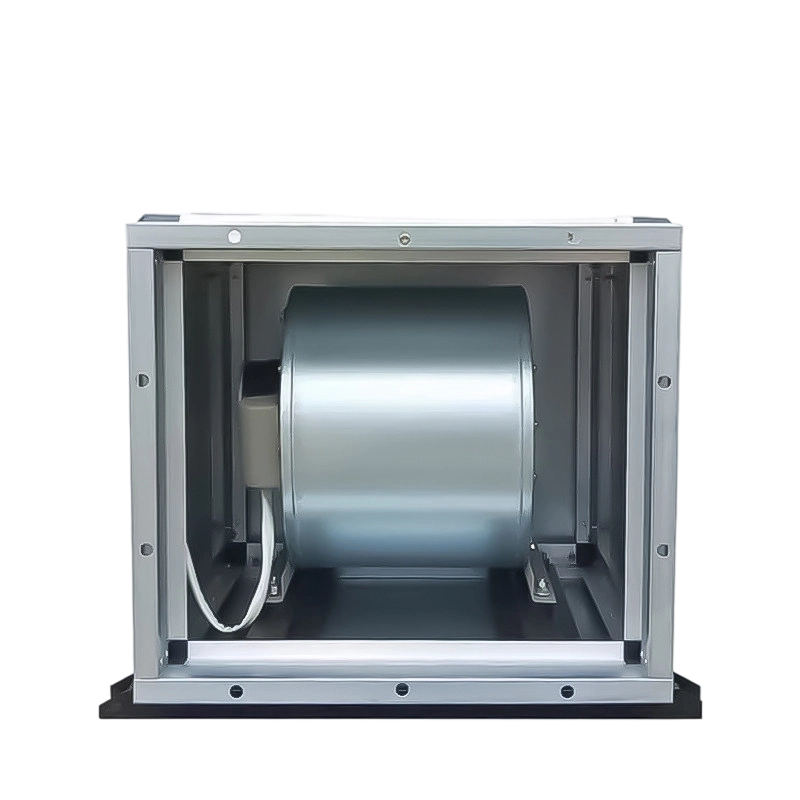

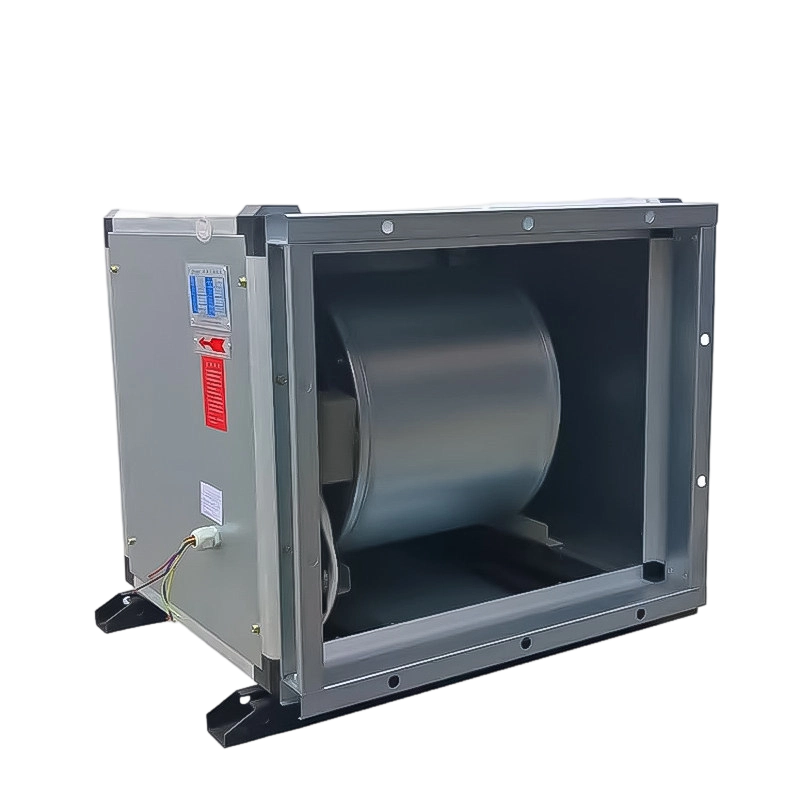

BF series Cabinet Fan
BF series Cabinet Fan is a high-performance air handling solution engineered by POPULA, a professional 100% direct source manufacturer. Designed specifically for versatile B2B applications, this series provides an efficient and quiet ventilation solution for modern air conditioning systems in commercial buildings and industrial factories, delivering factory-direct quality to global infrastructure projects.
Operational Advantages of BF series Cabinet Fan
Sourcing the BF series Cabinet Fan directly from our manufacturing facility ensures you receive a system optimized for energy efficiency and flexible installation. This series is uniquely designed to regulate air flow according to seasonal variations and specific operating conditions, helping facility managers significantly reduce energy consumption while maintaining peak performance.
- Dual-Inlet External Rotor Design: Equipped with a high-efficiency external rotor motor and a dual-inlet structure, the BF series Cabinet Fan delivers powerful airflow within a compact, space-saving footprint.
- Acoustic Insulation Performance: Built with an all-metal frame and removable acoustic insulation panels, this fan ensures smooth, low-noise running and provides easy access for routine maintenance.
- Flexible Installation & Output: The cabinet design is engineered to supply air to pipelines in different directions, offering unmatched flexibility for complex ductwork layouts in large-scale buildings.
- Smart Control Integration: Upon request, the fan can regulate air flow and pressure via the AC power source and supports remote operation through an electronic control box for advanced building automation.
- Lightweight & Robust: Despite its heavy-duty performance, the lightweight construction and rational design make it easy to install in various ceiling or mechanical room configurations.
Whether you are managing an HVAC upgrade for a commercial complex or a factory ventilation project, the BF series Cabinet Fan offers the technical precision and quiet power required for today’s environmental standards. Trust POPULA for expert technical support and competitive wholesale pricing on all cabinet ventilation solutions.
Parameters
| Model(Nº) | Power(kW) | Voltage(V) | Speed | Volume(m³/h) | Pressure(Pa) | Staticpressure(Pa) |
|---|---|---|---|---|---|---|
| BF-2A (Single-phase) | 0.22 | 220 | High | 1044~2314 | 207~177 | 192~106 |
| BF-2A (Single-phase) | 0.22 | 220 | Medium | 919~2036 | 160~137 | 149~82 |
| BF-2A (Single-phase) | 0.22 | 220 | Low | 836~1851 | 133~113 | 123~68 |
| BF-2A (Single-phase) | 0.10 | 220 | High | 710~1573 | 96~98 | 89~49 |
| BF-2A (Single-phase) | 0.10 | 220 | Medium | 668~1481 | 85~72 | 79~43 |
| BF-2A (Single-phase) | 0.10 | 220 | Low | 627~1388 | 75~64 | 69~38 |
| BF-2.25A (Single-phase) | 0.25 | 220 | High | 1110~2393 | 119~99 | 110~57 |
| BF-2.25A (Single-phase) | 0.25 | 220 | Medium | 1045~2252 | 106~87 | 98~50 |
| BF-2.25A (Single-phase) | 0.25 | 220 | Low | 914~1971 | 81~67 | 75~38 |
| BF-2.25A (Single-phase) | 0.55 | 220 | High | 1763~3800 | 300~249 | 278~143 |
| BF-2.25A (Single-phase) | 0.55 | 220 | Medium | 1502~3237 | 218~180 | 201~104 |
| BF-2.25A (Single-phase) | 0.55 | 220 | Low | 1306~2680 | 165~136 | 152~78 |
| BF-2.5A (Single-phase) | 0.37 | 220 | High | 1178~2680 | 159~163 | 148~107 |
| BF-2.5A (Single-phase) | 0.37 | 220 | Medium | 1109~2522 | 141~144 | 131~95 |
| BF-2.5A (Single-phase) | 0.37 | 220 | Low | 1040~2365 | 124~127 | 116~83 |
| BF-2.5A (Single-phase) | 0.75 | 220 | High | 1377~3941 | 344~352 | 321~231 |
| BF-2.5A (Single-phase) | 0.75 | 220 | Medium | 1594~3626 | 291~298 | 272~196 |
| BF-2.5A (Single-phase) | 0.75 | 220 | Low | 1386~3153 | 220~226 | 205~148 |
| BF-2.0A | 0.18-4P | 380 | – | 852~1532 | 227~208 | 217~176 |
| BF-2.0A | 0.25-4P | 380 | – | 1066~2348 | 251~245 | 213~182 |
| BF-2.0A | 0.32-4P | 380 | – | 1568~3010 | 266~245 | 219~145 |
| BF-2.0A | 0.12-6P | 380 | – | 931~1759 | 110~102 | 92~60 |
| BF-2.0A | 0.18-6P | 380 | – | 1350~2501 | 114~91 | 94~40 |
| BF-2.25A | 0.32-4P | 380 | – | 1304~2090 | 327~320 | 312~282 |
| BF-2.25A | 0.45-4P | 380 | – | 2159~3426 | 320~301 | 260~209 |
| BF-2.25A | 0.55-4P | 380 | – | 2387~3976 | 305~254 | 243~151 |
| BF-2.25A | 0.18-6P | 380 | – | 1642~2548 | 160~147 | 137~92 |
| BF-2.25A | 0.25-6P | 380 | – | 1905~3107 | 142~110 | 107~50 |
| BF-2.5A | 0.55-4P | 380 | – | 1373~2577 | 449~470 | 433~427 |
| BF-2.5A | 0.8-4P | 380 | – | 2265~4302 | 455~502 | 415~380 |
| BF-2.5A | 0.25-6P | 380 | – | 1576~2770 | 220~250 | 200~198 |
| BF-2.8A | 1.1-4P | 380 | – | 2463~4598 | 398~452 | 367~344 |
| BF-2.8A | 1.5-4P | 380 | – | 3504~5866 | 500~422 | 438~258 |
| BF-2.8A | 0.37-6P | 380 | – | 2363~3863 | 241~231 | 213~156 |
| BF-2.8A | 0.55-6P | 380 | – | 2925~4450 | 270~194 | 226~127 |
| BF-3.0A | 1.5-4P | 380 | – | 3071~5520 | 682~750 | 642~649 |
| BF-3.0A | 0.55-6P | 380 | – | 2033~4225 | 298~336 | 285~274 |
| BF-3.15A | 1.8-4P | 380 | – | 3041~5565 | 744~836 | 711~741 |
| BF-3.15A | 2.2-4P | 380 | – | 4343~6820 | 820~839 | 749~699 |
| BF-3.15A | 0.8-6P | 380 | – | 2875~5408 | 359~353 | 328~265 |
| BF-3.55A | 3.0-4P | 380 | – | 4087~8165 | 952~979 | 915~847 |
| BF-3.55A | 4.0-4P | 380 | – | 7424~10913 | 976~938 | 852~703 |
| BF-3.55A | 0.8-6P | 380 | – | 2803~5620 | 407~451 | 388~407 |
| BF-3.55A | 1.5-6P | 380 | – | 4002~8633 | 459~418 | 418~271 |
| BF-3.55A | 0.55-8P | 380 | – | 3301~5646 | 257~248 | 230~185 |
| BF-4.0A | 1.5-6P | 380 | – | 3080~6380 | 552~605 | 539~555 |
| BF-4.0A | 1.8-6P | 380 | – | 5088~7526 | 576~656 | 538~587 |
| BF-4.0A | 2.2-6P | 380 | – | 6842~9130 | 632~665 | 568~550 |
| BF-4.0A | 1.1-8P | 380 | – | 4812~6847 | 355~374 | 319~309 |
| BF-4.5A | 4.0-6P | 380 | – | 8437~13617 | 805~868 | 744~708 |
| BF-4.5A | 5.5-6P | 380 | – | 11750~18520 | 841~869 | 722~539 |
| BF-4.5A | 7.5-6P | 380 | – | 13710~21500 | 867~881 | 705~483 |
| BF-4.5A | 2.2-8P | 380 | – | 9033~13350 | 462~502 | 410~309 |
| BF-5.0A | 6.0-6P | 380 | – | 11441~20500 | 887~950 | 822~812 |
| BF-5.0A | 7.5-6P | 380 | – | 13845~23433 | 938~974 | 841~762 |
| BF-5.0A | 4.0-8P | 380 | – | 11883~18349 | 593~625 | 494~412 |
siz
Technical Illustration
