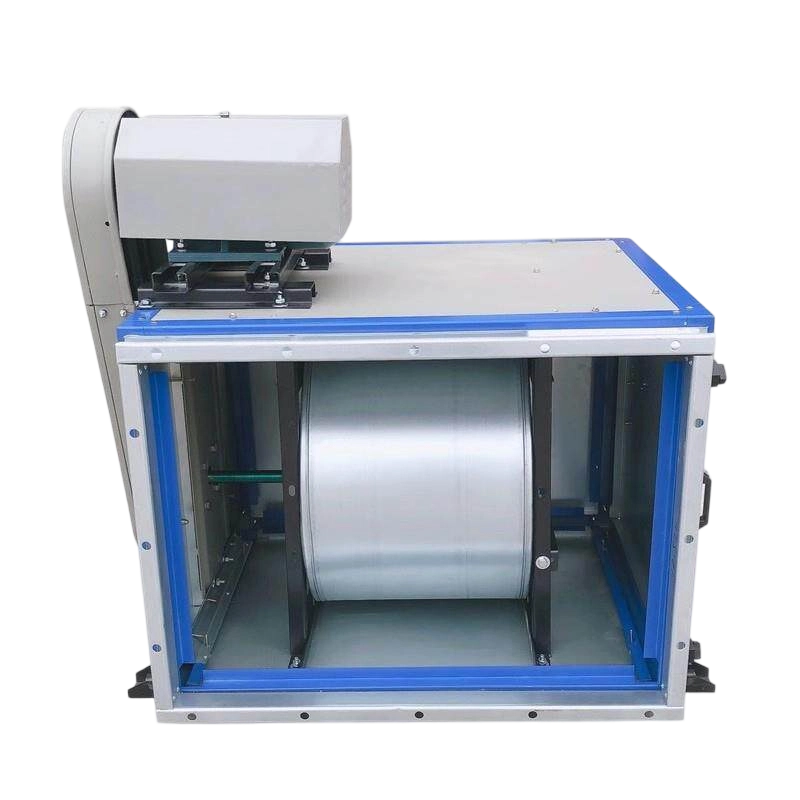

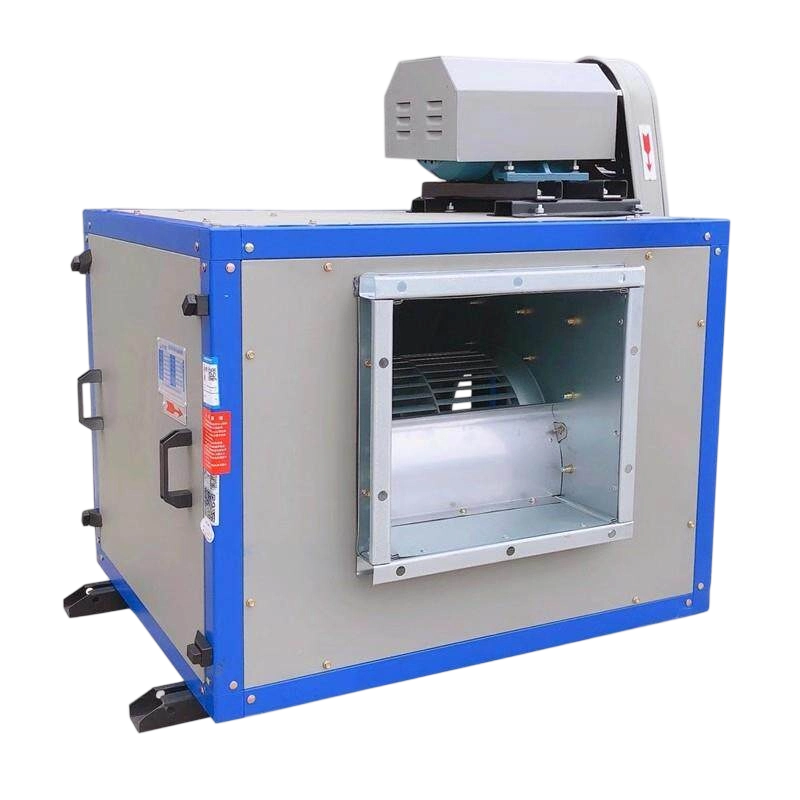

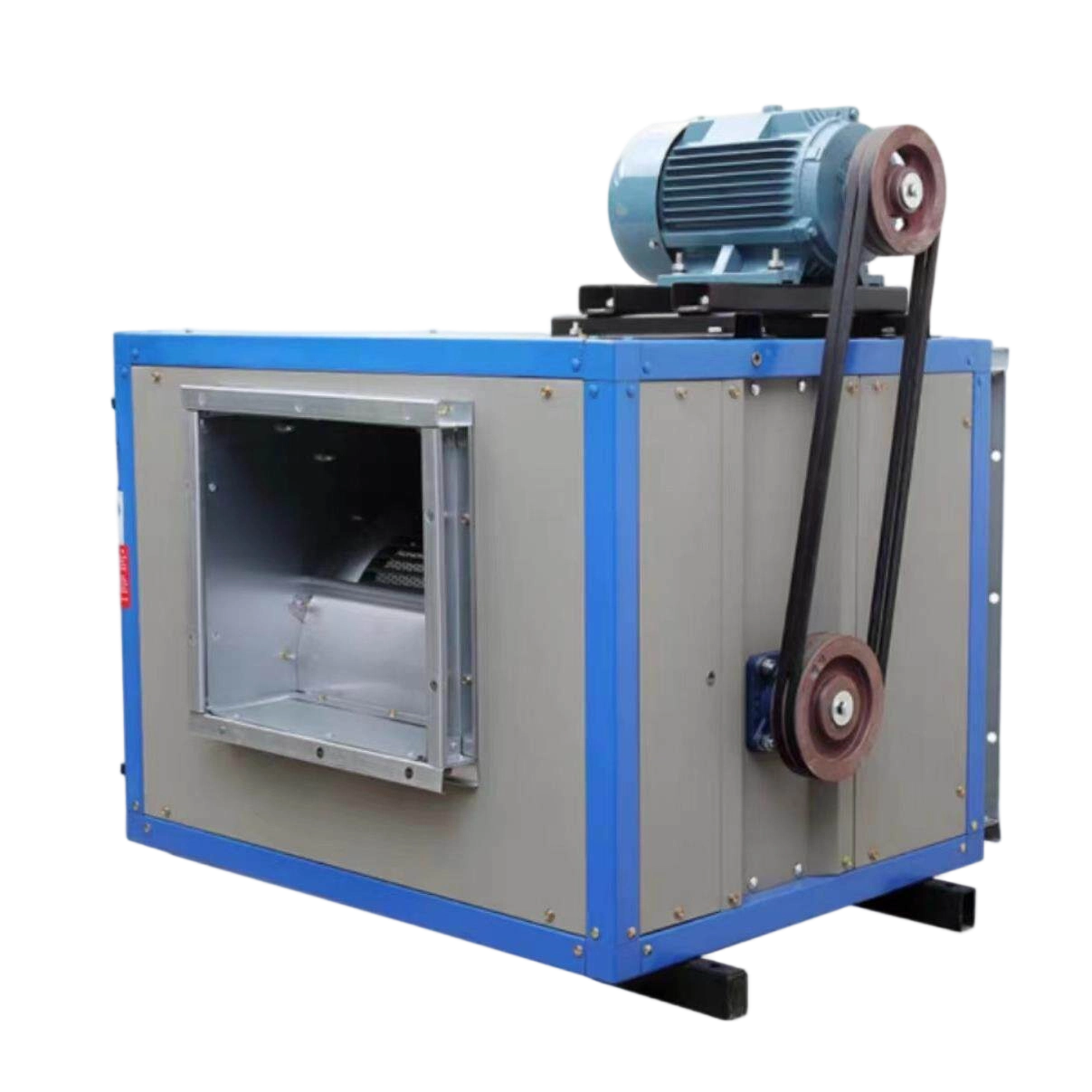

DT Series Cabinet Centrifugal Fans

D T series low noise centrifugal fan has the benefits of high efficiency,low noise, novel compactstructure, small vibration.light weight,easymaintenance and install.etc It can be widely used inhotels,restaurants,cinemas, halls,miningindustries, building to exhaust the air or exhaustthelampblack. The air transferred shall not contain any adhesive material, dust an d grain and the concentration shall not exceed 50mg/m³,with the temperature no higher than80°C。

dt series cabinet centrifugal fans
dt series cabinet centrifugal fans
dt series cabinet centrifugal fans
dt series cabinet centrifugal fans
产数Parameters

DT Single speed series

Model(Nº) Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Staticpressure(Pa)
9″ 0.55 900 1328~3171 218~209 198~154
9″ 0.75 1000 1476~3524 269~259 245~190
9″ 1.1 1200 2346~4670 378~361 343~223
9″ 1.5 1400 2736~5448 514~491 457~304
9″ 2.2 1630 3398~6317 565~370 510~339
10″ 0.75 900 2422~3905 215~151 190~101
10″ 1.1 1000 2691~4339 256~186 234~108
10″ 1.5 1200 3299~5207 381~268 338~155
10″ 2.2 1400 3768~6075 520~365 460~211
10″ 3 1630 3937~7919 709~600 635~515
12″ 1.1 800 3221~6025 251~195 224~106
12″ 1.5 900 2623~6778 315~247 285~135
12″ 2.2 1120 4288~8021 488~407 414~367
12″ 3 1250 5033~9414 610~475 549~260
12″ 4 1430 5579~10633 809~660 730~596
15″ 1.5 700 4934~8676 242~200 211~103
15″ 2.2 820 5780~10164 332~273 288~160
15″ 3 930 6526~10977 455~337 400~295
15″ 4 1130 6815~11658 670~607 588~434
15″ 5.5 1250 7330~12422 920~835 820~665
18″ 2.2 600 6854~12375 283~203 240~109
18″ 3 720 8150~14507 393~242 332~149
18″ 4 820 9404~16738 441~272 440~200
18″ 5.5 1000 10355~17056 752~385 687~218
18″ 7.5 1100 10745~18766 920~550 840~330
20″ 3 560 7343~15390 289~216 272~140
20″ 4 610 8412~17628 378~283 356~184
20″ 5.5 720 9613~20146 495~370 465~240
20″ 7.5 850 10815~22737 758~645 633~356
20″ 11 950 12563~28454 938~787 801~426
22″ 4 550 11528~22666 335~218 307~110
22″ 5.5 650 13624~26787 467~305 428~153
22″ 7.5 720 16831~29672 607~373 525~187
22″ 11 880 18706~33021 802~475 787~276
22″ 15 950 19707~35983 1005~708 953~455
25″ 5.5 520 17107~27831 345~243 307~170
25″ 7.5 650 19081~31042 430~303 383~215
25″ 11 720 21713~35324 680~518 606~358
25″ 15 760 22473~37205 840~671 763~502
25″ 18.5 800 23656~42377 921~650 846~407
25″ 22 860 27012~46720 1142~758 1047~480
28″ 7.5 500 21203~33778 393~355 351~275
28″ 11 560 24321~38745 523~468 462~366
28″ 15 650 27439~43712 625~590 588~460
28″ 18.5 720 30557~48680 825~590 729~578
28″ 22 800 33675~53647 990~897 886~702
28″ 30 900 37417~57608 1224~1108 1094~866
30″ 11 500 24938~35334 494~426 450~360
30″ 15 560 27931~39574 620~535 564~450
30″ 18.5 600 29926~48202 723~614 647~516
30″ 22 680 32420~52219 835~720 760~605
30″ 30 750 33601~63015 1177~825 1107~691
30″ 37 820 35129~66906 1425~986 1387~765
33″ 11 400 30006~46447 366~303 318~208
33″ 15 450 34397~53244 481~398 418~273
33″ 18.5 500 36592~56642 545~451 473~309
33″ 22 550 38788~60041 612~506 532~347
33″ 30 600 43179~66838 760~628 660~430
33″ 37 650 47716~73562 927~766 804~525
33″ 45 700 51533~79770 1084~896 940~614
36″ 15 350 31926~52079 360~286 317~217
36″ 18.5 400 36487~59519 468~374 414~283
36″ 22 450 41048~66959 593~474 524~359
36″ 30 500 45608~74399 732~585 647~443
36″ 37 550 50169~81839 886~707 783~536
36″ 45 600 54730~89278 1054~842 932~638
36″ 55 650 57801~100902 1289~815 1129~442
40″ 30 430 52453~93220 663~438 572~378
40″ 37 480 58552~104060 827~546 747~493
40″ 45 520 63431~112731 970~641 877~579
40″ 55 580 70750~125738 1207~797 1091~720
40″ 75 620 75629~134410 1379~910 1247~822
40″ 90 680 82948~147417 1659~1096 1500~990
44″ 37 400 75176~120135 809~436 796~447
44″ 45 430 80814~129146 935~532 920~517
44″ 55 480 90211~144163 1165~663 1146~644
44″ 75 530 99608~159180 1420~808 1397~785
44″ 90 560 105246~168190 1585~902 1560~876
44″ 110 600 112764~180203 1820~1035 1791~1005

DT Double speed series

Model(Nº) Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Staticpressure(Pa)
12″ 2.5/0.9 1050 4227~7908 430~335 387~183
12″ 2.5/0.9 700 2818~5271 191~149 172~100
12″ 3.2/1.1 1250 5033~9414 610~475 549~260
12″ 3.2/1.1 830 3355~6276 271~211 243~116
15″ 4.7/1.5 1050 7613~13386 574~473 501~245
15″ 4.7/1.5 700 5075~8924 256~210 222~109
15″ 6.7/2.2 1250 8811~15493 770~635 670~328
15″ 6.7/2.2 830 5871~10329 342~281 298~146
18″ 6.7/2.2 900 10259~18260 615~441 524~236
18″ 6.7/2.2 600 6840~12173 274~196 233~105
18″ 9.5/3.1 1050 11969~21303 838~600 714~321
18″ 9.5/3.1 700 7979~14202 372~268 317~143
20″ 6.7/2.2 800 10681~22385 610~456 574~295
20″ 6.7/2.2 530 7121~14923 272~202 255~131
20″ 9.5/3.1 900 12017~25183 773~578 727~374
20″ 9.5/3.1 600 8011~16789 344~257 323~166
20″ 12/4 950 12736~26692 865~646 814~419
20″ 12/4 650 8651~20071 402~257 378~128
22″ 9.5/3.1 800 16768~32969 708~460 649~231
22″ 9.5/3.1 530 11179~21979 315~205 288~103
22″ 12/4 900 18864~37090 895~582 820~292
22″ 12/4 600 12576~24727 398~259 365~130
22″ 15.5/5.1 950 18907~39167 1057~611 908~308
22″ 15.5/5.1 630 13643~26827 470~306 429~154
25″ 15.5/5.1 720 23687~38535 661~467 590~329
25″ 15.5/5.1 480 15791~25689 294~207 262~146
25″ 18/6.2 830 27305~44422 879~620 783~437
25″ 18/6.2 550 18203~29614 390~275 347~194
25″ 24/8.5 870 29554~46085 1088~768 1001~480
25″ 24/8.5 570 19659~31983 456~321 407~226
28″ 18/6.2 660 30680~49448 666~506 578~265
28″ 18/6.2 440 20453~32965 296~225 257~118
28″ 24/8.5 720 33934~52527 814~674 707~461
28″ 24/8.5 480 22623~35018 362~300 314~205
28″ 33/11 800 38582~59723 1053~871 914~597
28″ 33/11 530 25722~39815 468~387 406~265
30″ 24/8.5 650 35196~60535 840~589 750~390
30″ 24/8.5 430 23464~40357 373~262 333~173
30″ 33/11 720 38986~68055 1030~665 920~435
30″ 33/11 480 25991~44703 458~321 408~212
30″ 38/13 820 44805~73089 1407~785 1325~765
30″ 38/13 540 29870~48726 549~381 517~267
33″ 33/11 640 51305~72502 883~735 742~506
33″ 33/11 425 34303~48335 392~328 330~225
33″ 38/13 700 56115~79299 1056~883 887~605
33″ 38/13 465 37410~52866 469~393 394~269
36″ 38/13 540 50169~81839 886~707 783~536
36″ 38/13 360 33640~54875 402~309 354~242
36″ 47/16 600 54730~89299 1054~883 932~605
36″ 47/16 400 36487~59519 468~374 414~283
