WF series Wall Fan
WF Series fan adopts low noise walltype energy-saving impeller and is driven by motor directly Square casing design makes it easier to install the fan to concrete wall, brick wall or light steel pressed wallboard.The squarerain cover is firm in construction and nice in appear ance the fan is mainly used for ventilation in workshop and commercial construction.
产数Parameters
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| 2.5A | 0.09 | 220/380 | 1400 | 1300 | 26 |
| 3A | 0.12 | 220/380 | 1400 | 1800 | 30 |
| 3.5A | 0.18 | 220/380 | 1400 | 2880 | 48 |
| 4A | 0.25 | 220/380 | 1400 | 4370 | 84 |
| 4.5A | 0.37 | 220/380 | 1400 | 5300 | 88 |
| 5A | 0.37 | 220/380 | 1400 | 5760 | 88 |
| 5.6A | 0.55 | 220/380 | 1400 | 8350 | 110 |
| 6A | 1.1 | 220/380 | 1450 | 12294 | 187 |
| 7A | 2.2 | 220/380 | 1450 | 22170 | 239 |
尺寸siz
| Model(Nº) | a | b | c | d | L | L1 | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 2.5A | 300 | 300 | 340 | 208 | 173 | 10 | 15 |
| 3A | 350 | 350 | 390 | 248 | 210 | 15 | 19 |
| 3.5A | 400 | 400 | 440 | 298 | 218 | 20 | 25 |
| 4A | 450 | 450 | 490 | 348 | 225 | 20 | 29 |
| 4.5A | 500 | 500 | 540 | 398 | 255 | 29 | 42 |
| 5A | 560 | 560 | 600 | 458 | 281 | 37 | 60 |
| 5.6A | 600 | 600 | 640 | 508 | 321 | 107 | 85 |
| 6A | 680 | 680 | 720 | 581 | 381 | 105 | 105 |
| 7A | 790 | 790 | 830 | 830 | 435 | 105 | 105 |

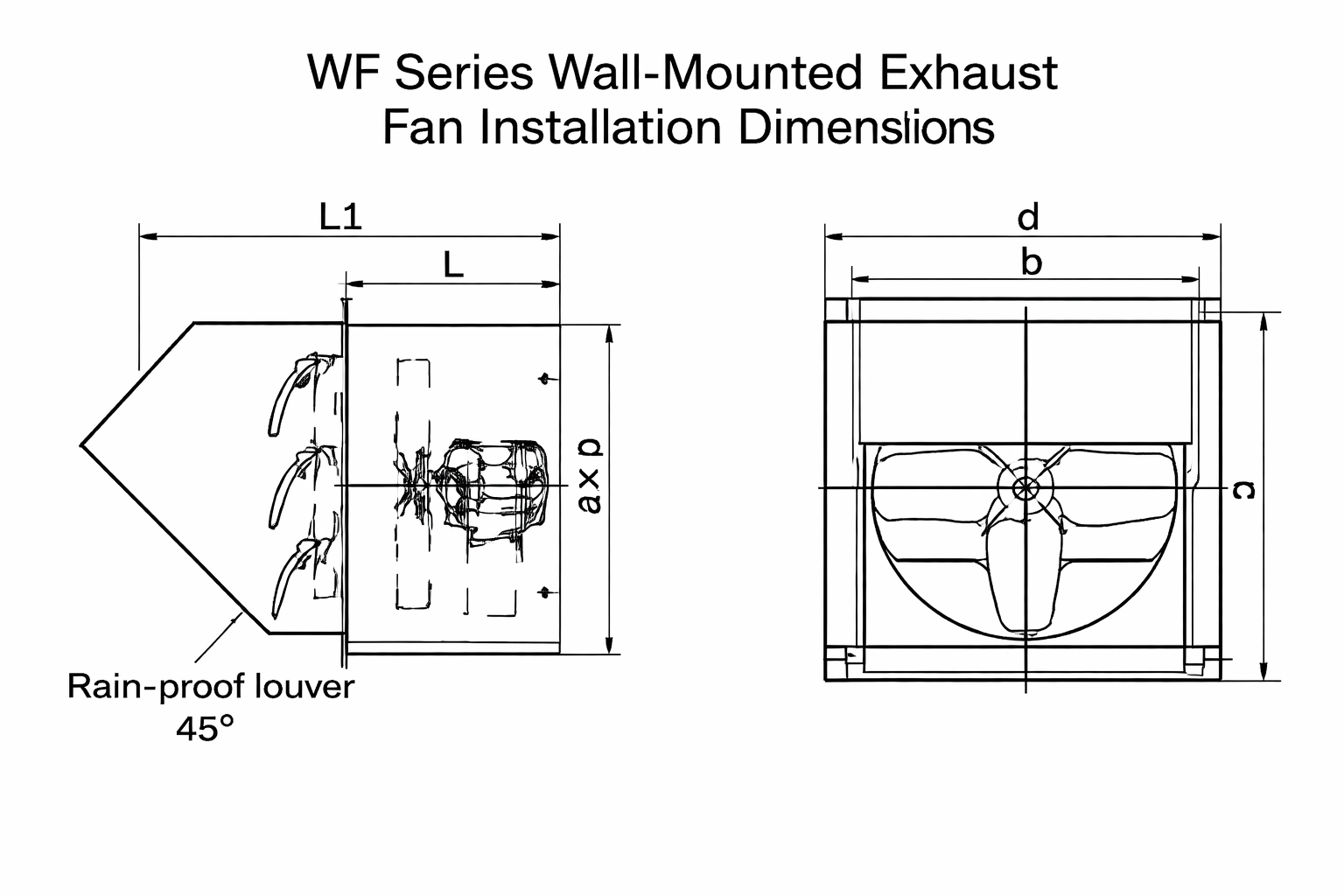

线图Technical Illustration
