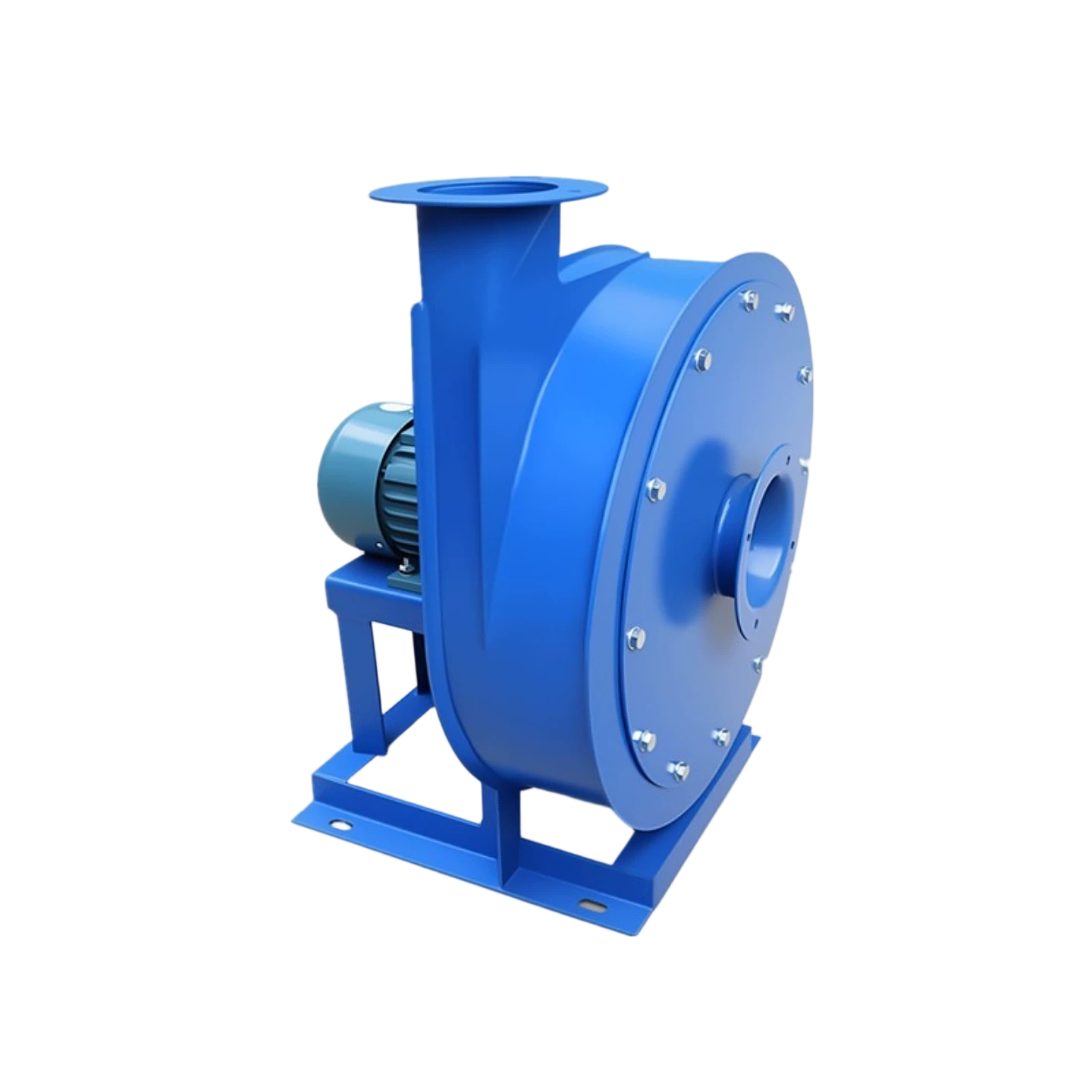

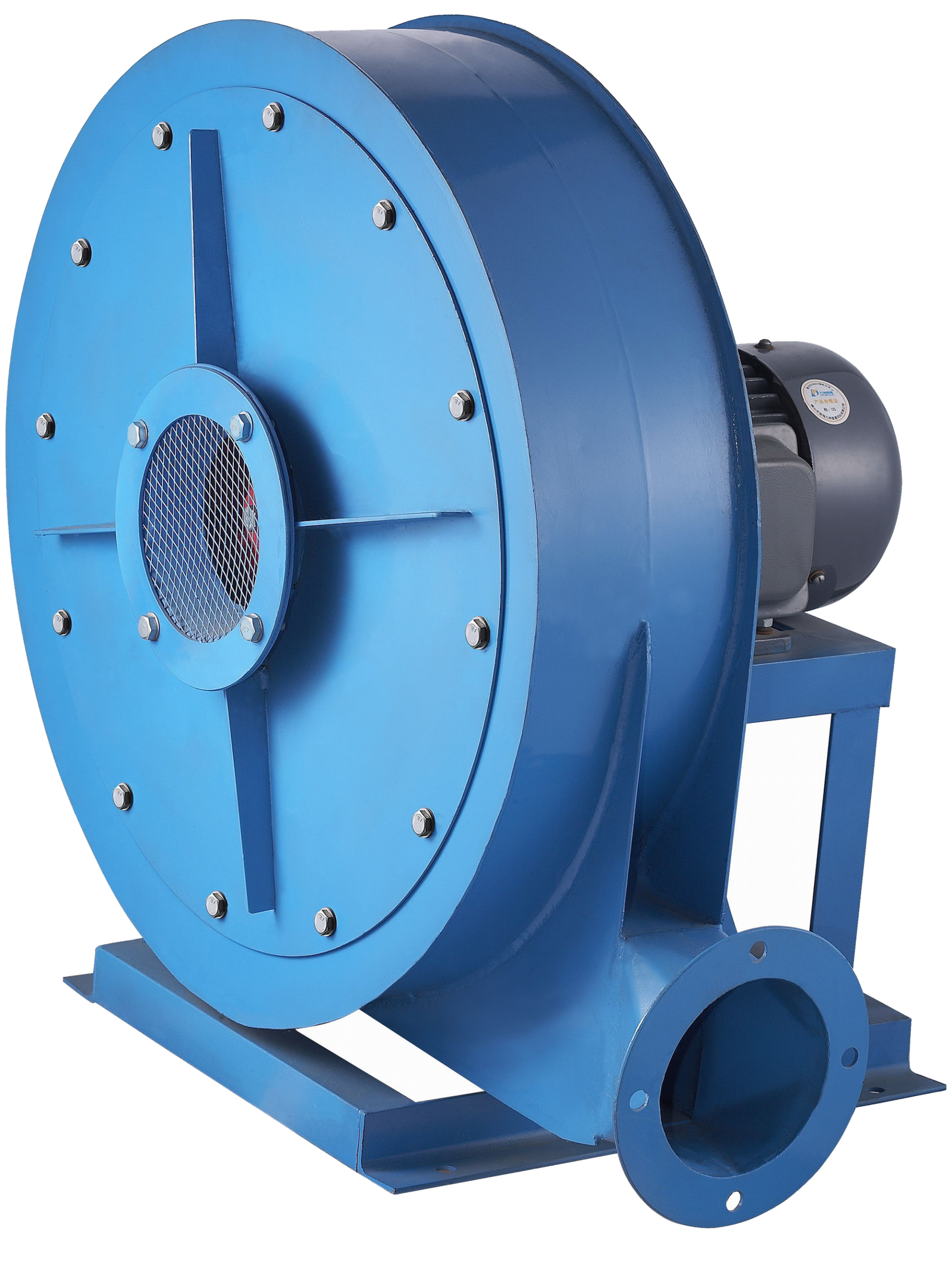

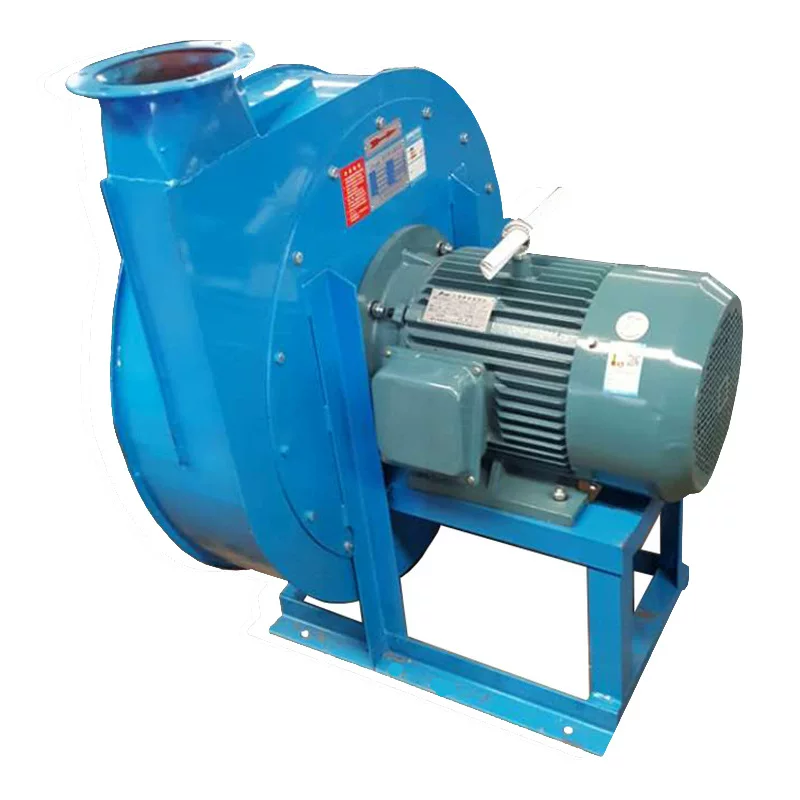

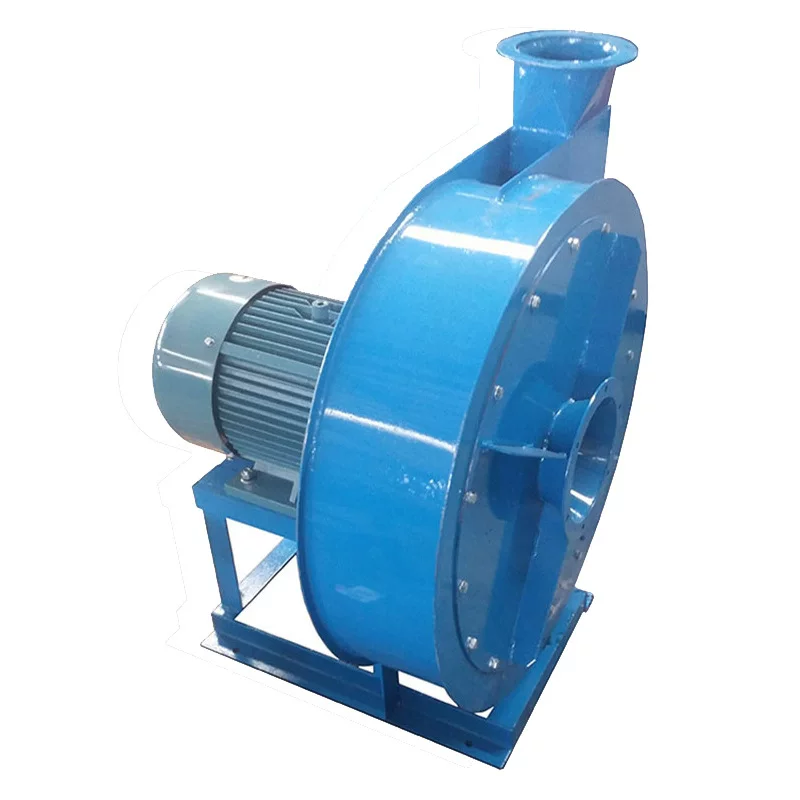

2JZ double-stage high pressure blower
2JZ series at present are our new product researched and developed on the basis of a series of high pressure blower at home and abroad. The fans have two-stage impellers. Featured by high pressure, low noise, rational design,nice outlook,and stable operation, the fans are widely used for high pressure blowing in industries such as ancient fumace, glass,electroplating and ceramics, and also for materialtransportation in some industries like silos, feed,slag processing, etc.The air transferred shall not contain any toxic, corrosive and adhesive material with the temperature of air no greater than80°C ,dust and grain and the concentration shall not exceed 150mg/m³.
产数Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 4A | 0.9 | 2800 | 200~300 | 5100~4650 |
| 4.5A | 2.2 | 2800 | 400~670 | 6420~5300 |
| 5A | 4 | 2900 | 400~1300 | 8100~2550 |
| 5.6A-I | 5.5 | 2900 | 700~1100 | 9700~8080 |
| 5.6A-I | 7.5 | 2900 | 1150~1600 | 7650~3430 |
| 5.6A-II | 7.5 | 2900 | 709~1300 | 10119~9160 |
| 5.6A-II | 11 | 2930 | 1350~2314 | 8950~2247 |
| 6.3A | 11 | 2930 | 1030~1700 | 11920~9520 |
| 6.3A | 15 | 2930 | 1720~2300 | 9440~5000 |
| 6.8A | 15 | 2930 | 980~2000 | 14570~10950 |
| 6.8A | 18.5 | 2930 | 2070~2920 | 10400~3500 |
尺寸siz
线图Technical Illustration
