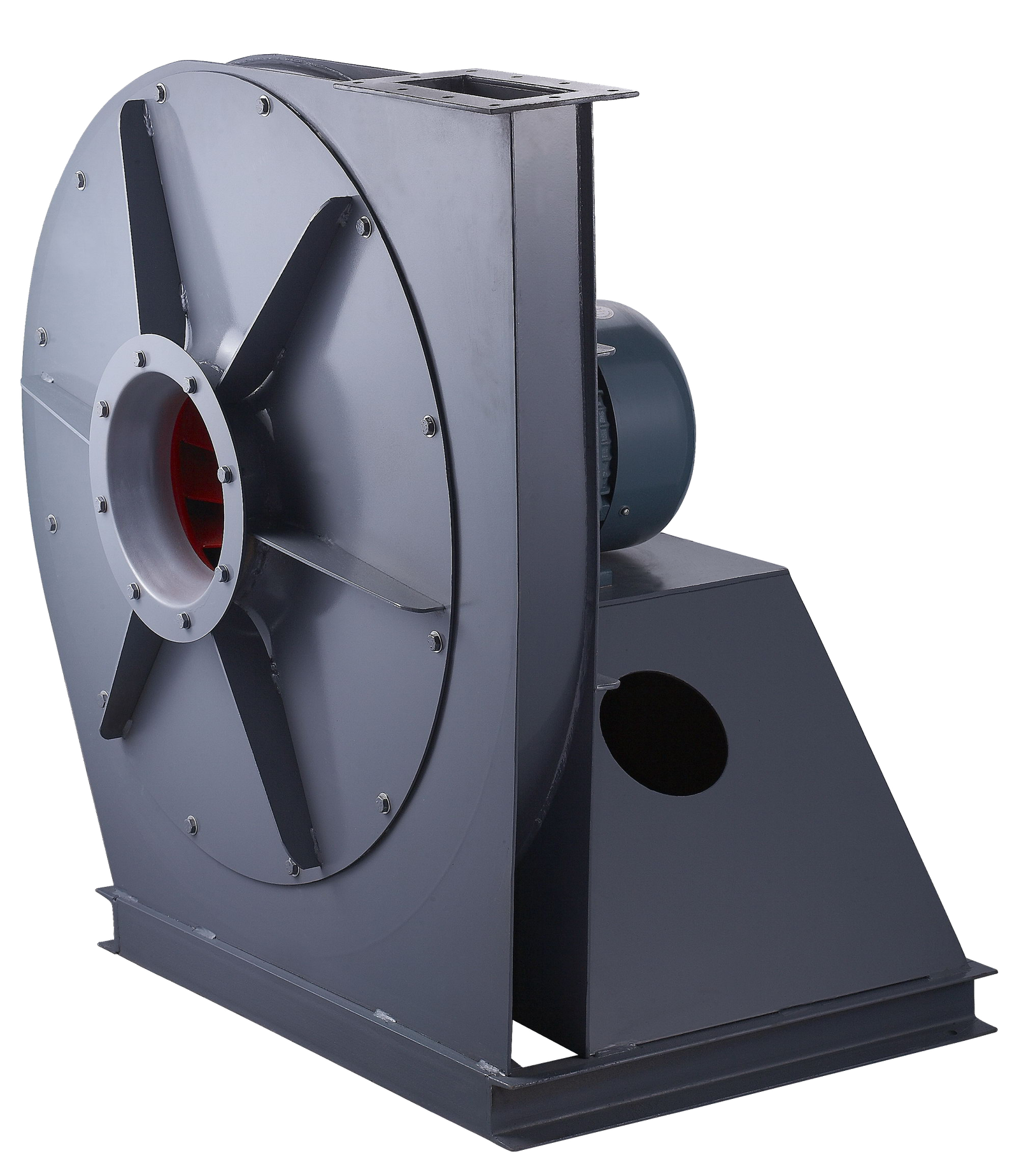

9-12 high pressure centrifugal fan
9-12(A) type is the professional fans designed for Cupola furnace and carton machine. The air transferred shall not contain any corrosive, not spontaneous combustion and adhesive material,dust and grain and the concentration shall not exceed 150mg/m³, with the temperature no higher than 80℃.
产数Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 5A | 5.5 | 2900 | 1000~2680 | 4800~3239 |
| 5A | 7.5 | 2900 | 2700~3400 | 3100~2065 |
| 6.3A | 7.5 | 2900 | 1000~1875 | 8000~8300 |
| 6.3A | 11 | 2930 | 1925~2750 | 8280~7850 |
| 6.3A | 15 | 2930 | 2800~4000 | 7830~6100 |
| 6.8A | 15 | 2930 | 1667~3600 | 9880~9420 |
| 6.8A | 18.5 | 2930 | 3667~4567 | 9350~8400 |
| 6.8A | 22 | 2930 | 4600~5500 | 8350~6760 |
| 7.1A | 15 | 2930 | 1201~2978 | 10515~10821 |
| 7.1A | 18.5 | 2930 | 3566~4148 | 10570~10103 |
| 7.1A | 30 | 2950 | 4818~6344 | 9490~6933 |
| 7.7A | 18.5 | 2930 | 1532~2983 | 12367~12953 |
| 7.7A | 37 | 2950 | 3798~6697 | 12727~10520 |
| 7.7A | 45 | 2970 | 7314~8092 | 9632~8154 |
尺寸siz
线图Technical Illustration
