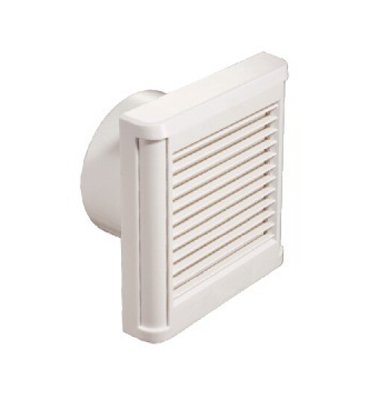

APC Window Type Exhaust Fan
Material: made of antistatic and anti-aging ABS plastic. Structure:compact, safe, stable and firm.Application: suitable for ventilation in sitting room,office,shopping mall, building and etc.
产数Parameters
| Model(Nº) | Airflow direction | Power(W) | Voltage(V) | Volume(m³/h) | Noise dB(A) | Product Dimensions(mm) | Panel size(mm) | Opening size(mm) |
|---|---|---|---|---|---|---|---|---|
| APC10-C1 | 排气 | 18 | 220 | 36 | 40 | 150×150×95 | 150×150 | Ø105 |
| APC15-C1 | 排气 | 19 | 220 | 144 | 42 | 200×200×115 | 200×200 | Ø155 |
| APC20-C1 | 排气 | 24 | 220 | 216 | 45 | 250×250×120 | 250×250 | Ø185 |
尺寸siz
线图Technical Illustration
Get a quote
Not sure which model you need? Leave it to us.
You don’t need to provide precise airflow or static pressure data. Simply share the ventilation challenges you’re facing—such as workshop size, temperature conditions, or dust levels—and our engineers will handle all the complex calculations and model selection for you. Start a relaxed, no-obligation initial consultation today.
Your information is strictly confidential. We promise to focus solely on technical solutions and will never send you spam emails.
