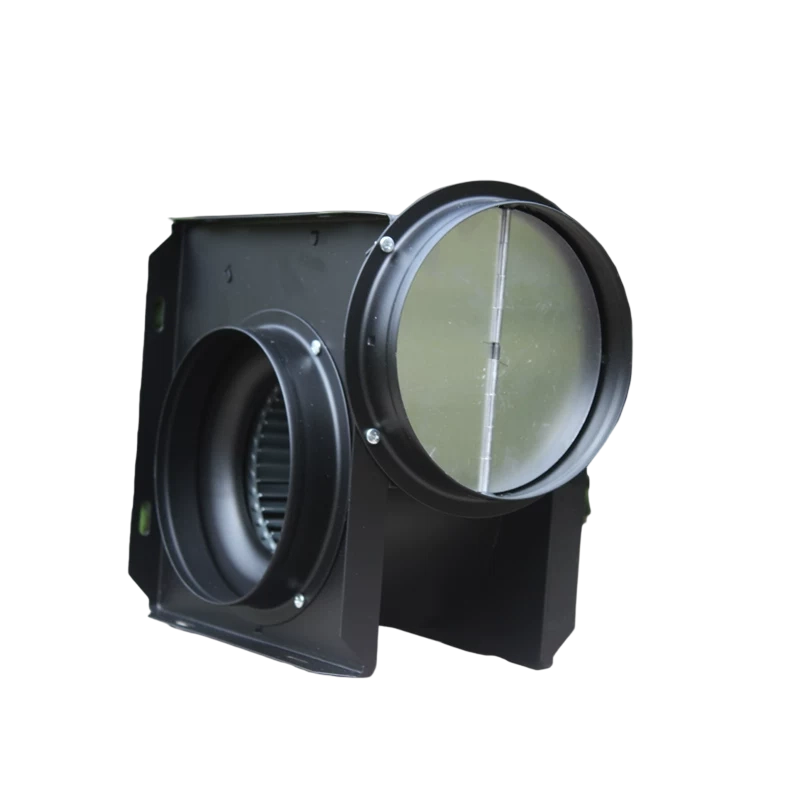

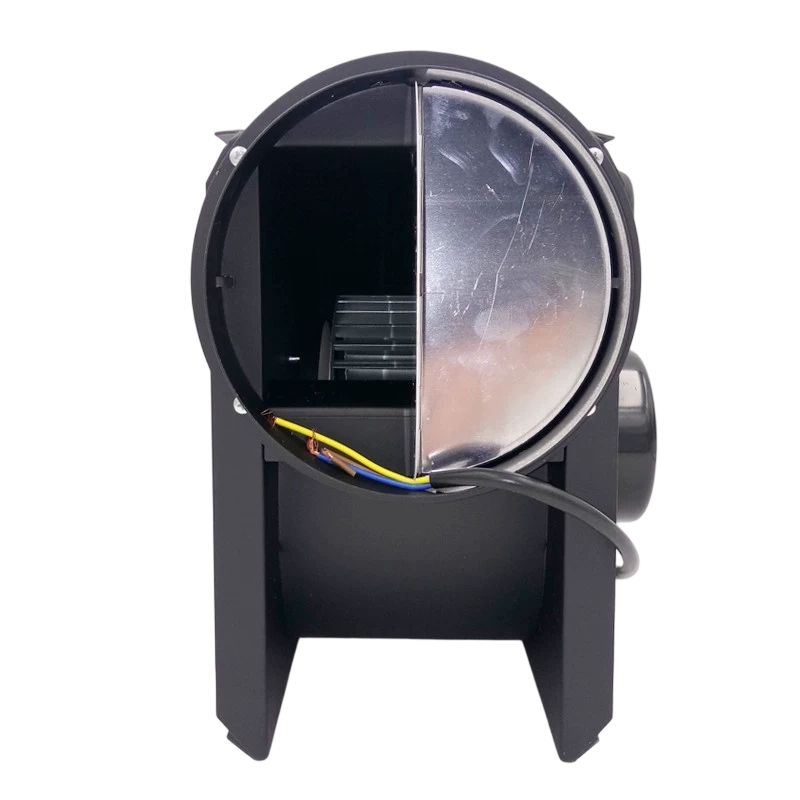

GF series Metal Split Type Dust Fan

Casing materials: made of high strength metal; spray painting and good anti rust property.Motor: high quality ball bearing motor Impeller: forward multi-impeller.Application: suitable for ventilation or increasing duct pressure in factories,shopping malls, entertainment places and residential buildings

产数Parameters

Model(Nº)	Power(W)	Voltage(V)	Volume(m³/h)	Static Pressure(Pa)	Noise dB(A)	Pipe size(mm)
GF100-4	17	220	153	60	43	100
GF100-2	35	220	280	70	62	100
GF120-4	33	220	317	100	43	150
GF120-2	90	220	633	112	65	150
GF150-4	59	220	412	132	48	150
GF150-4	80	220	481	142	50	150
GF190-4	160	220	729	120	61	200
GF190-4	200	220	935	139	63	200
GF210-4	290	220	985	145	63	200
GF210-4	330	220	1253	167	65	200

尺寸siz

线图Technical Illustration

Get a quote

Not sure which model you need? Leave it to us.

You don’t need to provide precise airflow or static pressure data. Simply share the ventilation challenges you’re facing—such as workshop size, temperature conditions, or dust levels—and our engineers will handle all the complex calculations and model selection for you. Start a relaxed, no-obligation initial consultation today.
