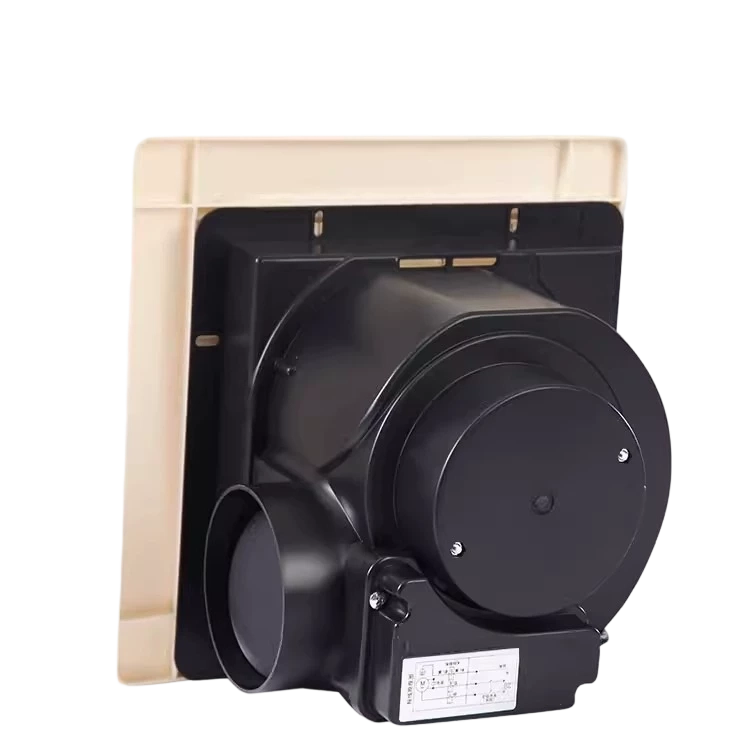

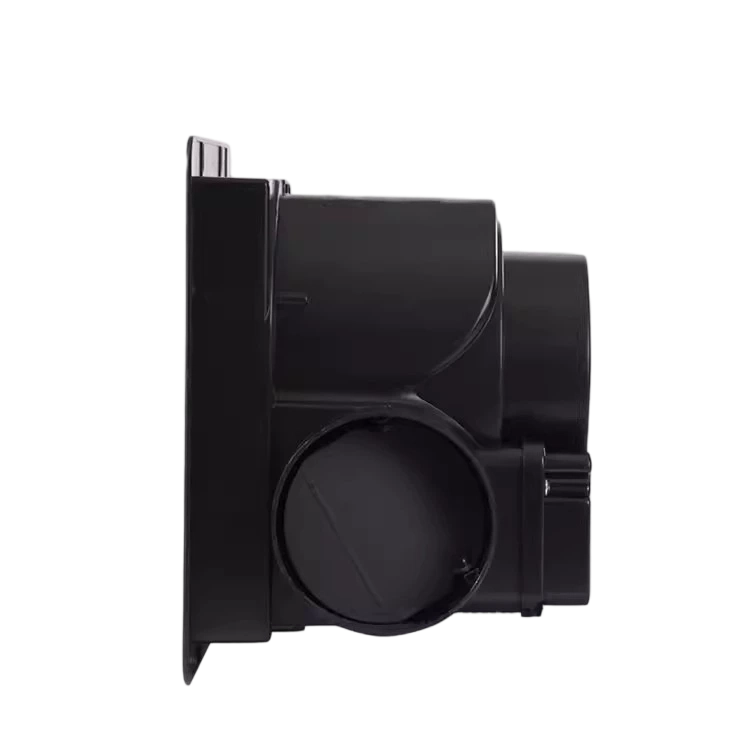

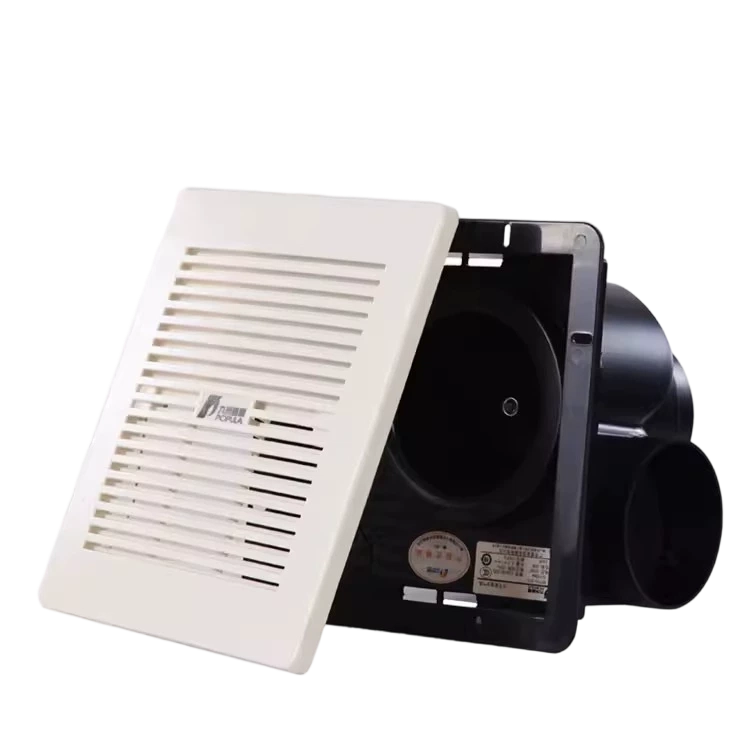

BPT Ceiling Mounted Ventilation Fan

Optimal air duct design. Motor with high-efficiency&long-life ballbearing. Optimized efficiency: suitable for continuousventilation,Application:Ventilation for hotels, shopping malls.places of entertainment and buildings

产数Parameters

Model(Nº)	Power(W)	Voltage(V)	Volume(m³/h)	Staticpressure(Pa)	Usable Area(m²)	Noise dB(A)
BPT10-21S	20	220	150	100	6~12	33
BPT10-24SL	22	220	200	110	8~16	35
BPT10-24SH	25	220	250	120	10~20	39
BPT15-27SL	35	220	300	120	12~24	33
BPT15-27SH	39	220	380	150	15~30	37
BPT15-32S	40/35	220	550/450	150/120	18~44	42/37

尺寸siz

线图Technical Illustration

Get a quote

Not sure which model you need? Leave it to us.

You don’t need to provide precise airflow or static pressure data. Simply share the ventilation challenges you’re facing—such as workshop size, temperature conditions, or dust levels—and our engineers will handle all the complex calculations and model selection for you. Start a relaxed, no-obligation initial consultation today.
