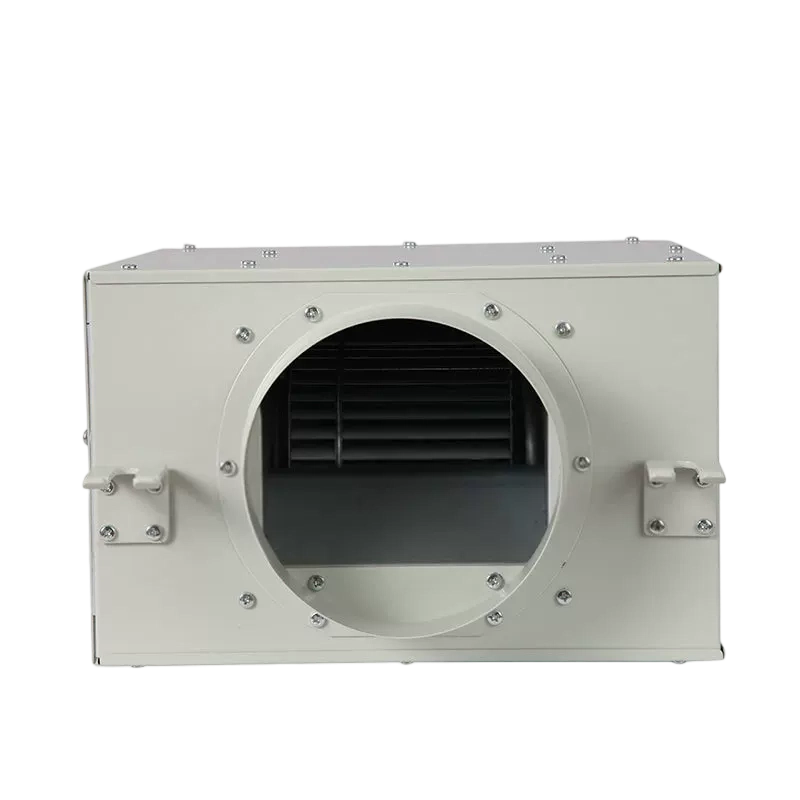

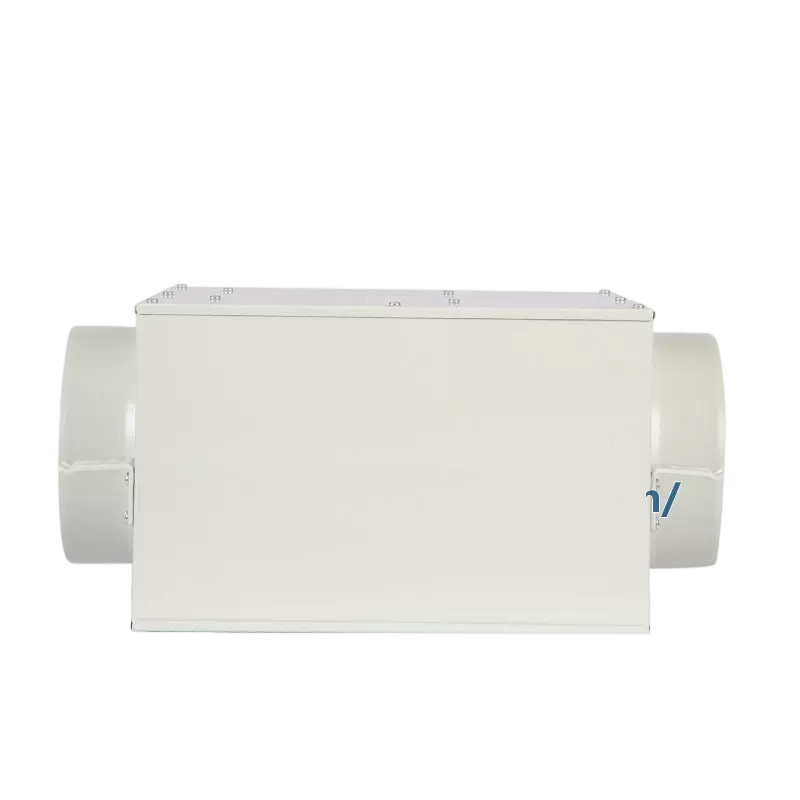

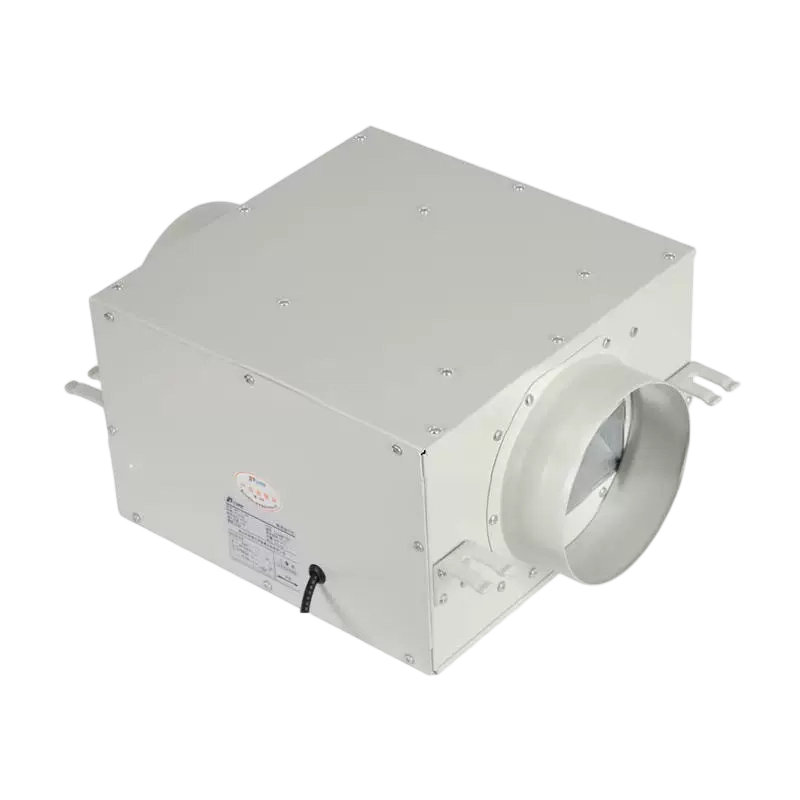

JYF series Low Noise Fan
The JYF series Low Noise Fan is expertly engineered to deliver powerful ventilation without the disruptive sound. As a direct source manufacturer, we guarantee a high-quality build that meets the strict demands of modern commercial spaces.
Core Features of the JYF series Low Noise Fan
Based on the reliable casing of the GDF duct fan, this series introduces significant process improvements to enhance overall durability and efficiency.
- High Performance & Low Noise: Specifically engineered to maintain a large air volume while keeping operational noise to an absolute minimum.
- Compact Profile: It is designed to make the size smaller, making it incredibly easy to install in areas where space is limited.
Applications: Thanks to its quiet operation and compact size, the JYF series Low Noise Fan is mainly used in quiet environments like office buildings, shopping malls, and hotels.
Parameters
| Model(Nº) | Voltage(V) | Power(W) High | Power(W) Low | Rotation(r/min) High | Rotation(r/min) Low | Volume(m³/h) High | Volume(m³/h) Low | Static Pressure(Pa) High | Static Pressure(Pa) Low | Noise dB(A) High | Noise dB(A) Low |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JYF1.0L-100 | 220 | 17 | / | 1320 | / | 116 | / | 84 | / | 18 | / |
| JYF1.0H-100 | 220 | 36 | / | 2100 | / | 230 | / | 165 | / | 21 | / |
| JYF1.2-150 | 220 | 45 | / | 1320 | / | 368 | / | 136 | / | 27 | / |
| JYF1.5-150 | 220 | 90 | / | 1380 | / | 528 | / | 182 | / | 32 | / |
| JYF1.8-200 | 220 | 135 | 90 | 1400 | 1220 | 780 | 680 | 245 | 186 | 34 | 31 |
| JYF2.0-200 | 220 | 175 | 115 | 1400 | 1220 | 950 | 830 | 285 | 216 | 36 | 32 |
| JYF2.3-200 | 220 | 230 | 155 | 1400 | 1220 | 1220 | 1060 | 390 | 298 | 41 | 38 |
| JYF2.5L-250 | 220 | 250 | 180 | 1050 | 940 | 1720 | 1540 | 340 | 275 | 42 | 39 |
| YF2.5H-250 | 220 | 400 | 260 | 1420 | 1230 | 2150 | 1865 | 490 | 370 | 45 | 42 |
siz
Technical Illustration
