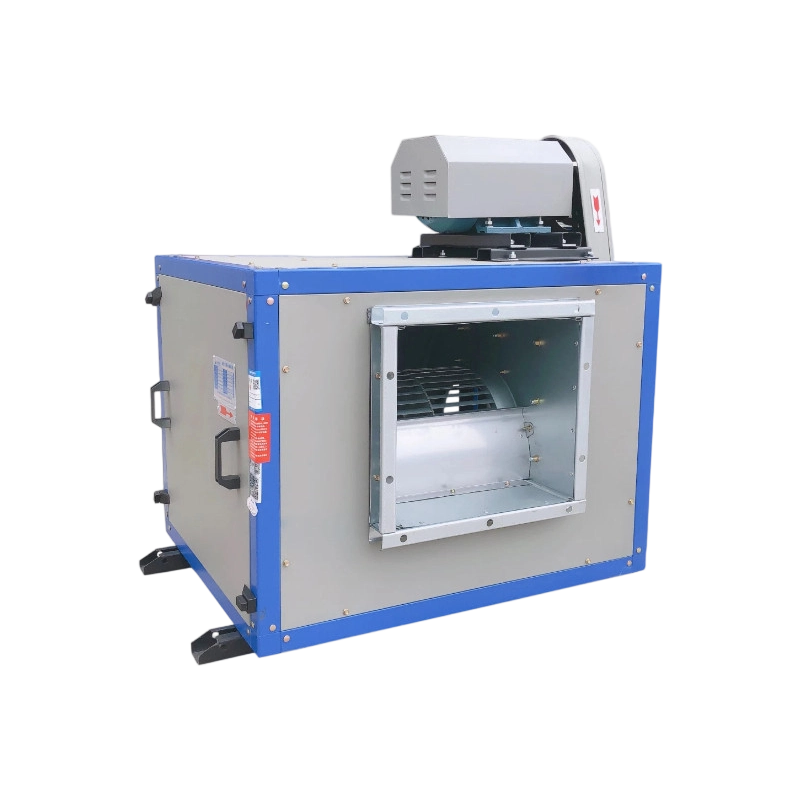

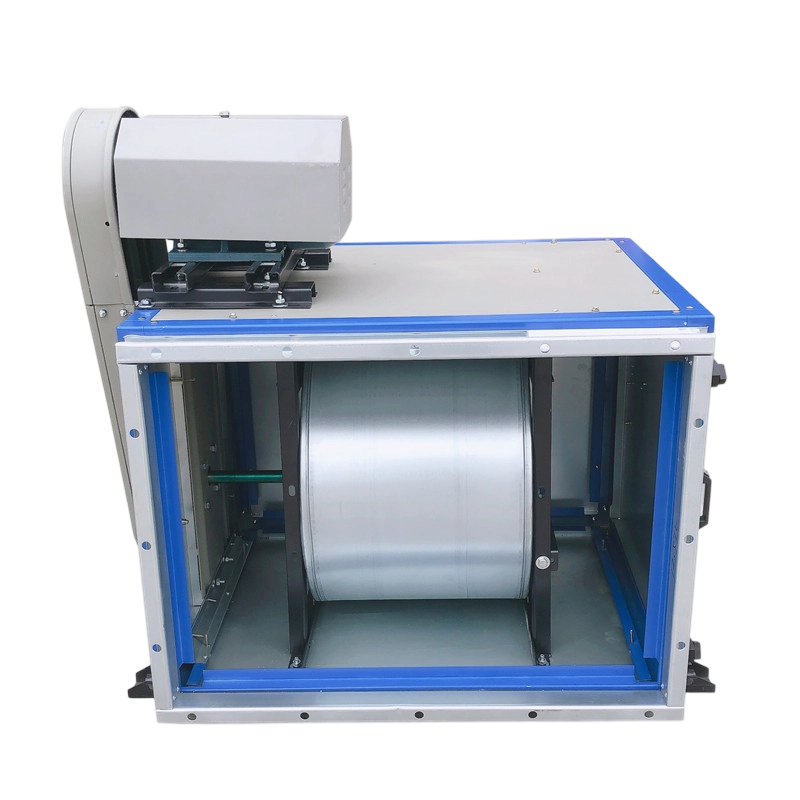

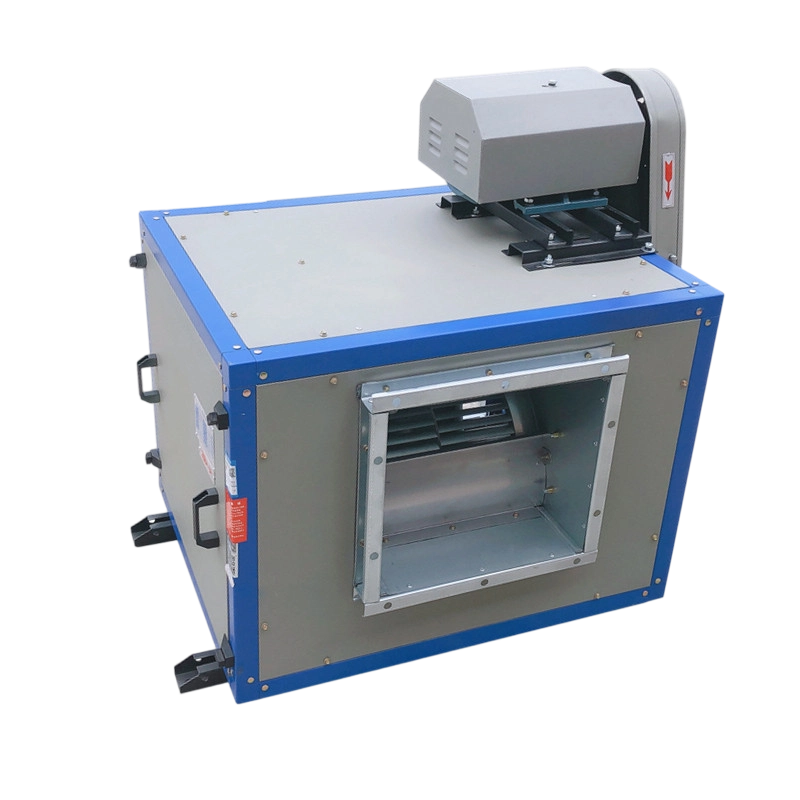

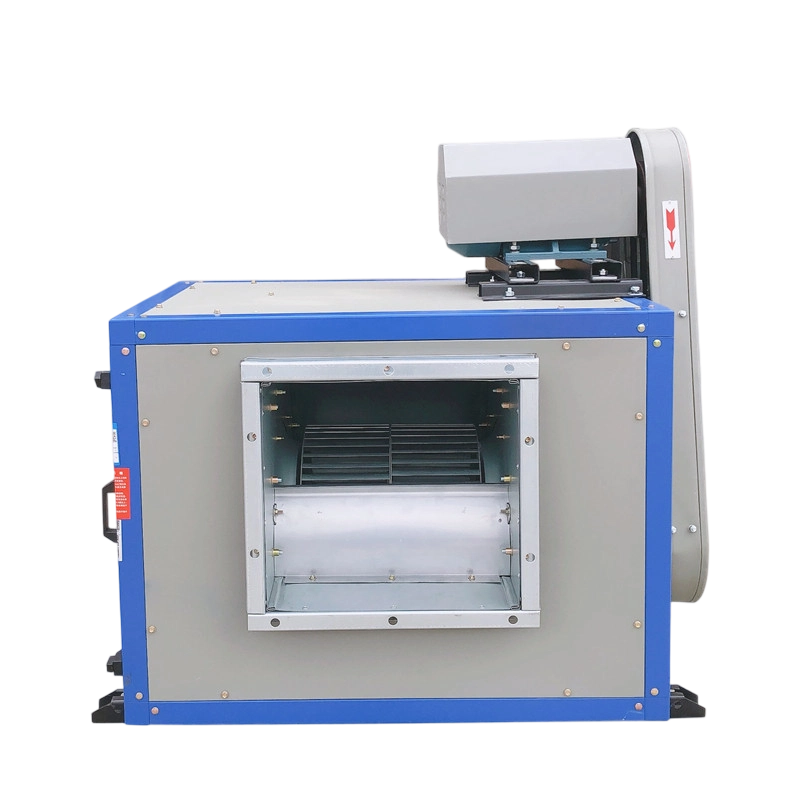

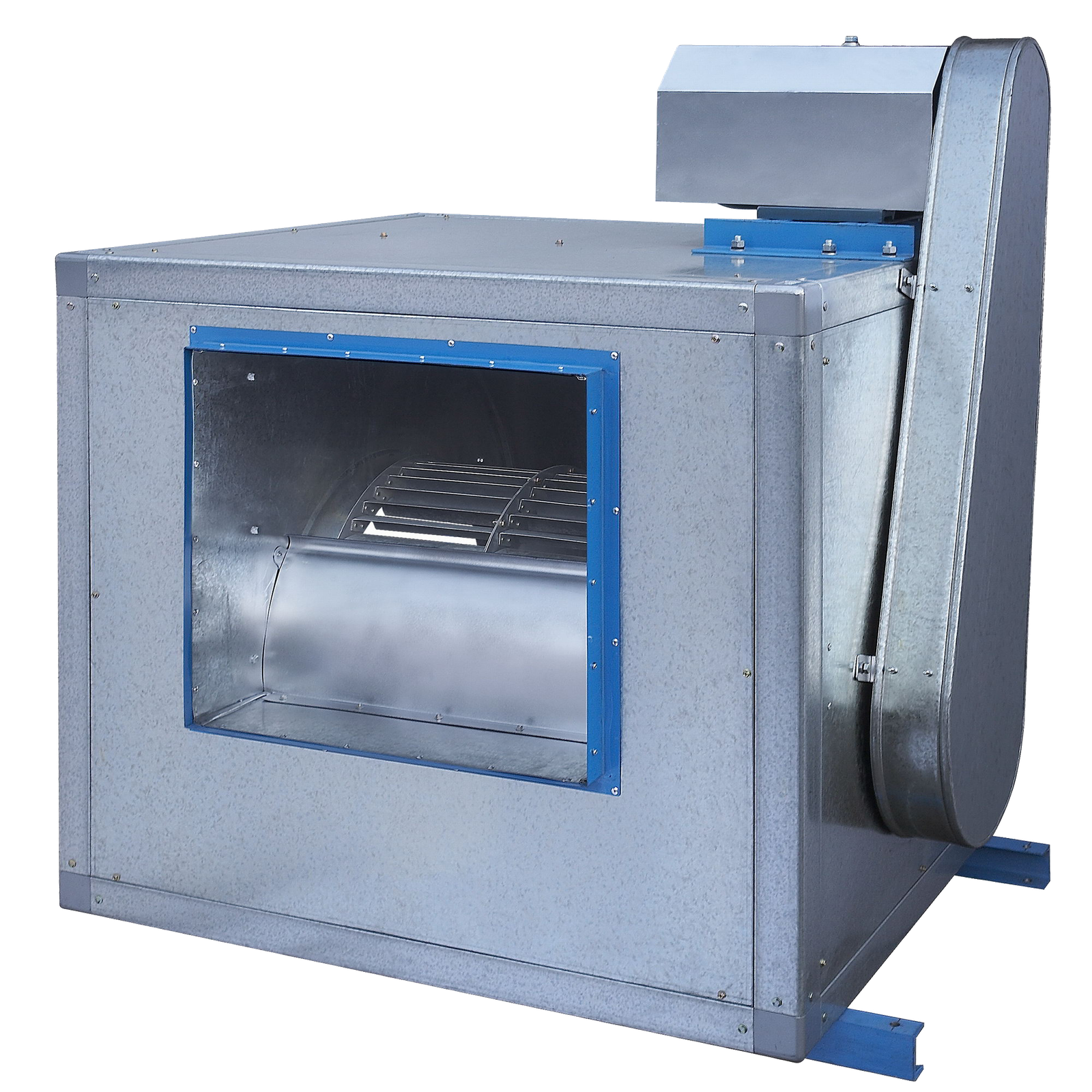

HTFC Centrifugal fire exhaust fan

HTFC widely used for fire control and ventilation in places such ashotels,coliseum, schools,restaurants, cinemas, halls,high-class residences and mining industries Two series are also fit for air-condition system and environmental purificationsystem. The transporting medium is air or other non-explosive-combustion air with no harm to human. The air
transferred shall not contain any adhesive material, dust and grain and the concentration shall not exceed 150 mg/m², with the temperature no higher than 80°℃.
When the HTFC series are used for fire control, the fans can run more than 30 minutes continually under the condition that the air and smoke temperature is at 280°C.

产数Parameters

HTFC-I Single speed series

Model(No.)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Staticpressure(Pa)
HTFC-I-9-III	0.55	900	1328~3171	218~209	198~154
HTFC-I-9-II	0.75	1000	1476~3524	269~259	245~190
HTFC-I-9-I	1.1	1200	2346~4670	378~361	343~223
HTFC-I-9	1.5	1400	2736~5448	514~491	457~304
HTFC-I-9	2.2	1630	3398~6317	565~370	510~339
HTFC-I-10-III	0.75	900	2422~3905	215~151	190~101
HTFC-I-10-II	1.1	1000	2691~4339	256~186	234~108
HTFC-I-10-I	1.5	1200	3299~5207	381~265	338~155
HTFC-I-10	2.2	1400	3768~6075	520~365	460~211
HTFC-I-10	3	1630	3937~7919	709~600	635~515
HTFC-I-12-III	1.1	800	3221~6025	251~195	224~106
HTFC-I-12-II	1.5	900	2623~6778	315~247	285~135
HTFC-I-12-I	2.2	1120	4288~8021	488~407	414~367
HTFC-I-12	3	1250	5033~9414	610~475	549~260
HTFC-I-12	4	1430	5579~10633	809~660	730~596
HTFC-I-15-III	1.5	700	4934~8676	242~200	211~103
HTFC-I-15-II	2.2	820	5780~10164	332~273	288~160
HTFC-I-15-I	3	930	6526~10977	455~337	400~295
HTFC-I-15	4	1130	6815~11658	670~607	588~434
HTFC-I-15	5.5	1250	7330~12422	920~835	820~665
HTFC-I-18-III	2.2	600	6854~12375	283~203	240~109
HTFC-I-18-II	3	720	8150~14507	393~242	332~149
HTFC-I-18-I	4	820	9404~16738	441~272	440~200
HTFC-I-18	5.5	1000	10355~17056	752~385	687~218
HTFC-I-18	7.5	1100	10745~18766	920~550	840~330
HTFC-I-20-III	3	560	7343~15390	289~216	272~140
HTFC-I-20-II	4	610	8412~17628	378~283	356~184
HTFC-I-20-I	5.5	720	9613~20146	495~370	465~240
HTFC-I-20	7.5	850	10815~22737	758~645	633~356
HTFC-I-20	11	950	12563~28454	938~787	801~426
HTFC-I-22-III	4	550	11528~22666	335~218	307~110
HTFC-I-22-II	5.5	650	13624~26787	467~305	428~153
HTFC-I-22-I	7.5	720	16831~29672	607~373	525~187
HTFC-I-22	11	880	18706~33021	802~475	787~276
HTFC-I-22	15	950	19707~35983	1005~708	953~455
HTFC-I-25-IV	5.5	520	17107~27831	345~243	307~170
HTFC-I-25-III	7.5	650	19081~31042	430~303	383~215
HTFC-I-25-II	11	720	21713~35324	680~518	606~358
HTFC-I-25-I	15	760	22473~37205	840~671	763~502
HTFC-I-25	18.5	800	23656~42377	921~650	846~407
HTFC-I-25	22	860	27012~46720	1142~758	1047~480
HTFC-I-28-IV	7.5	500	21203~33778	393~355	351~275
HTFC-I-28-III	11	560	24321~38745	523~468	462~366
HTFC-I-28-II	15	650	27439~43712	625~590	588~460
HTFC-I-28-I	18.5	720	30557~48680	825~590	729~578
HTFC-I-28	22	800	33675~53647	990~897	886~702
HTFC-I-28	30	900	37417~57608	1224~1108	1094~866
HTFC-I-30-IV	11	500	24938~35334	494~426	450~360
HTFC-I-30-III	15	560	27931~39574	620~535	564~450
HTFC-I-30-II	18.5	600	29926~48202	723~614	647~516
HTFC-I-30-I	22	680	32420~52219	835~720	760~605
HTFC-I-30	30	750	33601~63015	1177~825	1107~691
HTFC-I-30	37	820	35129~66906	1425~986	1387~765
HTFC-I-33-V	11	400	30006~46447	366~303	318~208
HTFC-I-33-IV	15	450	34397~53244	481~398	418~273
HTFC-I-33-III	18.5	500	36592~56642	545~451	473~309
HTFC-I-33-II	22	550	38788~60041	612~506	532~347
HTFC-I-33-I	30	600	43179~66838	760~628	660~430
HTFC-I-33	37	650	47716~73562	927~766	804~525
HTFC-I-33	45	700	51533~79770	1084~896	940~638
HTFC-I-36-V	15	350	31926~52079	360~286	317~217
HTFC-I-36-IV	18.5	400	36487~59519	468~374	414~283
HTFC-I-36-III	22	450	41048~66959	593~474	524~359
HTFC-I-36-II	30	500	45608~74399	732~585	647~443
HTFC-I-36-I	37	550	50169~81839	886~707	783~536
HTFC-I-36	45	600	54730~89278	1054~842	932~638
HTFC-I-36	55	650	57801~100902	1289~815	1129~442
HTFC-I-40-V	30	430	52453~93220	663~438	572~378
HTFC-I-40-IV	37	480	58552~104060	827~546	747~493
HTFC-I-40-III	45	520	63431~112731	970~641	877~579
HTFC-I-40-II	55	580	70750~125738	1207~797	1091~720
HTFC-I-40-I	75	620	75629~134410	1379~910	1247~822
HTFC-I-40	90	680	82948~147417	1659~1096	1500~990
HTFC-I-44-V	37	400	75176~120135	809~460	796~447
HTFC-I-44-IV	45	430	80814~129146	935~532	920~517
HTFC-I-44-III	55	480	90211~144163	1165~663	1146~644
HTFC-I-44-II	75	530	99608~159180	1420~808	1397~785
HTFC-I-44-I	90	560	105246~168190	1585~902	1560~876
HTFC-I-44	110	600	112764~180203	1820~1035	1791~1005

HTFC- IlDouble speed series

Model	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static pressure(Pa)
HTFC-II-12-I	2.5/0.9	1050	4227~7908	430~335	387~183
HTFC-II-12-I	2.5/0.9	700	2818~5271	191~149	172~100
HTFC-II-12	3.2/1.1	1250	5033~9414	610~475	549~260
HTFC-II-12	3.2/1.1	830	3355~6276	271~211	243~116
HTFC-II-15-I	4.7/1.5	1050	7613~13386	574~473	501~245
HTFC-II-15-I	4.7/1.5	700	5075~8924	256~210	222~109
HTFC-II-15	6.7/2.2	1250	8811~15493	770~635	670~328
HTFC-II-15	6.7/2.2	830	5871~10329	342~281	298~146
HTFC-II-18-I	6.7/2.2	900	10259~18260	615~441	524~236
HTFC-II-18-I	6.7/2.2	600	6840~12173	274~196	233~105
HTFC-II-18	9.5/3.1	1050	11969~21303	838~600	714~321
HTFC-II-18	9.5/3.1	700	7979~14202	372~268	317~143
HTFC-II-20-I	6.7/2.2	800	10681~22385	610~456	574~295
HTFC-II-20-I	6.7/2.2	530	7121~14923	272~202	255~131
HTFC-II-20	9.5/3.1	900	12017~25183	773~578	727~374
HTFC-II-20	9.5/3.1	600	8011~16789	344~257	323~166
HTFC-II-20	12/4	950	12736~26692	865~646	814~419
HTFC-II-20	12/4	650	8651~20071	402~257	378~128
HTFC-II-22-I	9.5/3.1	800	16768~32969	708~460	649~231
HTFC-II-22-I	9.5/3.1	530	11179~21979	315~205	288~103
HTFC-II-22	12/4	900	18864~37090	895~582	820~292
HTFC-II-22	12/4	600	12576~24727	398~259	365~130
HTFC-II-22	15.5/5.1	950	18907~39167	1057~611	908~308
HTFC-II-22	15.5/5.1	630	13643~26827	470~306	429~154
HTFC-II-25-I	15.5/5.1	720	23687~38535	661~467	590~329
HTFC-II-25-I	15.5/5.1	480	15791~25689	294~207	262~146
HTFC-II-25	18/6.2	830	27305~44422	879~620	783~437
HTFC-II-25	18/6.2	550	18203~29614	390~275	347~194
HTFC-II-25-II	24/8.5	870	29554~46085	1088~768	1001~480
HTFC-II-25-II	24/8.5	570	19659~31983	456~321	407~226
HTFC-II-28-II	18/6.2	660	30680~49448	666~506	578~265
HTFC-II-28-II	18/6.2	440	20453~32965	296~225	257~118
HTFC-II-28-I	24/8.5	720	33934~52527	814~674	707~461
HTFC-II-28-I	24/8.5	480	22623~35018	362~300	314~205
HTFC-II-28	33/11	800	38582~59723	1053~871	914~597
HTFC-II-28	33/11	530	25722~39815	468~387	406~265
HTFC-II-30-II	24/8.5	650	35196~60535	840~589	750~390
HTFC-II-30-II	24/8.5	430	23464~40357	373~262	333~173
HTFC-II-30-I	33/11	720	38986~68055	1030~665	920~435
HTFC-II-30-I	33/11	480	25991~44703	458~321	408~212
HTFC-II-30	38/13	820	44805~73089	1407~785	1325~765
HTFC-II-30	38/13	540	29870~48726	549~381	517~267
HTFC-II-33-I	33/11	640	51305~72502	883~735	742~506
HTFC-II-33-I	33/11	425	34303~48335	392~328	330~225
HTFC-II-33	38/13	700	56115~79299	1056~883	887~605
HTFC-II-33	38/13	465	37410~52866	469~393	394~269
HTFC-II-36-I	38/13	540	50169~81839	886~707	783~536
HTFC-II-36-I	38/13	360	33640~54875	402~309	354~242
HTFC-II-36	47/16	600	54730~89299	1054~883	932~605
HTFC-II-36	47/16	400	36487~59519	468~374	414~283

尺寸siz

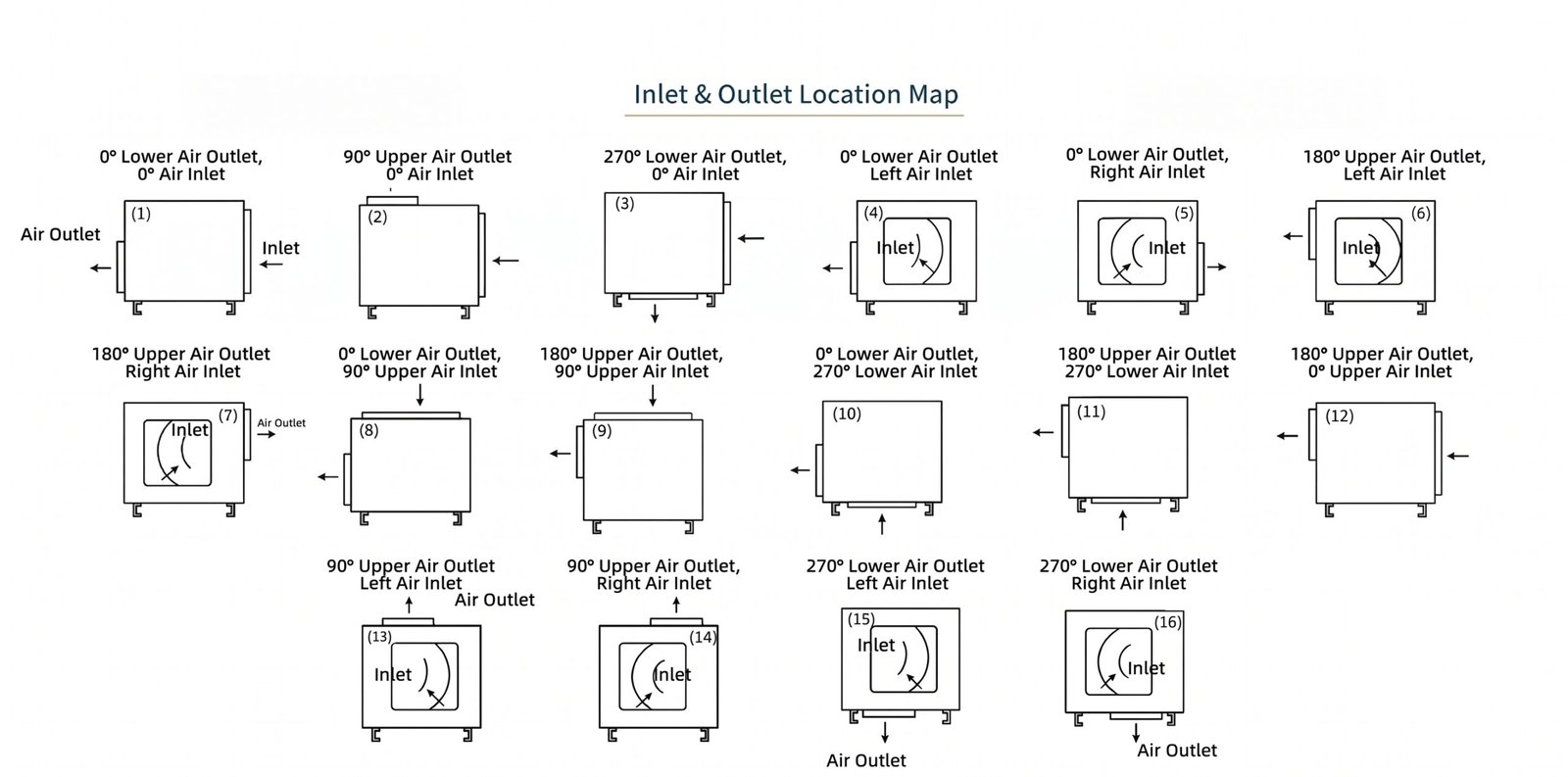

线图Technical Illustration
