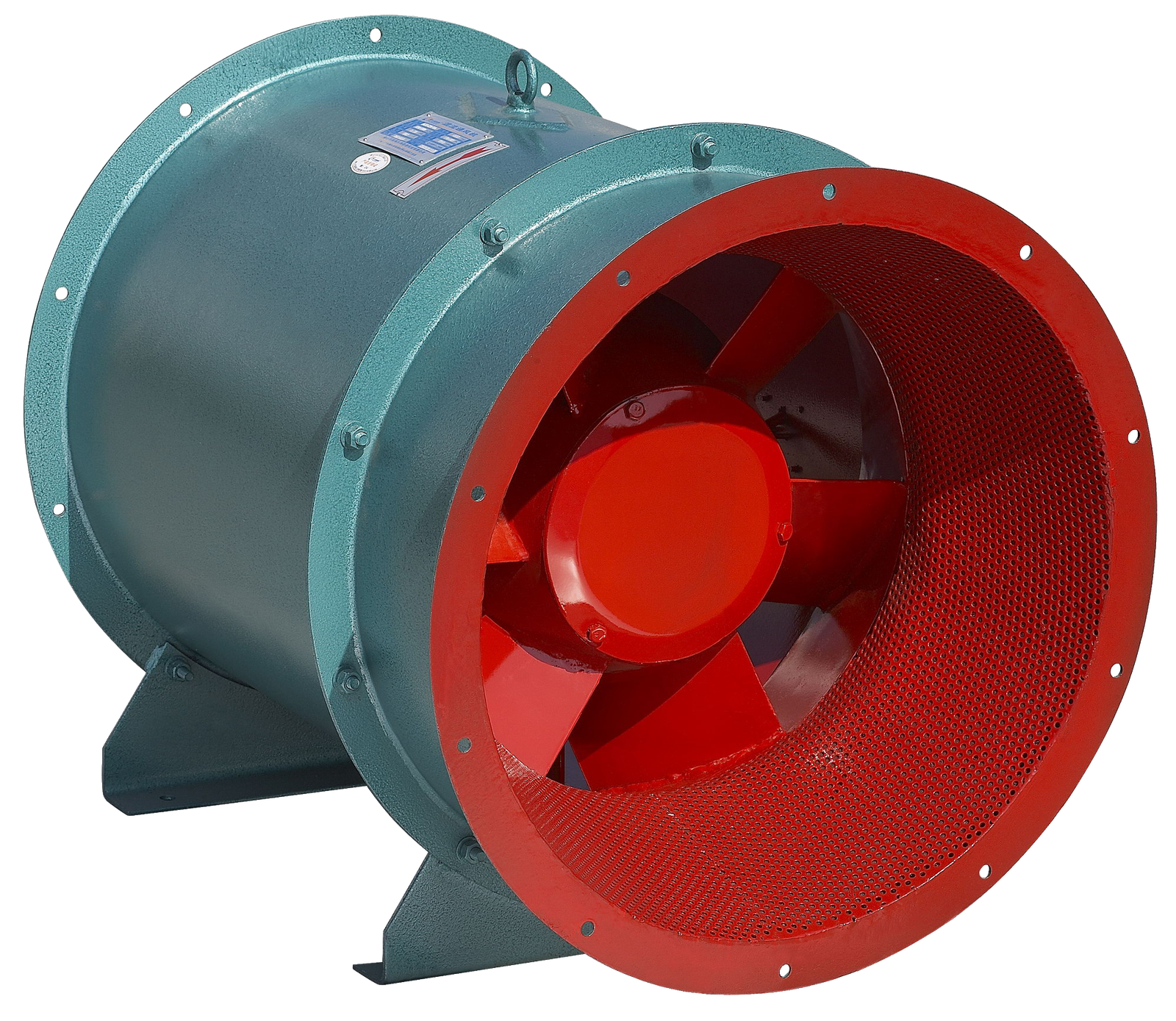

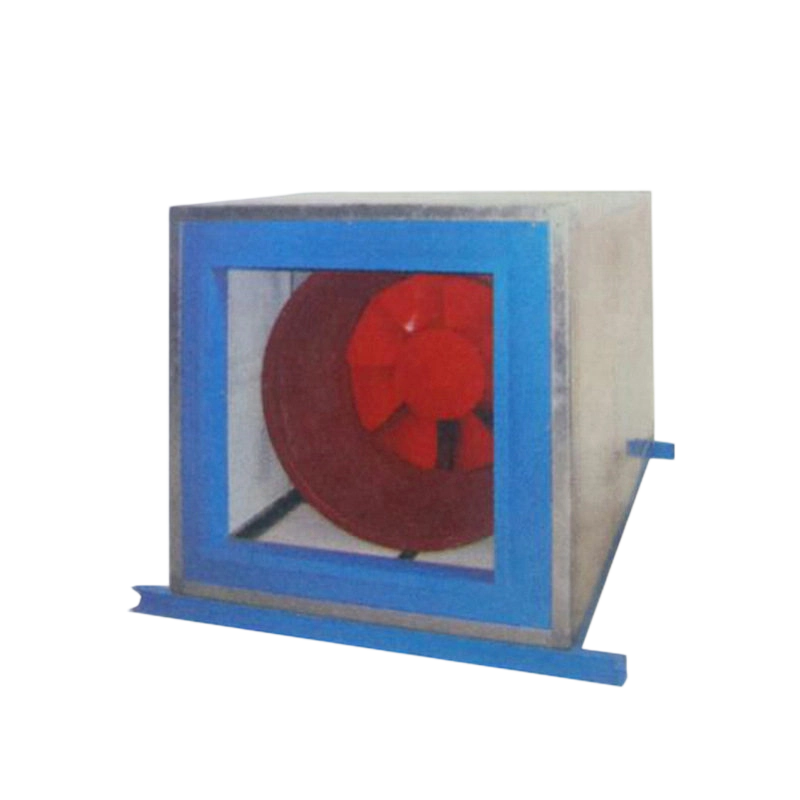

HL3-2A/HLF-6 mixed flow fan

HL3-2AHLF-6 mixed flow fan is a new kind of fan between an axial fan and a centrifugal fan. The product is featured by new design, compact structure,small size, light weight, high efficiency, high pressure, low noise, easyinstallation, etc. It can take place of the low and middle pressure centrifugal fans under 200oPa, and is widely used to transport air and remove dust inindustrial, civil buildings.

产数Parameters

Model(No)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Staticpressure(Pa)
4.0A	0.37	380	2900	2136~3056	1331~865	1182~585
4.5A	0.55	380	2900	2685~4028	1607~906	1529~718
4.5A	0.75	380	1450	1080~1650	406~245	358~178
5.0A	1.1	380	2900	4366~5708	1440~1119	1301~825
5.0A	1.5	380	1450	1820~2500	440~315	376~220
6.0A	2.2	380	2900	6438~8010	1629~1215	1466~931
6.0A	3	380	1450	3220~4200	480~320	400~250
6.5A	3	380	2900	8065~9805	1802~1319	1633~1024
6.5A	4	380	1450	4050~5200	520~380	450~300
7.0A	4	380	2900	9856~12543	2022~1519	1820~1218
7.0A	5.5	380	1450	4950~6600	620~425	500~350
7.5A	5.5	380	2900	13417~15250	1622~1118	1462~825
7.5A	7.5	380	1450	6750~8250	680~480	570~405
8.0A	7.5	380	2900	15401~20528	2021~1525	1755~1155
8.5A	11	380	1450	8750~11880	740~625	620~485
9.0A	11	380	2900	15401~20528	2021~1525	1825~1355
9.0A	15	380	1450	10875~15125	805~645	700~505
10A	15	380	2900	23761~28452	1681~1205	1510~995
10A	18.5	380	1450	13125~17500	870~725	750~585
11A	22	380	1450	16227~21146	951~805	800~655
12A	30	380	970	20000~27000	650~525	550~405
12.5A	18.5	380	970	23581~29615	590~415	505~325
12.5A	30	380	1450	18750~26250	861~760	720~475
12.5A	37	380	970	27031~30568	416~363	289~210

尺寸siz

线图Technical Illustration
