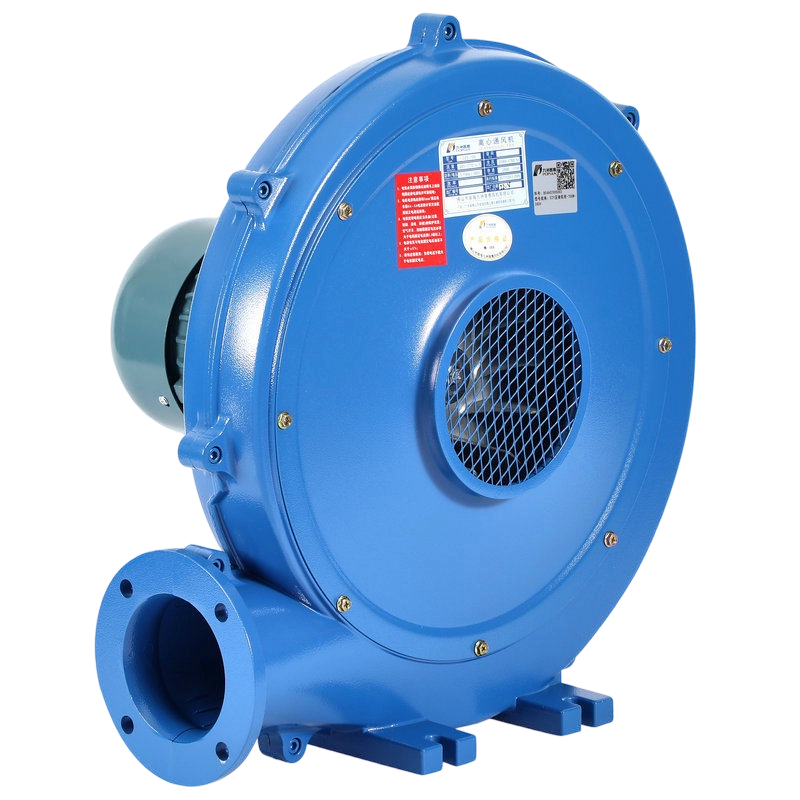

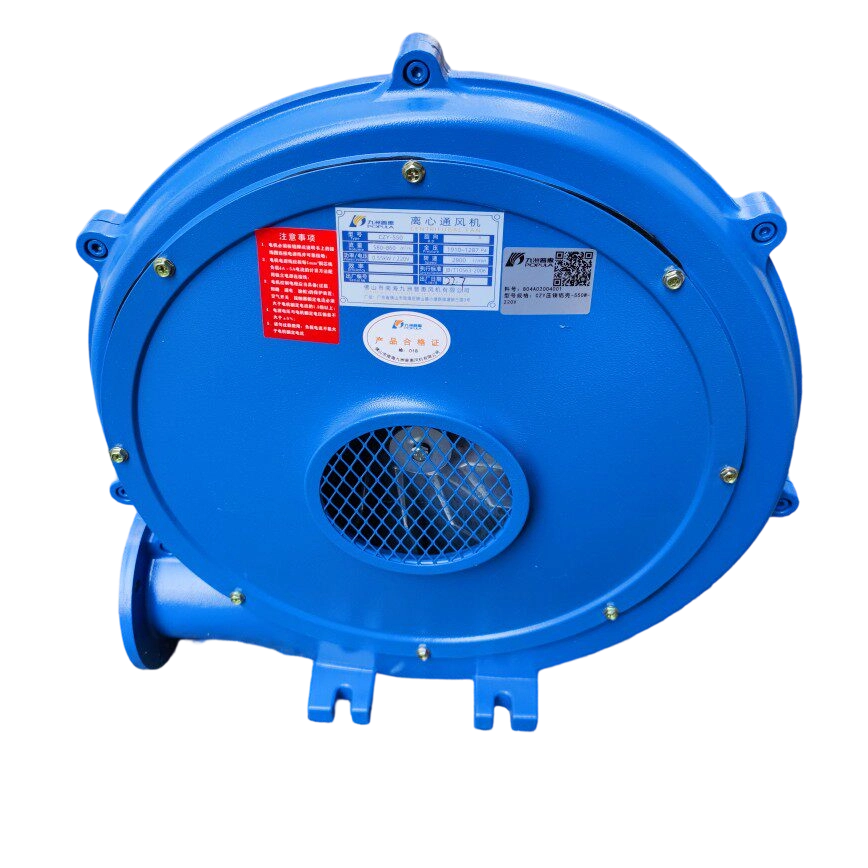

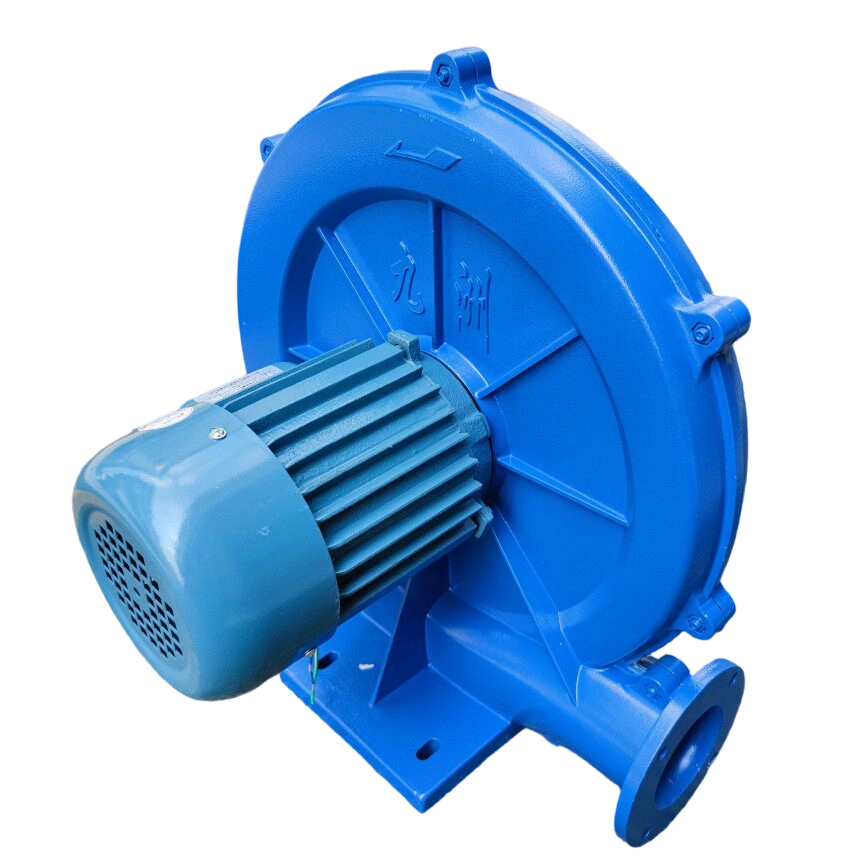

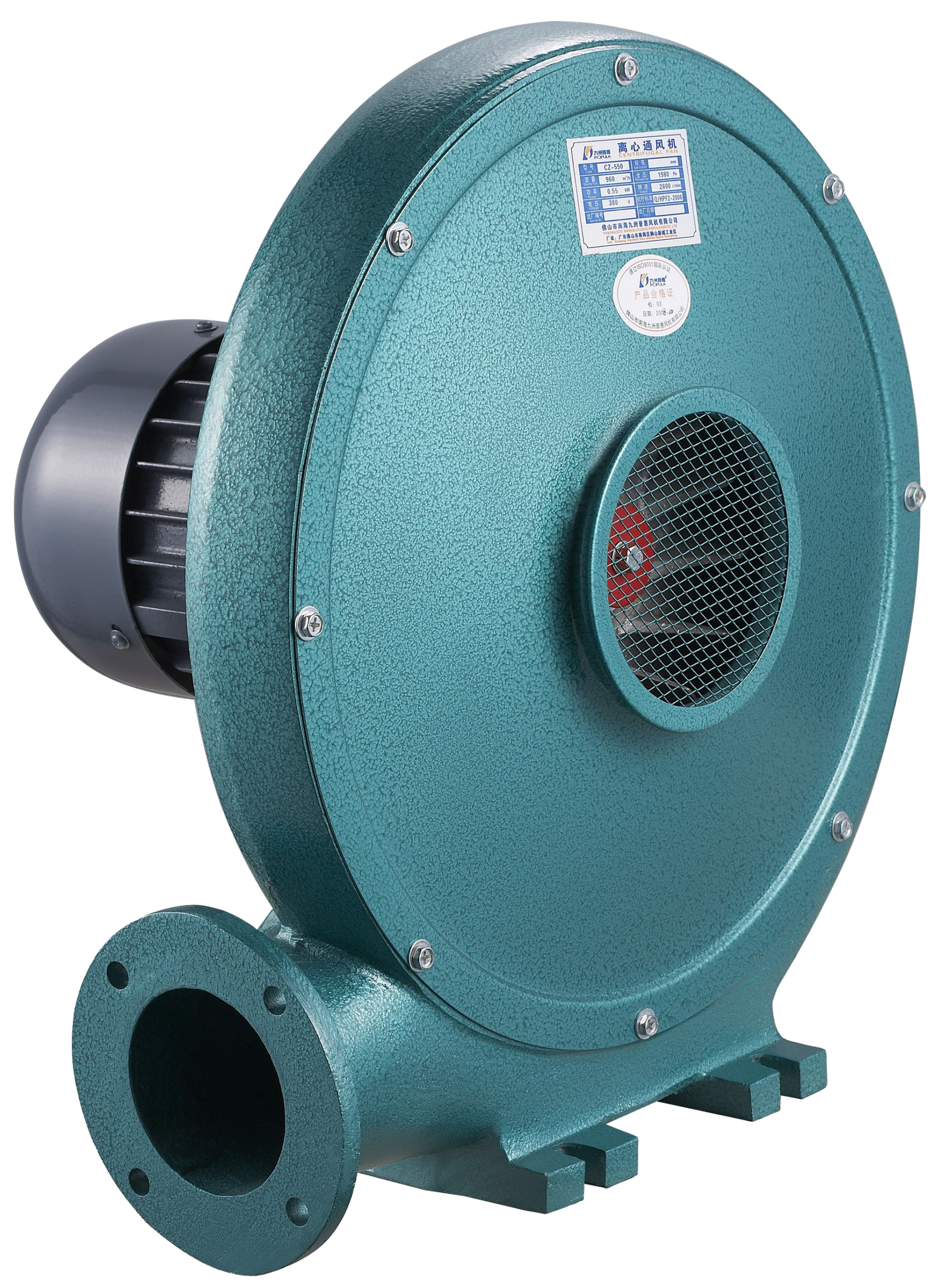

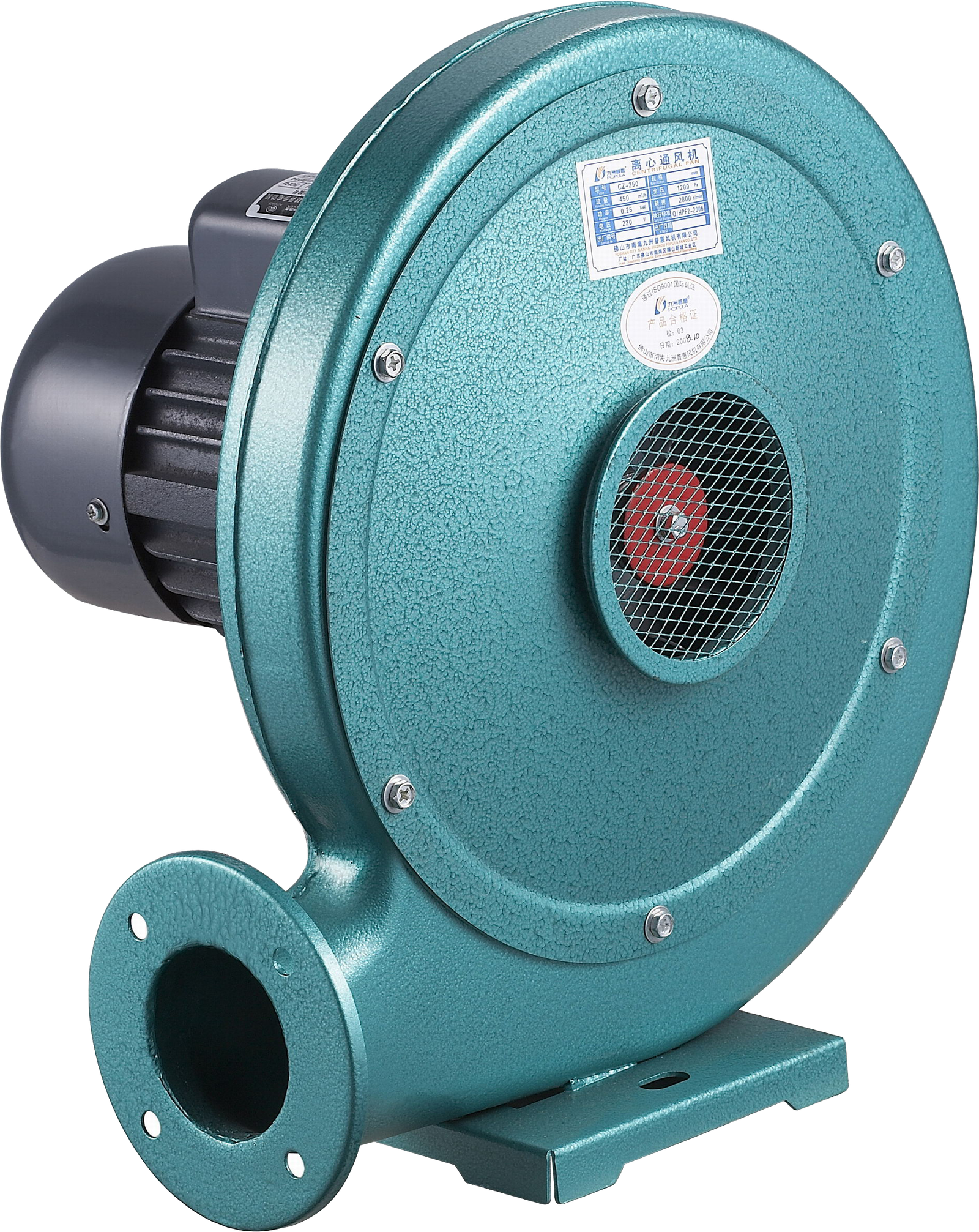

CZ middle pressure centrifugal fan
CZ series adopt the centrifugal structure, Classified by outer casing and impeller,the series can be divided into two types. CZ aluminum alloy type and CZ-T rolling plate stamping type.Featured by light weight, new pattern, large air flow and lownoise, this series are used in some industrial devices to blow air,such assmelting diesel vaporization heater matching, kitchen equipment, pneumatic compressionfacilities, industrial boilers, plastics machinery.
产数Parameters
CZ Series
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| 180W | 0.18 | 220/380 | 2800 | 107~362 | 939~743 |
| 250W | 0.25 | 220/380 | 2800 | 174~389 | 943~679 |
| 370W | 0.37 | 220/380 | 2800 | 351~629 | 1696~1373 |
| 550W | 0.55 | 220/380 | 2800 | 201~650 | 1746~1295 |
| 750W | 0.75 | 0.75 | 2800 | 413~969 | 1790~1173 |
| 900W | 0.9 | 220/380 | 2800 | 742~1045 | 1820~1584 |
CZY Series
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| CZY-180 | 0.18 | 220/380 | 2800 | 115~390 | 940~721 |
| CZY-250 | 0.25 | 220/380 | 2800 | 165~410 | 1044~743 |
| CZY-370 | 0.37 | 220/380 | 2800 | 342~630 | 1748~1295 |
| CZY-550 | 0.55 | 220/380 | 2800 | 580~860 | 1910~1287 |
| CZY-750 | 0.75 | 220/380 | 2800 | 685~1170 | 2080~1760 |
| CZY-900 | 0.9 | 220/380 | 2800 | 821~1320 | 2140~1967 |
| CZY-1100 | 1.1 | 220/380 | 2800 | 742~1404 | 2180~1870 |
| CZY-I-1500 | 1.5 | 220 | 2900 | 870~1750 | 2210~1475 |
| CZY-I-1500 | 1.5 | 380 | 2900 | 870~1750 | 2210~1475 |
| CZY-II-1500 | 1.5 | 220 | 2900 | 870~1750 | 2210~1475 |
| CZY-II-1500 | 1.5 | 380 | 2900 | 870~1750 | 2210~1475 |
| CZY-I-2200 | 2.2 | 220 | 2900 | 1020~1790 | 2330~1580 |
| CZY-I-2200 | 2.2 | 380 | 2900 | 1020~1790 | 2330~1580 |
| CZY-II-2200 | 2.2 | 220 | 2900 | 1020~1790 | 2330~1580 |
| CZY-II-2200 | 2.2 | 380 | 2900 | 1020~1790 | 2330~1580 |
| CZY-I-3000 | 3 | 380 | 2900 | 1500~2480 | 2830~1995 |
| CZY-II-3000 | 3 | 380 | 2900 | 1500~2480 | 2830~1995 |
| CZY-I-4000 | 4 | 380 | 2900 | 1600~3028 | 3545~2995 |
| CZY-II-4000 | 4 | 380 | 2900 | 1600~3028 | 3545~2995 |
尺寸siz

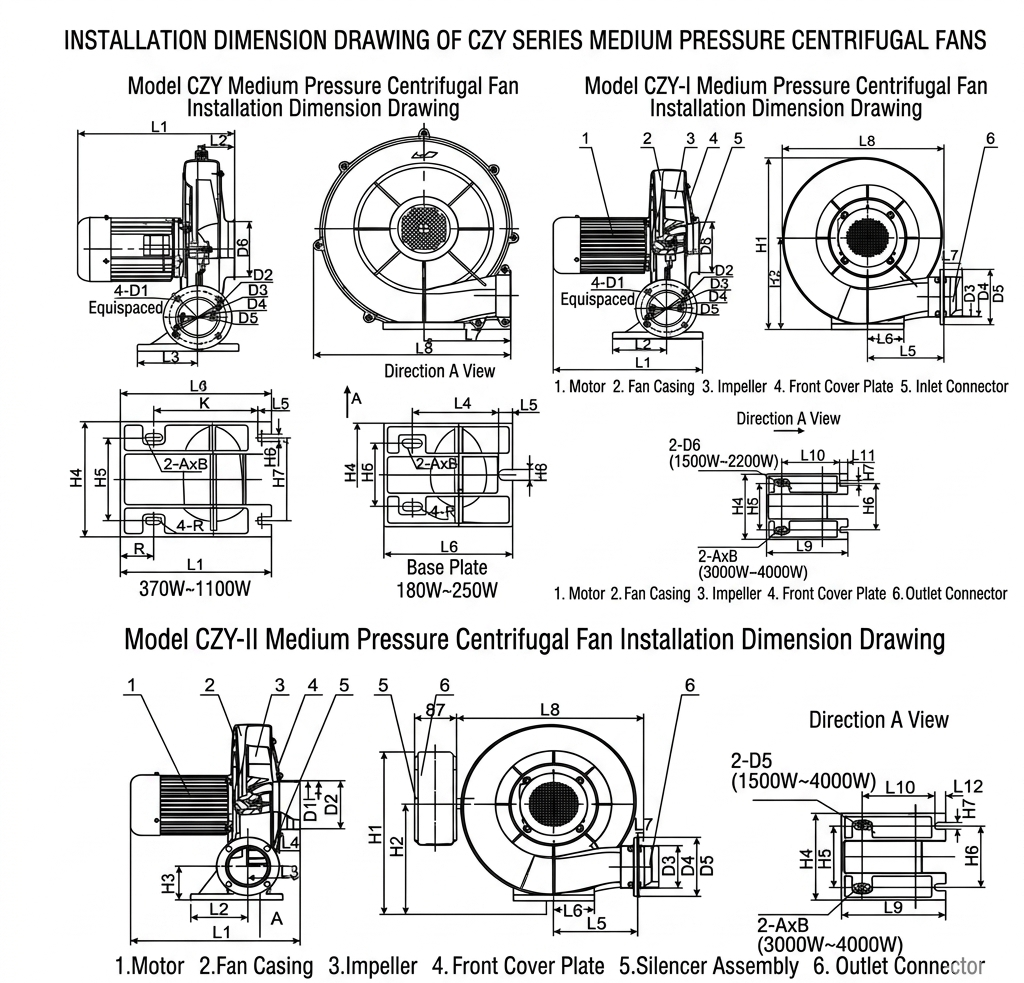

CZY Type Medium Pressure Ventilator Dimension Chart
| Dimension | CZY-180 | CZY-250 | CZY-370 | CZY-550 | CZY-750 | CZY-900 | CZY-1100 |
|---|---|---|---|---|---|---|---|
| L1 | 267.5 | 282.5 | 286 | 306 | 342 (Single-phase)/322 (Three-phase) | 342 | 342 |
| L2 | 56.5 | 56.5 | 71 | 71 | 81 | 81 | 81 |
| L3 | 79 | 79 | 116 | 116 | 132 | 132 | 132 |
| L4 | 90 | 90 | 135 | 135 | 152 | 152 | 152 |
| L5 | 15 | 15 | 20 | 20 | 20 | 20 | 20 |
| L6 | 135 | 135 | 185 | 185 | 220 | 220 | 220 |
| L7 | 162 | 162 | 205 | 205 | 225 | 225 | 225 |
| L8 | 350 | 350 | 440 | 440 | 470 | 470 | 470 |
| H1 | 130 | 130 | 162 | 162 | 160 | 160 | 160 |
| H2 | 185 | 185 | 232 | 232 | 240 | 240 | 240 |
| H3 | 368 | 368 | 457 | 457 | 475 | 475 | 475 |
| H4 | 115 | 115 | 170 | 170 | 182 | 182 | 182 |
| H5 | 70 | 70 | 115 | 115 | 131 | 131 | 131 |
| H6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| H7 | — | — | 115 | 115 | 131 | 131 | 131 |
| D1 | Ø10 | Ø10 | Ø10 | Ø10 | Ø12 | Ø12 | Ø12 |
| D2 | Ø110 | Ø110 | Ø130 | Ø130 | Ø150 | 150 | 150 |
| D3 | Ø93 | Ø93 | Ø110 | Ø110 | Ø125 | 125 | 125 |
| D4 | Ø65 | Ø65 | Ø75 | Ø75 | Ø95 | 95 | 95 |
| D5 | Ø55 | Ø55 | Ø65 | Ø65 | Ø85 | 85 | 85 |
| D6 | Ø100 | Ø100 | Ø110 | Ø110 | Ø130 | 130 | 130 |
| R | R5 | R5 | R5 | R5 | R6 | R6 | R6 |
| A×B | 20×10 | 20×10 | 20×10 | 20×10 | 24×12 | 24×12 | 24×12 |
CZY-I Type Medium Pressure Ventilator Dimension Chart
| Dimension | CZY-I-1500 | CZY-I-2200 | CZY-I-3000 | CZY-I-4000 |
|---|---|---|---|---|
| L1 | 443 | 478 | 515 | 520 |
| L2 | 172 | 172 | 175 | 175 |
| L3 | 145 | 145 | 159 | 159 |
| L4 | 60 | 60 | 64 | 64 |
| L5 | 232 | 232 | 252 | 252 |
| L6 | 117.5 | 117.5 | 120 | 120 |
| L7 | 60 | 60 | 63 | 63 |
| L8 | 565 | 565 | 596 | 596 |
| L9 | 276 | 276 | 280 | 280 |
| L10 | 191 | 191 | 201 | 201 |
| L11 | 30 | 30 | 28 | 28 |
| H1 | 548 | 548 | 573 | 573 |
| H2 | 300 | 300 | 308 | 308 |
| H3 | 95 | 95 | 108 | 108 |
| H4 | 235 | 235 | 240 | 240 |
| H5 | 135 | 135 | 170 | 170 |
| H6 | 162 | 162 | 170 | 170 |
| H7 | 18 | 18 | 20 | 20 |
| D1 | Ø130 | Ø130 | Ø150 | Ø150 |
| D2 | Ø136 | Ø136 | Ø160 | Ø160 |
| D3 | Ø115 | Ø115 | Ø130 | Ø130 |
| D4 | Ø121 | Ø121 | Ø136 | Ø136 |
| D5 | Ø180 | Ø180 | Ø190 | Ø190 |
| D6 | Ø13 | Ø13 | — | — |
| A×B | — | — | 20×40 | 20×40 |
CZY-11 Type Medium Pressure Ventilator Dimension Chart
| Dimension | CZY-II-1500 | CZY-II-2200 | CZY-II-3000 | CZY-II-4000 |
|---|---|---|---|---|
| L1 | 510 | 545 | 598 | 603 |
| L2 | 172 | 172 | 175 | 175 |
| L3 | 216 | 216 | 242 | 242 |
| L4 | 131 | 131 | 147 | 147 |
| L5 | 105 | 105 | 119 | 119 |
| L6 | 232 | 232 | 252 | 252 |
| L7 | 117.5 | 117.5 | 120 | 120 |
| L8 | 60 | 60 | 63 | 63 |
| L9 | 565 | 565 | 596 | 596 |
| L10 | 276 | 276 | 280 | 280 |
| L11 | 191 | 191 | 201 | 201 |
| L12 | 30 | 30 | 28 | 28 |
| H1 | 548 | 548 | 573 | 573 |
| H2 | 300 | 300 | 308 | 308 |
| H3 | 95 | 95 | 108 | 108 |
| H4 | 235 | 235 | 240 | 240 |
| H5 | 135 | 135 | 170 | 170 |
| H6 | 162 | 162 | 170 | 170 |
| H7 | 18 | 18 | 20 | 20 |
| D1 | Ø120 | Ø120 | Ø150 | Ø150 |
| D2 | Ø115 | Ø115 | Ø130 | Ø130 |
| D3 | Ø121 | Ø121 | Ø136 | Ø136 |
| D4 | Ø180 | Ø180 | Ø190 | Ø190 |
| D5 | Ø13 | Ø13 | — | — |
| A×B | — | — | 20×40 | 20×40 |
