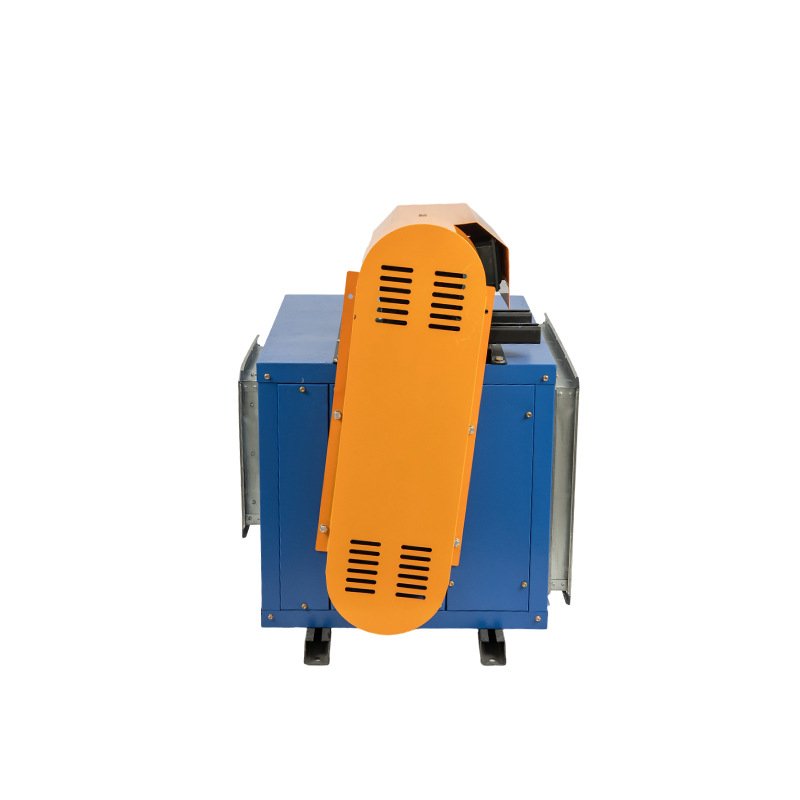

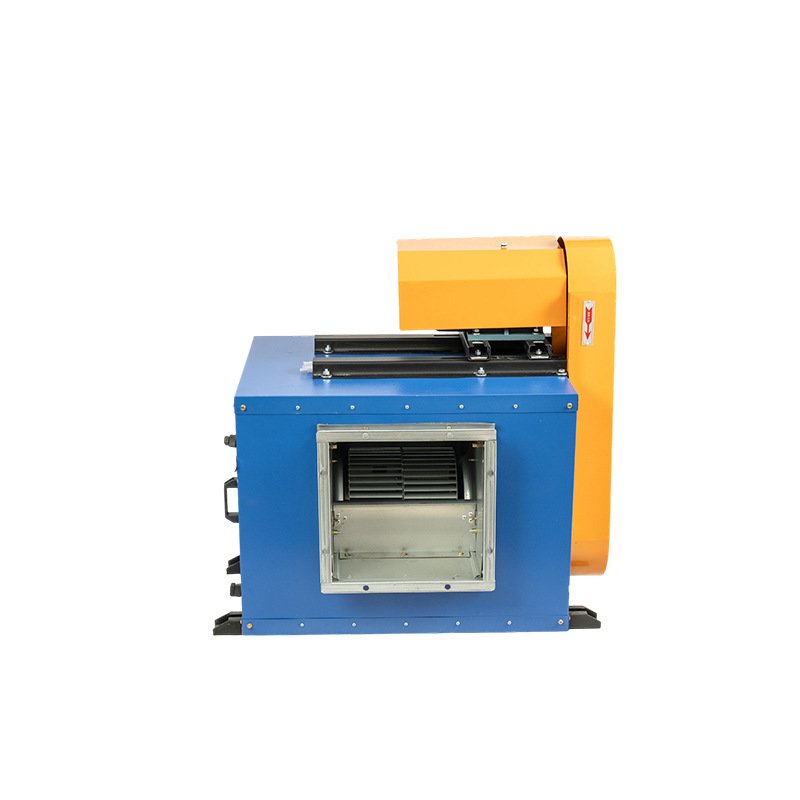

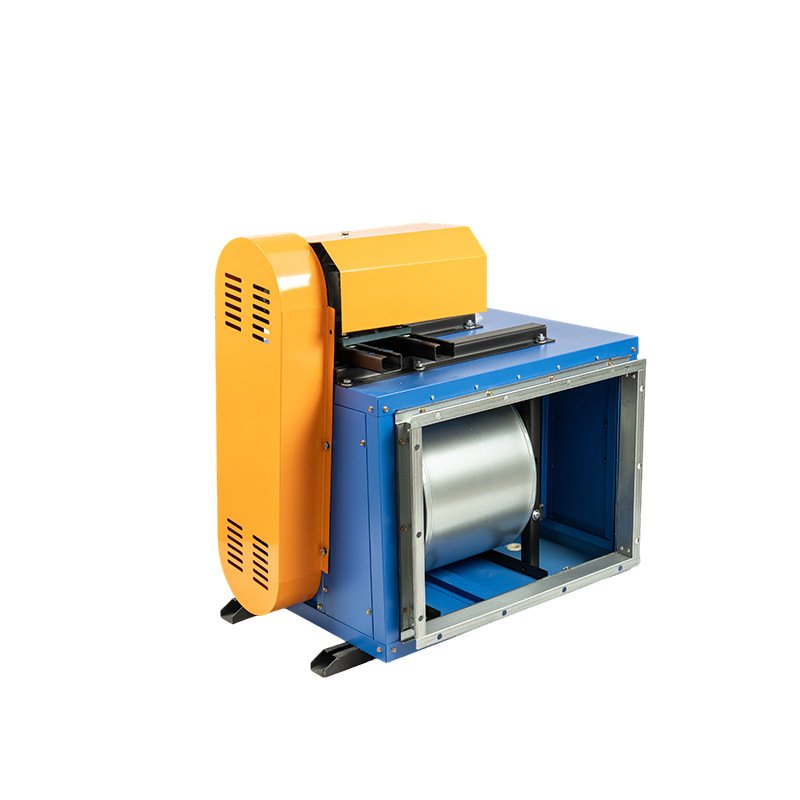

JDT Cabinet type centrifugalfan
JDT Cabinet type centrifugal fan is a high-efficiency kitchen ventilation solution manufactured by POPULA, a professional 100% direct source manufacturer. Specifically engineered for heavy-duty B2B applications, this series provides a reliable and quiet air handling solution for commercial kitchens and diverse industrial environments, delivering factory-direct quality to the global market.
Advanced Ventilation with JDT Cabinet type centrifugal fan
Sourcing the JDT Cabinet type centrifugal fan directly from our manufacturing facility ensures you receive a product optimized for intense fume extraction and continuous-duty ventilation. Its novel and compact cabinet structure is designed to minimize vibration and noise, making it the ideal choice for environments where operational silence and power are both required.
- Specialized Kitchen Fume Extraction: Primarily designed for the demanding task of kitchen fume removal, ensuring efficient airflow to maintain a clean and safe cooking environment.
- Low-Noise Cabinet Design: Features a sound-insulated enclosure that provides high efficiency while significantly reducing decibel levels and vibration during operation.
- Broad Application Versatility: Extensively used in hotels, restaurants, cinemas, and basements, as well as mining industries and offices for comprehensive air management.
- Operational Media Constraints: Engineered to transport air or non-combustible gases at temperatures up to 80°C, with a dust and grain concentration not exceeding 150mg/m³.
- Easy Installation & Maintenance: The lightweight, compact structure of the JDT Cabinet type centrifugal fan allows for simple setup and convenient routine servicing in tight mechanical spaces.
Whether you are outfitting a large-scale commercial kitchen or a commercial building ventilation system, the JDT Cabinet type centrifugal fan offers the technical precision and structural durability your project demands. Trust POPULA for expert technical support and competitive wholesale pricing on all cabinet centrifugal ventilation systems.
产数Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static pressure(Pa) |
|---|---|---|---|---|---|
| JDT-10″ | 0.75 | 900 | 2543~4560 | 230~151 | 198~126 |
| JDT-10″ | 1.1 | 1000 | 2826~5067 | 284~186 | 245~154 |
| JDT-10″ | 1.5 | 1200 | 3391~6081 | 409~268 | 353~180 |
| JDT-10″ | 2.2 | 1400 | 3956~7094 | 557~365 | 480~245 |
| JDT-10″ | 3 | 1630 | 4606~8259 | 755~495 | 651~332 |
| JDT-12″ | 1.1 | 800 | 3382~6326 | 276~195 | 256~135 |
| JDT-12″ | 1.5 | 900 | 3804~7116 | 350~246 | 324~184 |
| JDT-12″ | 2.2 | 1050 | 4469~8303 | 476~335 | 441~251 |
| JDT-12″ | 3 | 1250 | 5284~9884 | 675~475 | 625~275 |
| JDT-12″ | 4 | 1430 | 6045~11307 | 883~622 | 818~360 |
| JDT-15″ | 1.5 | 700 | 5047~9639 | 323~234 | 296~214 |
| JDT-15″ | 2.2 | 820 | 5912~10121 | 443~321 | 407~294 |
| JDT-15″ | 3 | 950 | 6849~11725 | 595~431 | 546~395 |
| JDT-15″ | 4 | 1080 | 7786~13329 | 769~557 | 706~511 |
| JDT-15″ | 5.5 | 1280 | 9228~15789 | 1080~703 | 991~562 |
| JDT-18″ | 2.2 | 600 | 7181~12782 | 283~203 | 240~109 |
| JDT-18″ | 3 | 720 | 8618~15338 | 389~278 | 332~149 |
| JDT-18″ | 4 | 820 | 9814~17469 | 517~272 | 440~200 |
| JDT-18″ | 5.5 | 930 | 11131~19812 | 657~471 | 560~252 |
| JDT-18″ | 7.5 | 1100 | 12328~21942 | 925~582 | 856~303 |
| JDT-20″ | 3 | 560 | 7041~16578 | 383~301 | 360~230 |
| JDT-20″ | 4 | 610 | 7670~18058 | 454~358 | 427~273 |
| JDT-20″ | 5.5 | 720 | 9053~21315 | 633~499 | 595~381 |
| JDT-20″ | 7.5 | 800 | 10059~23683 | 782~616 | 735~470 |
| JDT-20″ | 11 | 930 | 11693~27532 | 1056~833 | 993~635 |
| JDT-20″ | 15 | 980 | 12300~29012 | 1173~925 | 1103~705 |
| JDT-22″ | 4 | 550 | 9789~21319 | 450~354 | 409~245 |
| JDT-22″ | 5.5 | 650 | 11569~25195 | 629~494 | 571~342 |
| JDT-22″ | 7.5 | 720 | 12815~27908 | 772~607 | 700~402 |
| JDT-22″ | 11 | 770 | 13705~29846 | 883~694 | 801~481 |
| JDT-22″ | 15 | 820 | 14595~31784 | 1001~787 | 908~545 |
| JDT-22″ | 18.5 | 930 | 16553~36048 | 1288~1012 | 1168~701 |
| JDT-25″ | 5.5 | 520 | 14985~25130 | 507~432 | 456~358 |
| JDT-25″ | 7.5 | 580 | 16714~28029 | 631~538 | 567~445 |
| JDT-25″ | 11 | 650 | 18731~31412 | 792~675 | 712~559 |
| JDT-25″ | 15 | 720 | 20748~34795 | 972~829 | 874~686 |
| JDT-25″ | 18.5 | 800 | 23054~38661 | 1200~1023 | 1079~847 |
| JDT-25″ | 22 | 870 | 25071~42044 | 1419~1210 | 1276~1002 |
尺寸siz
线图Technical Illustration
