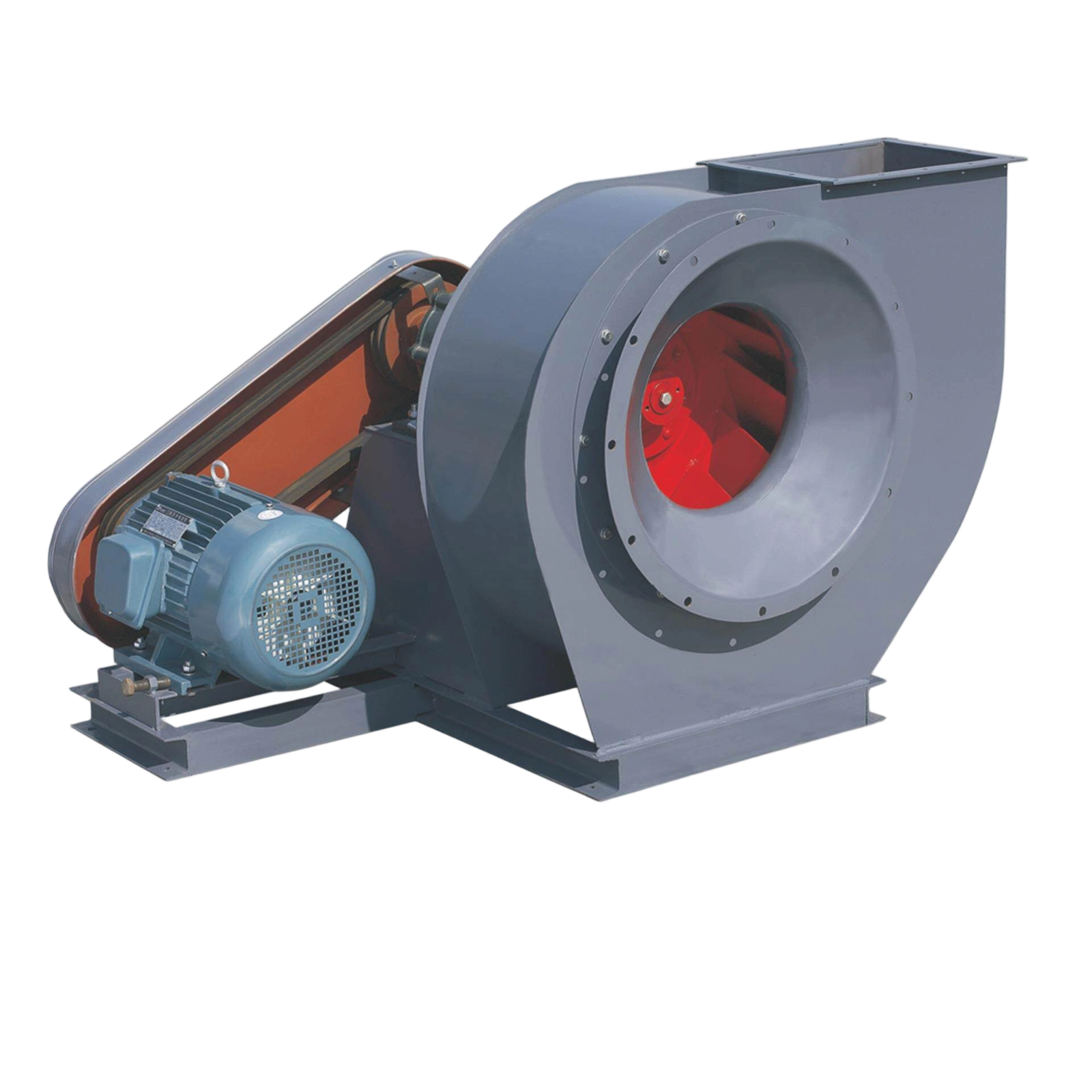

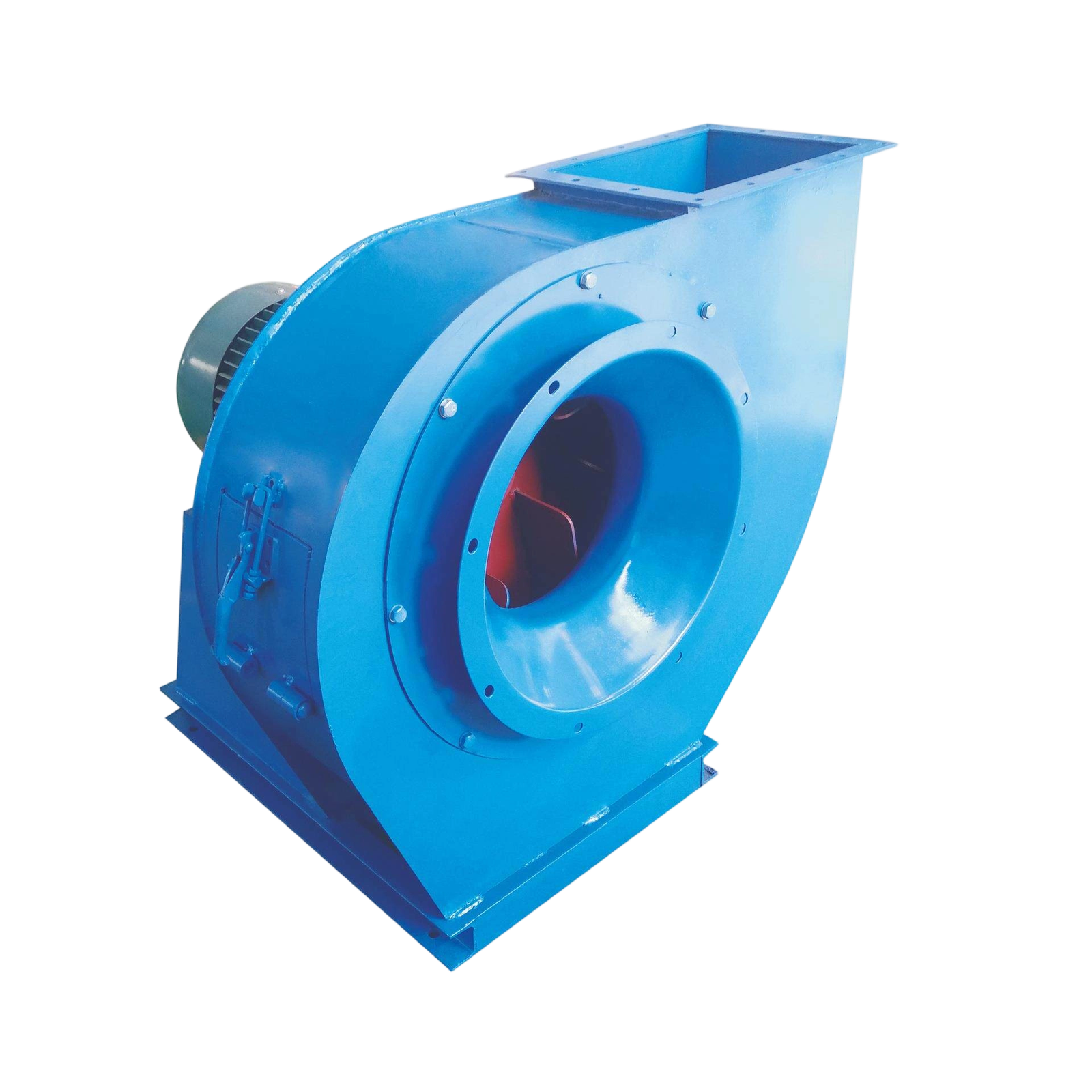

MQS5-54materialtransportfan

It is suitable to expel air with dirt, wood scraps and fine fiber. It can also be used for ventilation with the temperature of air below 80°C

产数Parameters

Model(Nº)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Noise dB(A)
4A	5.5	2900	2980~7588	2436~1300	≤88
4.5A	11	2900	4548~11313	3079~1527	≤96
5A	15	2900	4681~12353	4019~2832	≤97
6C	18.5	2450	5317~18453	4041~1630	≤99
6C	15	2200	4774~16570	3336~1391	≤97
6C	11	1900	4123~14310	2590~1139	≤94
6C	7.5	1700	3689~12804	2153~1098	≤92
7C	30	2200	7200~19800	4191~2815	≤101
7C	22	2000	6545~18000	3533~2396	≤99
7C	18.5	1800	5891~16200	2937~2016	≤97
7C	15	1600	5236~14400	2405~1677	≤95
8C	30	1800	8550~23400	3737~1869	≤100
8C	22	1600	7600~20800	3037~1561	≤98
8C	15	1450	6887~18850	2566~1353	≤96
8C	11	1200	5700~15600	1883~1053	≤93
9C	30	1450	9300~25800	2976~1549	≤99
9C	18.5	1250	8017~22241	2178~1151	≤95
9C	11	1000	6413~17793	1370~736	≤91
10C	45	1450	13200~36900	3612~1917	≤103
10C	30	1250	11379~31810	2736~1476	≤99
10C	22	1120	10195~28502	2236~1224	≤97

尺寸siz

线图Technical Illustration
