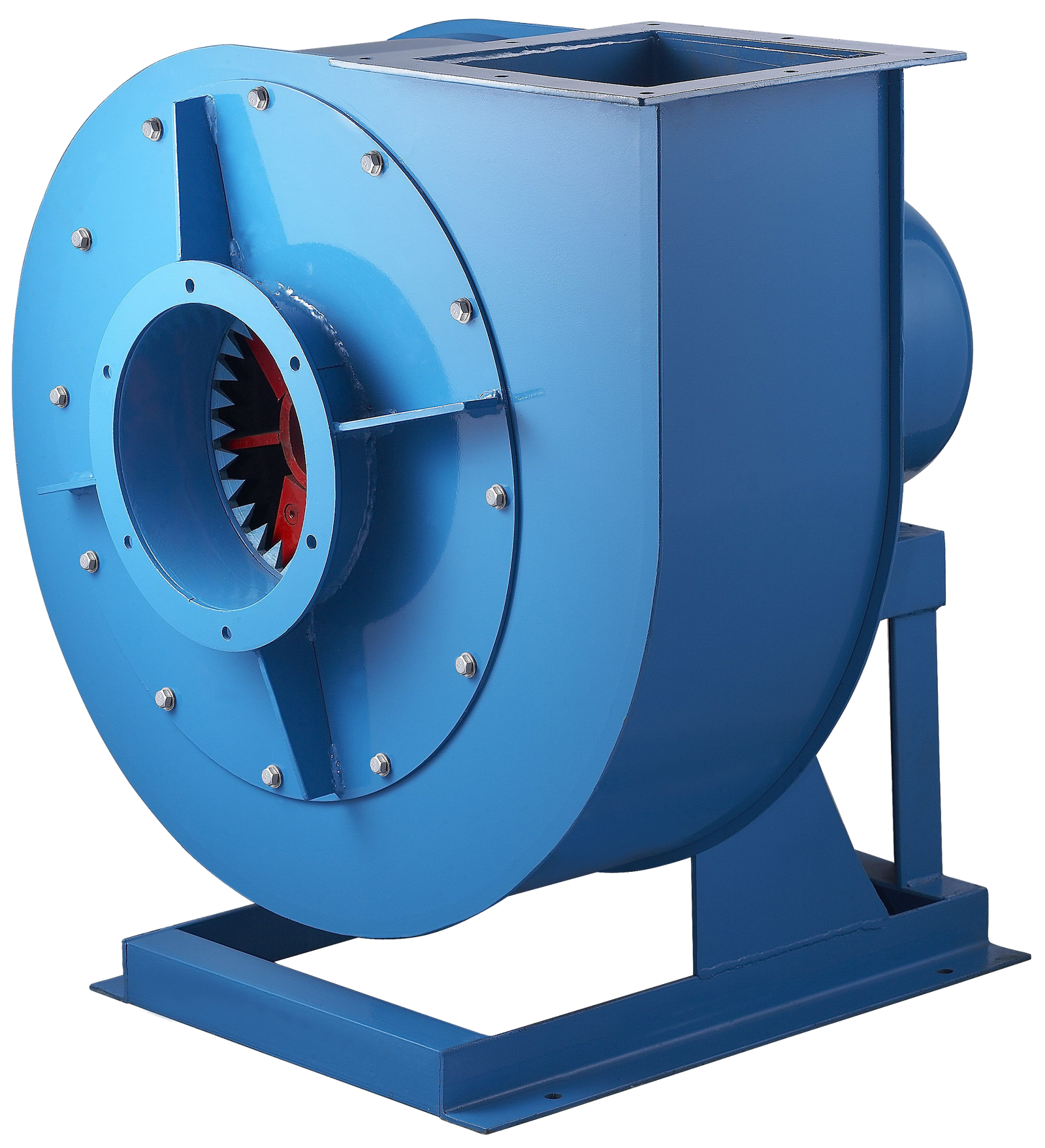

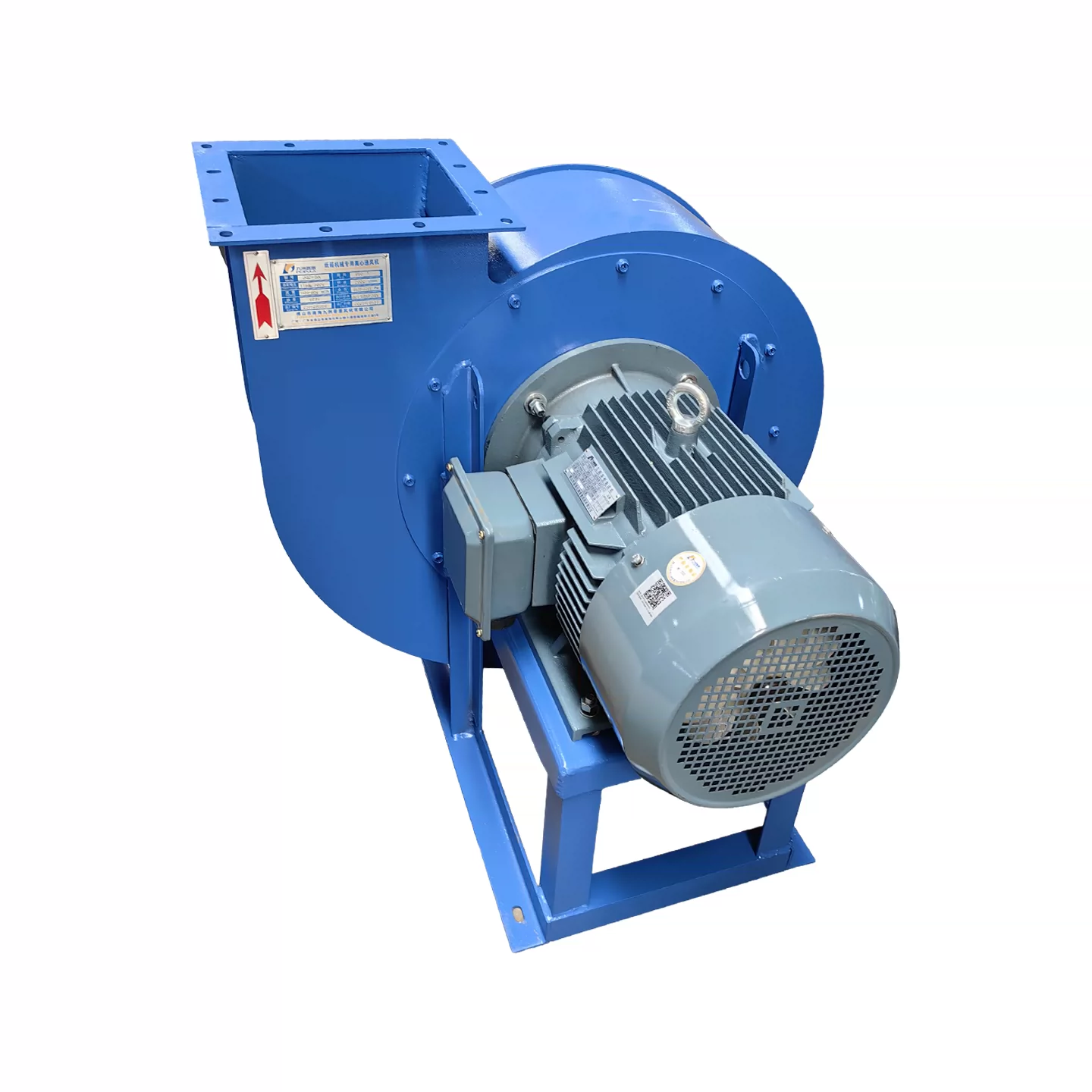

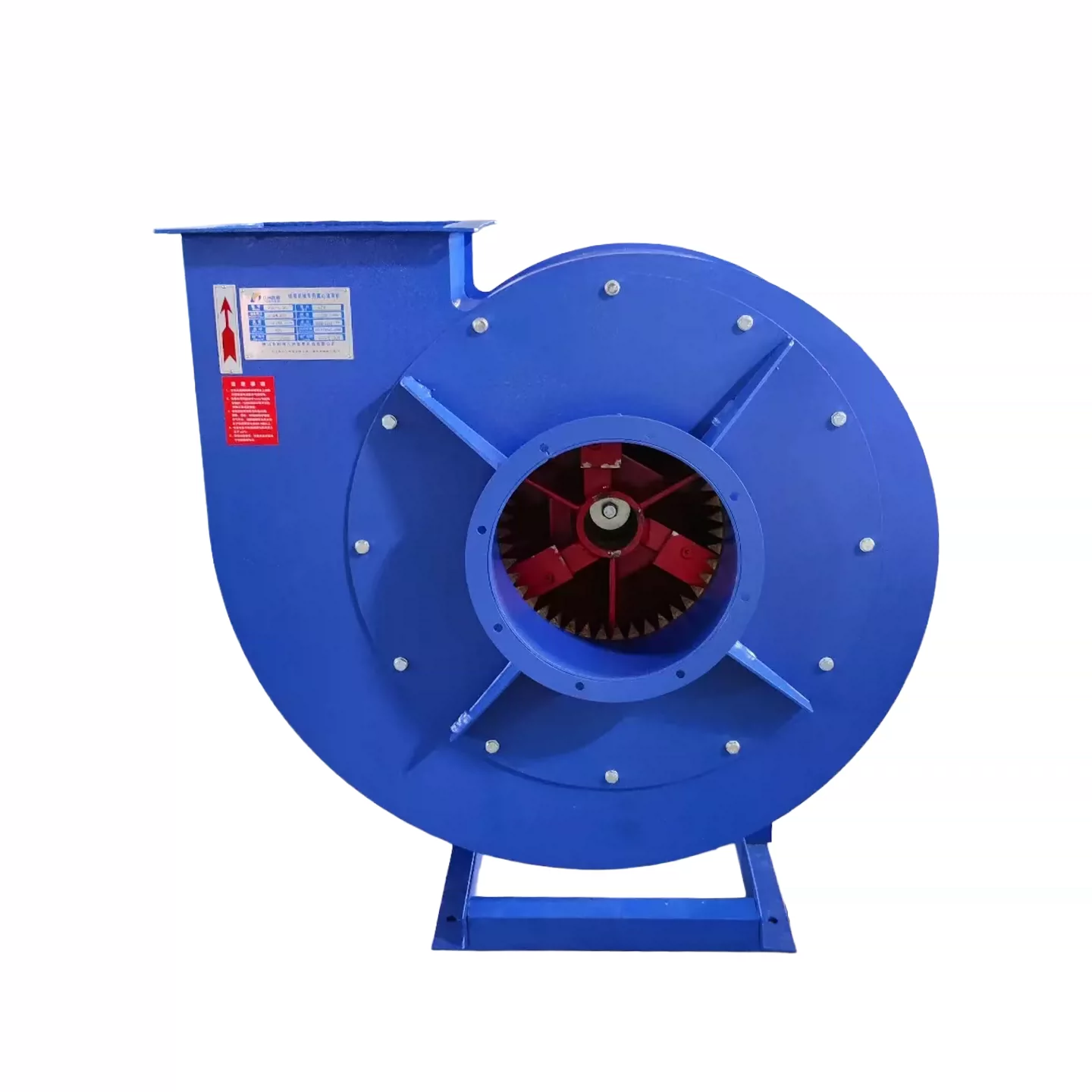

JQZ type scrap paper delivered fan
Featured by firm and rational structure, large volume, high pressure, stable performance,the safe and practical fan can solve the problem with collecting and handling paper edge.This product can collect and cut the paper edge to pieces, than transport it by air to dumps so as to improve the operating environment. The air transported shall not be corrosive and flammable with a temperature no greater than 80C, and shredding thickness shall not exceed 350g/m³.
产数Parameters
| Model(Nº) | Driver type | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| 4A | A 式 | 3 | 2900 | 821~2487 | 2669~1467 |
| 4.5A | A 式 | 5.5 | 2900 | 1169~3542 | 3378~1856 |
| 5A | A 式 | 11 | 2900 | 1604~4858 | 4170~2291 |
| 5.5A | A 式 | 18.5 | 2900 | 3148~7800 | 4608~2153 |
| 5.7A | A 式 | 22 | 2900 | 3472~9346 | 4953~2906 |
| 6A | A 式 | 30 | 2900 | 5505~11592 | 6233~3331 |
| 6.8C | C 式 | 15 | 2130 | 4477~7202 | 4204~3514 |
| 6.8C | C 式 | 18.5 | 2130 | 7942~8675 | 3258~2997 |
| 6.8C | C 式 | 22 | 2130 | 8240~10000 | 3250~2900 |
| 6.8C | C 式 | 30 | 2450 | 8499~10415 | 4310~3698 |
| 6.8C | C 式 | 37 | 2500 | 8672~11680 | 4487~3850 |
尺寸siz
线图Technical Illustration
