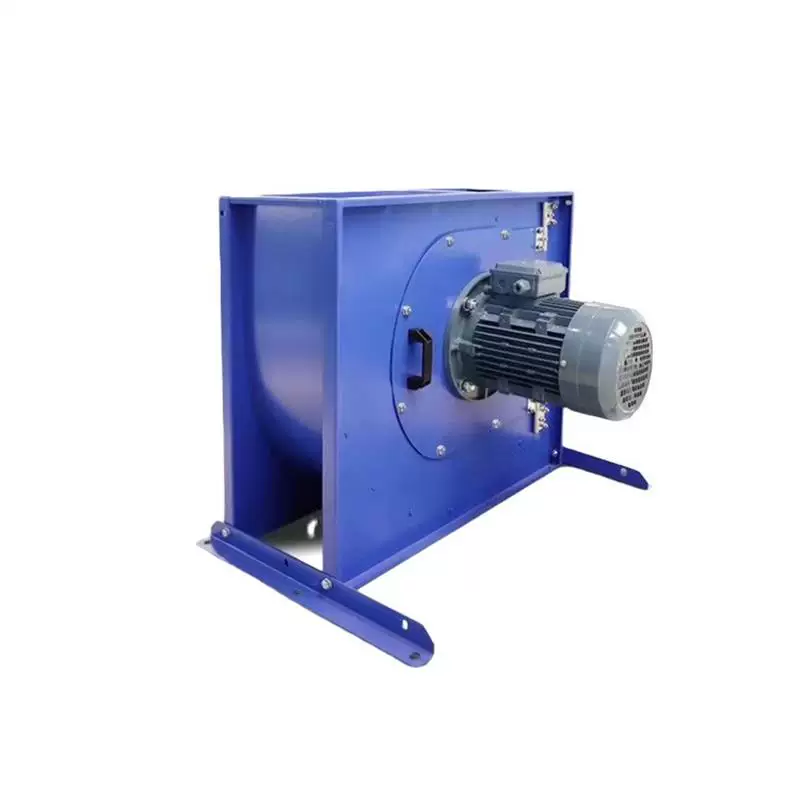

XCF multi-wings centrifugal fan
XCF multi-blade centrifugal fan is created with three dimensional flow technic and latest design to ensure its excellentperformance, especially aerodynamic performance. It is wisely used in kitchen,dining hall, hotel restaurant, eatery and other pulbic places for kithcen ventilation, smoke ventilation or delivery gases, air or other uninflammable and harmlessgases, and hard particles within all mediums must be lower than 150mg per cubic metre.
产数Parameters
| Model(NP) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static Pressure(Pa) |
|---|---|---|---|---|---|---|
| XCF-2.8A | 0.75 | 220/380 | 1400 | 1625~3038 | 551~498 | 510~354 |
| XCF-3.0A | 1.5 | 220/380 | 1450 | 2590~4563 | 668~505 | 582~239 |
| XCF-3.2A | 2.2 | 220/380 | 1450 | 3820~5640 | 790~610 | 650~290 |
| XCF-3.5A | 3 | 220/380 | 1450 | 5048~7215 | 909~633 | 727~260 |
| XCF-4.0A | 2.2 | 380 | 960 | 4301~7323 | 668~650 | 589~420 |
| XCF-4.5A | 3 | 380 | 960 | 5389~9117 | 756~724 | 677~498 |
| XCF-5.0A | 5.5 | 380 | 960 | 7912~13488 | 970~845 | 857~516 |
| XCF-5.6A | 6.5 | 380 | 960 | 9126~16108 | 1039~887 | 919~533 |
| XCF-6.0A | 7.5 | 380 | 960 | 11236~16513 | 1203~1139 | 1070~853 |
尺寸siz
线图Technical Illustration
