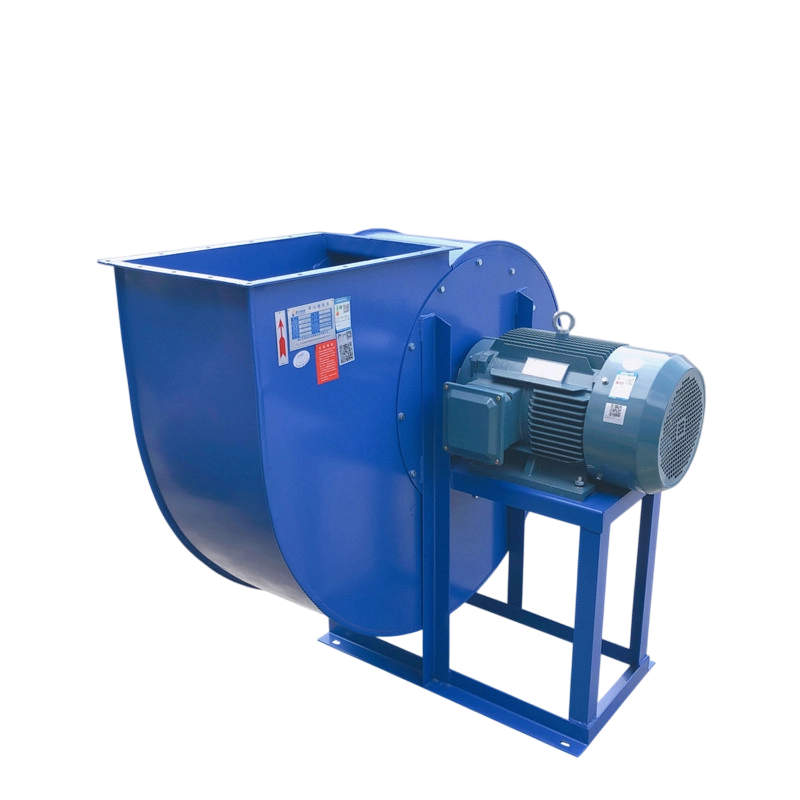

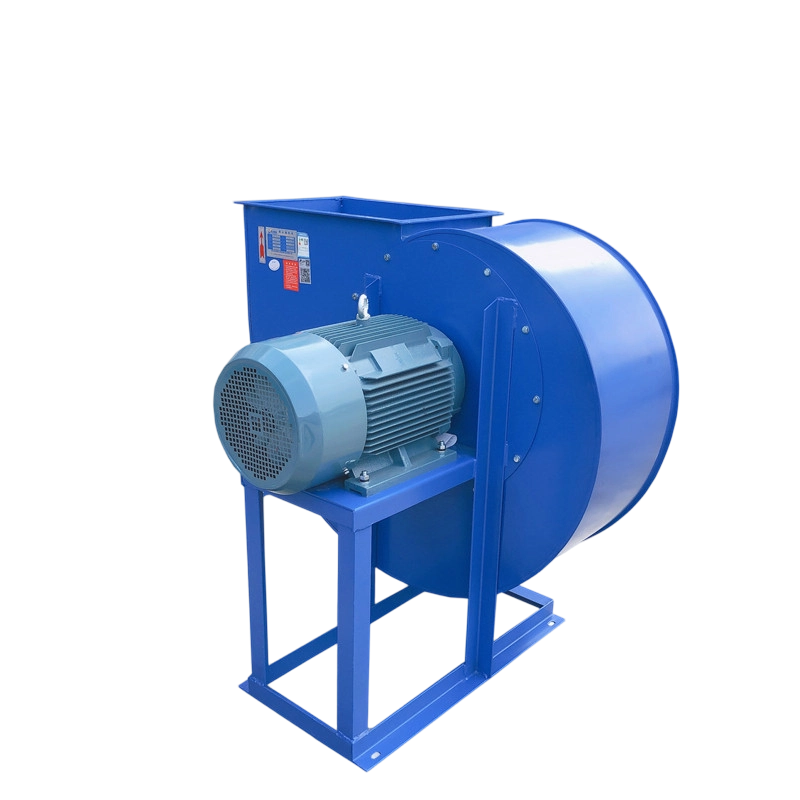

HCF backward single-plate kitchen lampblack exhauster

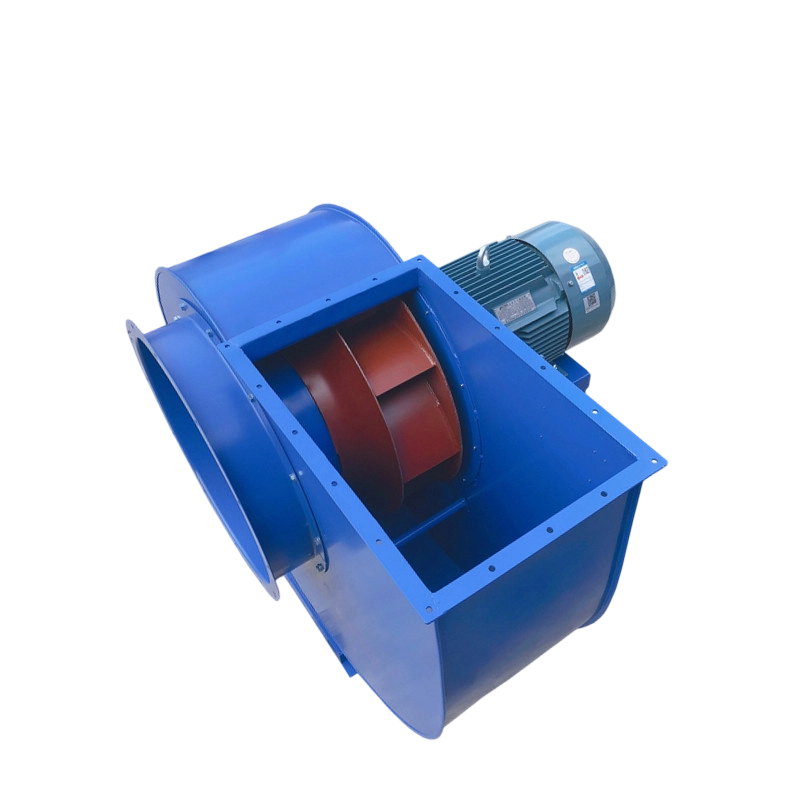

Impeller: Backward single-platempeller.Convenient for clean.
Noise: 10% lower thansimilarfans.Suitable Air: Non-hypergolic,non-corrosive,dustinesss120mg/m’-20C<air temperature<85℃
Application:Suitable for kitchen lampblack exhaustingand using with smoke purifier.

产数Parameters

HCF-I Type A Fan,HCF-II Type A Fan

Model(N°)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static Pressure(Pa)
3.6A	0.75	220/380	1450	1876~3088	405~201	385~145
3.6A	2.2	380	2900	3752~6175	1620~805	1540~581
4.0A	1.1	220/380	1450	2330~4378	509~295	492~249
4.0A	4	380	2900	4660~8756	2035~1178	1969~997
4.5A	1.1	220/380	1450	3070~6100	675~392	650~307
4.5A	5.5	380	2900	6138~12200	2700~1565	2605~1229
5.0A	2.2	220/380	1450	4763~9064	818~473	782~376
5.0A	11	380	2900	9525~18128	3272~1891	3130~1505
5.6A	2.2	380	1450	5235~11621	1076~540	1047~495
5.6A	18.5	380	2900	10470~23241	4301~2159	4188~1980
6.0A	1.5	380	960	5207~9642	520~306	468~177
6.0A	3	380	1450	7864~14293	1187~699	1069~403
7.0A	1.1	380	720	6877~11288	398~221	386~177
7.0A	2.2	380	960	9169~15051	708~329	687~258
8.0A	2.2	380	1450	13845~22734	1616~750	1567~650
8.0A	5.5	380	960	13909~23552	1002~436	890~326
8.0A	15	380	1450	21003~35564	2286~995	2030~720

HCF-I Type C Fan (Belt Drive)

Model(N°)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static Pressure(Pa)
4.0C	4	380	2600	4178~7594	1865~943	1586~752
4.0C	3	380	2400	3856~7010	1589~803	1351~641
4.0C	2.2	380	2000	3213~5842	1103~558	938~445
4.0C	1.5	380	1800	2892~5258	893~452	760~360
4.0C	1.1	380	1600	2571~4673	706~357	600~284
4.5C	4	380	2600	5949~10812	2147~1011	2082~730
4.5C	3	380	2400	5491~9980	1829~861	1774~622
4.5C	2.2	380	2200	5033~9149	1536~723	1491~346
4.5C	1.5	380	1800	4118~7486	1244~586	1208~280
4.5C	1.1	380	1600	3660~6654	982~463	954~221
5.0C	7.5	380	2600	8160~14931	2512~1248	2388~901
5.0C	5.5	380	2400	7532~13689	2140~1063	2035~767
5.0C	4	380	2000	6276~11407	1486~738	1413~532
5.0C	3	380	1800	5648~9126	1204~598	1144~431
5.0C	2.2	380	1600	5020~8112	951~472	904~340
5.0C	1.5	380	1430	4487~7250	852~422	722~272
5.6C	11	380	2400	10583~19234	2685~1334	2552~963
5.6C	7.5	380	2200	9693~17618	2253~1122	1632~807
5.6C	5.5	380	2000	8812~16017	1862~927	1349~667
5.6C	4	380	1800	7931~14415	1508~751	1430~540
5.6C	3	380	1600	7050~12813	1192~593	1130~427
5.6C	2.2	380	1400	6174~11220	913~454	865~327
6.0C	15	380	2400	11295~23337	3179~1626	3079~1314
6.0C	11	380	2200	10362~21410	2672~1366	2588~1104
6.0C	7.5	380	2000	9462~19464	2208~1129	2139~912
6.0C	5.5	380	1800	8516~17518	1789~915	1733~739
6.0C	4	380	1600	7570~15572	1414~723	1370~584
6.0C	3	380	1300	6155~12660	934~477	905~386
7.0C	18.5	380	2000	16631~30225	2715~1348	2581~784
7.0C	15	380	1800	14968~27205	2199~1092	2091~635
7.0C	11	380	1650	13721~24938	1848~917	1757~534
7.0C	7.5	380	1450	12057~21914	1427~709	1357~512
7.0C	5.5	380	1280	10646~19345	1112~552	1057~399
7.0C	4	380	1120	9315~16927	852~432	810~306
7.0C	3	380	1000	8318~15116	679~337	705~266
8.0C	18.5	380	1600	20561~37370	2569~1138	2491~956
8.0C	15	380	1450	18641~33880	2110~935	2046~810
8.0C	11	380	1300	16702~30356	1694~751	1643~650
8.0C	7.5	380	1200	15416~28019	1443~640	1400~554
8.0C	5.5	380	1100	14121~25665	1212~538	1176~466
8.0C	4	380	960	12314~22380	922~409	875~316
9.0C	30	380	1600	31194~51494	3180~1485	3086~1307
9.0C	22	380	1450	28262~46666	2618~1220	2534~1074
9.0C	18.5	380	1320	25728~42482	2170~1011	2100~890
9.0C	15	380	1250	24363~40229	1946~907	1883~798
9.0C	11	380	1120	21830~36126	1562~728	1512~641
9.0C	7.5	380	960	18711~30965	1148~535	1111~470
9.0C	5.5	380	800	15592~25803	797~372	772~326

尺寸siz

线图Technical Illustration
