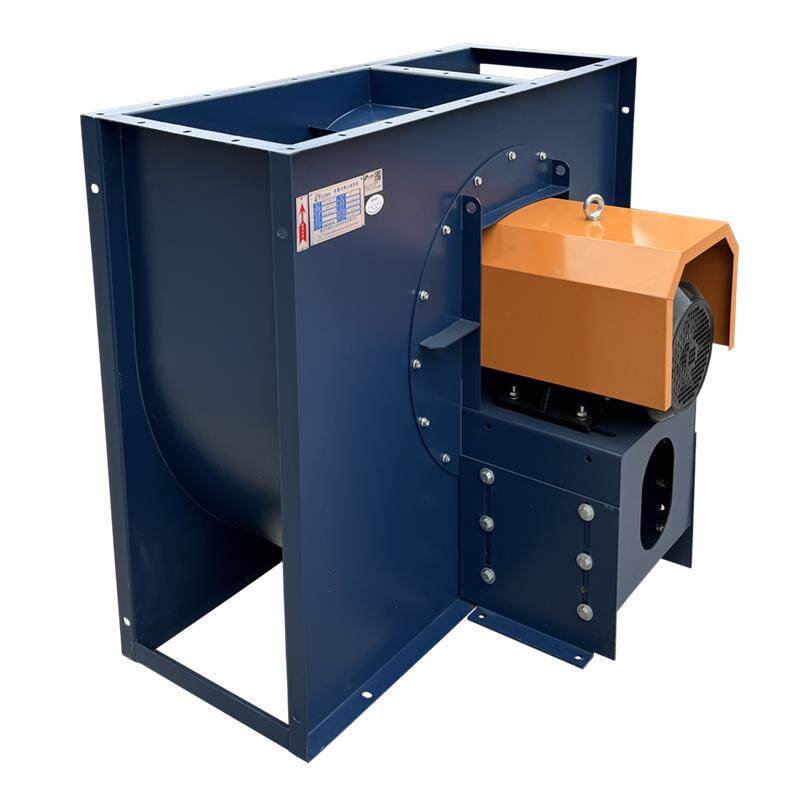

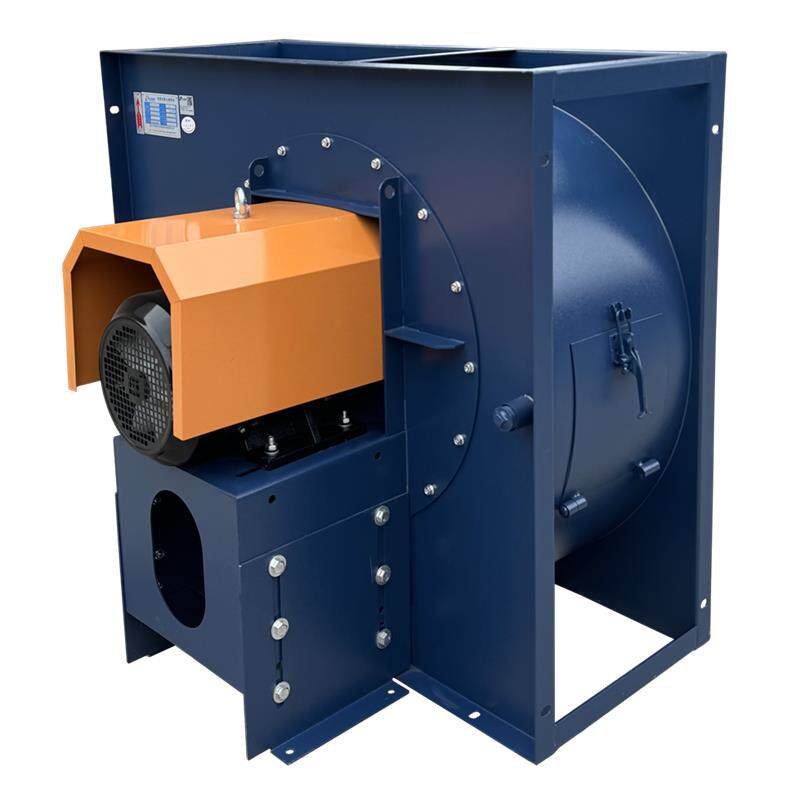

VF multi-wings centrifugal fan

VF multi-wings centrifugal fan is a high-performance industrial ventilation unit manufactured by POPULA, a professional 100% direct source manufacturer. Specifically engineered for the B2B global market, this series integrates advanced permanent magnet technology with a specialized structure to solve the most challenging kitchen smoke exhaust problems.

Advanced Technology of VF multi-wings centrifugal fan

Sourcing the VF multi-wings centrifugal fan directly from our manufacturing facility ensures your project benefits from a refined design based on years of industrial expertise. This fan utilizes the advanced XBF-C blade structure, specifically modified to address the common industry issue of grease and oil accumulation on impellers in commercial kitchen environments.

  • Smart Drive Integration: Every VF multi-wings centrifugal fan is equipped with a high-efficiency permanent magnet motor plus a dedicated inverter, allowing for precision control and significant energy savings.

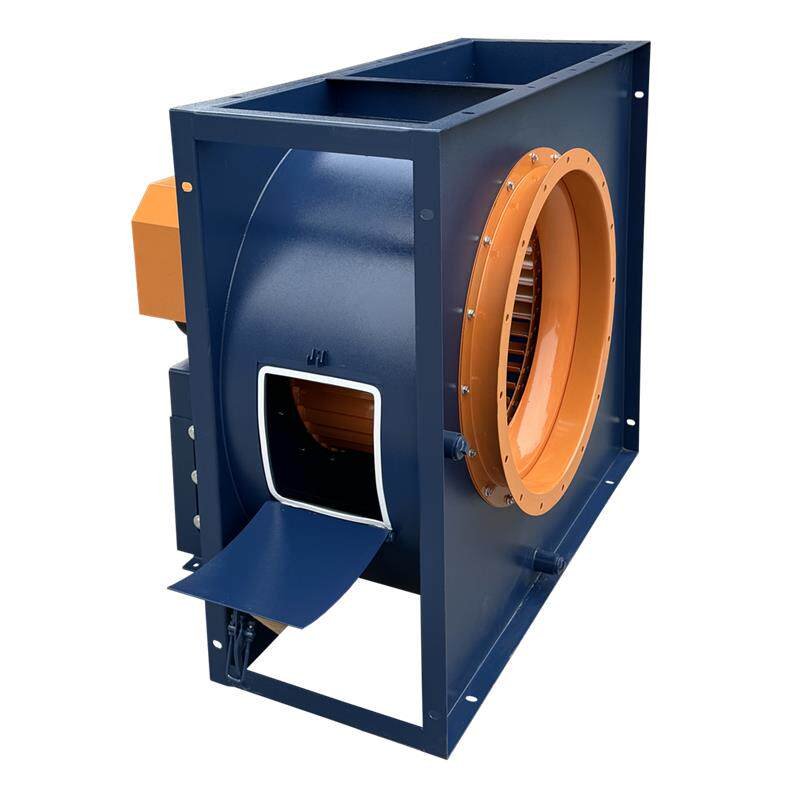

  • Maintenance-Friendly Housing: The fan housing is standard-equipped with dedicated clean windows, allowing for easy inspection and removal of oil dirt without extensive disassembly.
  • Aerodynamic Blade Design: Based on the XBF-C structure, the multi-wings impeller is engineered for high static pressure and stable airflow, perfect for long-distance ductwork in large public buildings.
  • Public Venue Applications: Widely applicable to unit canteens, hotels, and restaurants for reliable smoke extraction and general air transmission.
  • Industrial Technical Standards: Designed for non-viscous gases at temperatures up to 80°C, with a dust and particle concentration not exceeding 150mg/m³.

With its combination of permanent magnet efficiency and an easy-clean design, the VF multi-wings centrifugal fan stands as a premier solution for facility managers who prioritize low maintenance and high performance. Trust POPULA for factory-direct technical parameters and competitive wholesale pricing for your ventilation projects.

VF multi-wings centrifugal fan Manufacturer - POPULA
vf multi wings centrifugal fan
vf multi wings centrifugal fan
vf multi wings centrifugal fan
产数Parameters
Model (N°)Power (kW)Voltage (V)Rotation (r/min)Volume (m³/h)Pressure (Pa)Static Pressure (Pa)
5A33808004705~10897634~607600~416
5A43809005311~12300803~768758~526
5A5.538010005876~12691984~920929~731
5A7.538011006534~141121193~11801127~928
5.6A5.53808009642~16520880~719774~463
5.6A7.5380100010450~150431396~12341284~1022
5.6A1138011009411~186671530~13881406~1152
6.3A7.538075010698~17534887~875810~731
6.3A1138090013715~192711458~14381333~1201
6.3A15380100014034~232241775~16001650~1341
7.1A1138075014968~260001190~11501042~752
7.1A1538080012643~269041214~14101192~1086
7.1A18.538080025126~338491480~12211196~794
8A1538060012604~310581080~1240988~926
8A18.538075013957~332021290~14101203~1195
8A2238075014285~360281330~15901240~1205

Note: This series of fans is equipped with permanent magnet motors (PMM) and dedicated inverters (VFDs).

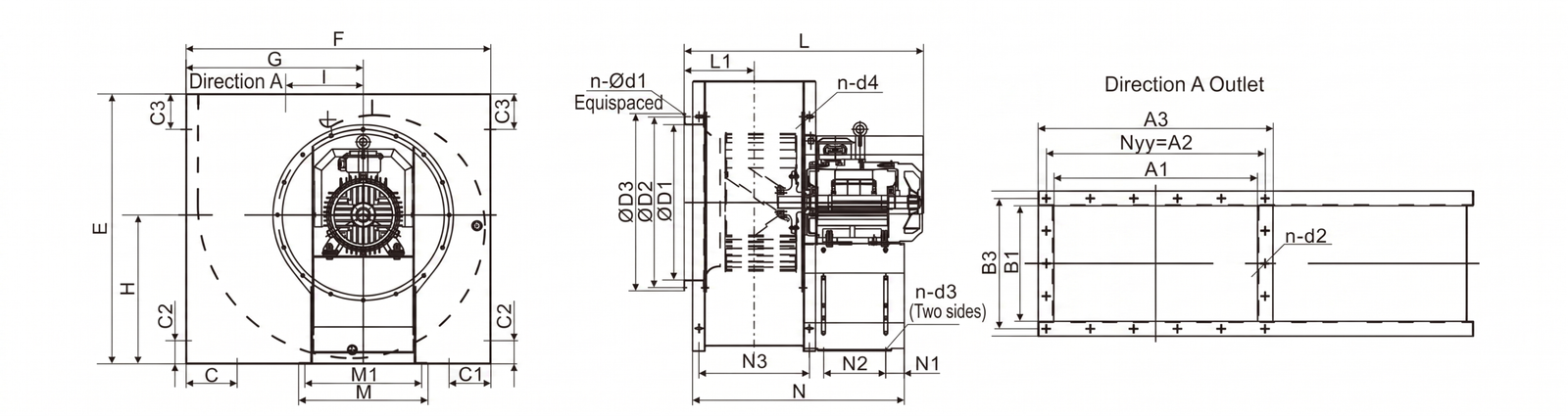

ModelPowerInlet DimensionsOutlet Dimensions
kWD1D2D3n-Ød1A1Ny×y=A2A3B1Nx×x=B2B3n-d2EFGHICC1C2C3LL1NN1N2N3MM1n-d3n-d4
5A3kWØ500Ø550Ø57016-Ø12555119×5=59564031589×4=35639518-Ø1087098057048025016513575115738225641601303553433032-Ø1412-12×18
5A4kWØ500Ø550Ø57016-Ø12555119×5=59564031589×4=35639518-Ø1087098057048025016513575115738225641601303553433032-Ø1412-12×18
5A5.5kWØ500Ø550Ø57016-Ø12555119×5=59564031589×4=35639518-Ø1087098057048025016513575115738225641601303553433032-Ø1412-12×18
5A7.5kWØ500Ø550Ø57016-Ø12555119×5=59564031589×4=35639518-Ø1087098057048025016513575115770225640601603554163762-Ø1412-12×18
5.6A5.5kWØ560Ø610Ø64016-Ø10625111×6=66671035599×4=39643520-Ø10970109063453527917014075115810245722602003954163762-Ø1414-14×20
5.6A7.5kWØ560Ø610Ø64016-Ø10625111×6=66671035599×4=39643520-Ø10970109063453527917014075115810245722602003954163762-Ø1414-14×20
5.6A11kWØ560Ø610Ø64016-Ø10625111×6=66671035599×4=39643520-Ø10970109063453527917014075115850245722602003954163762-Ø1414-14×20
6.3A7.5kWØ630Ø680Ø71016-Ø10704125×6=750794400112×4=44848620-Ø101090123071060031320015080130874268770602004464163762-Ø1414-14×20
6.3A11kWØ630Ø680Ø71016-Ø10704125×6=750794400112×4=44848620-Ø101090123071060031320015080130906268770602004464163762-Ø1414-14×20
6.3A15kWØ630Ø680Ø71016-Ø10704125×6=750794400112×4=44848620-Ø101090123071060031320015080130970268830602604464383982-Ø1414-14×20
7.1A11kWØ700Ø750Ø78016-Ø10640115×6=690724460102×5=51054422-10×131290151589773553527018080145955297830602005004163762-Ø1414-14×20
7.1A15kWØ700Ø750Ø78016-Ø10640115×6=690724460102×5=51054422-10×1312901515897735535270180801451025297890602605004383982-Ø1414-14×20
7.1A18.5kWØ700Ø750Ø78016-Ø10640115×6=690724460102×5=51054422-10×1312901515897735535270180801451115297930603005004684282-Ø1414-14×20
8A15kWØ650Ø700Ø74016-Ø10716128×6=768804520115×5=57560822-10×14142517001004830602300200801601105344952602605644704302-Ø1414-14×25
8A18.5kWØ650Ø700Ø74016-Ø10716128×6=768804520115×5=57560822-10×14142517001004830602300200801601200344992603005647007502-Ø1414-14×25
8A22kWØ650Ø700Ø74016-Ø10716128×6=768804520115×5=57560822-10×14142517001004830602300200801601200344992603005647007502-Ø1414-14×25
