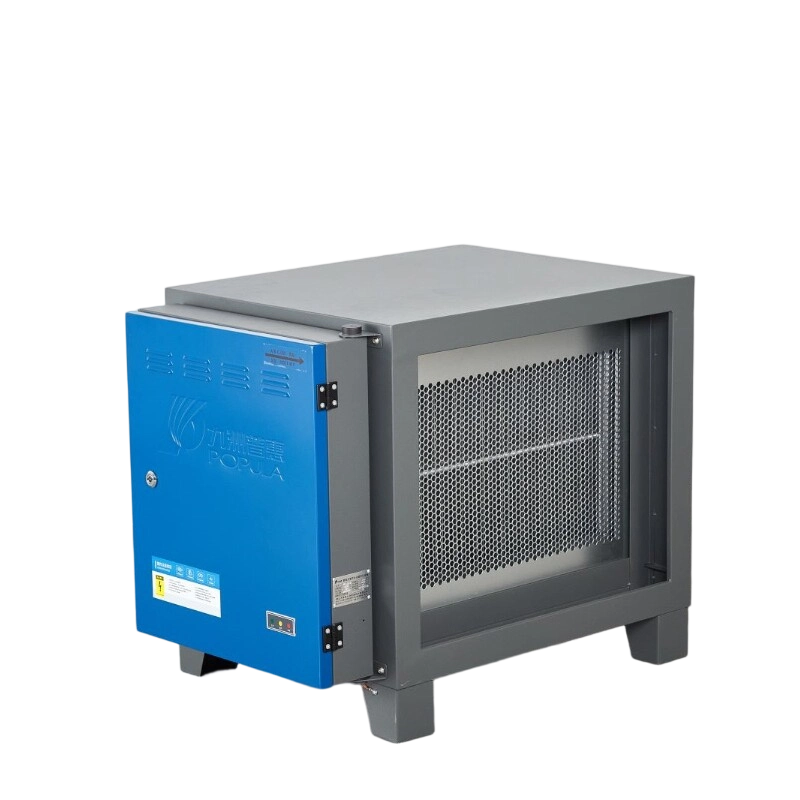

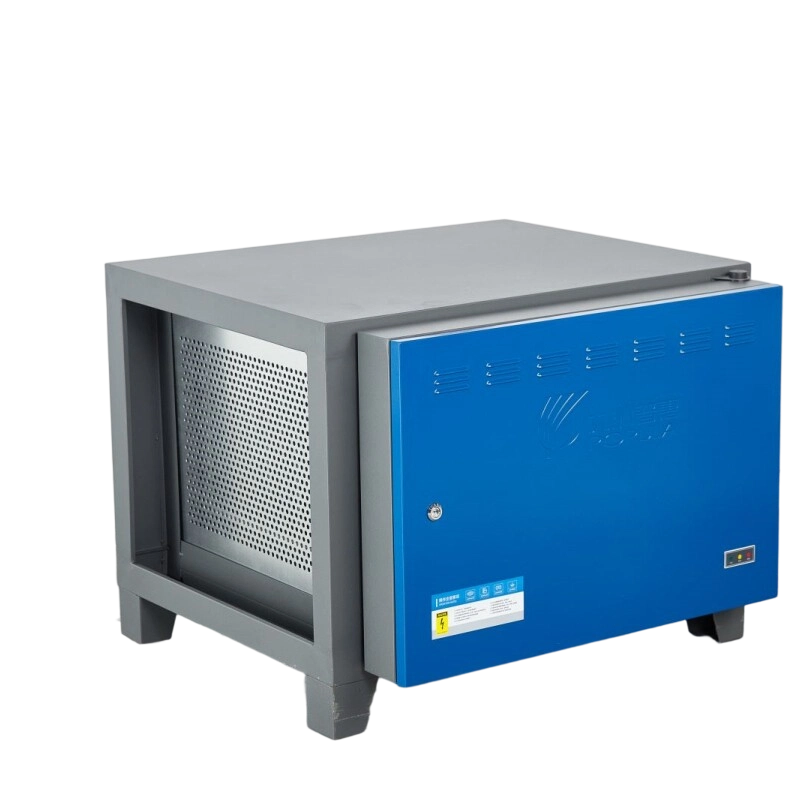

Electrostatic oil smoke purification equipment

This type of fan is specially used for oil fume purtfication in the kitchen of hotel, restaurant or canteen. But it is stn ctly prohibited to be used for purifying the air that is inflammable, explosive, volatile and corrosive, or black smoke produced by diesel while buming.

产数Parameters

Model	Power(W)	Voltage(V)	Airflow(m³/h)	Drag(Pa)	Purification Efficiency	Inlet/Outlet Inner Size(W×H)	Dimensions(L×W×H)
PF-JD-4	68	220	4000	<150	90%	590×455	840×510×663
PF-JD-6	102	220	6000	<150	90%	400×455	650×785×663
PF-JD-8	136	220	8000	<150	90%	590×455	840×785×663
PF-JD-10	180	220	10000	<150	90%	740×455	990×785×663
PF-JD-12	204	220	12000	<150	90%	950×455	1200×785×663
PF-JD-16	272	220	16000	<150	90%	590×1010	840×785×1220
PF-JD-20	360	220	20000	<150	90%	740×1010	990×785×1220
PF-JD-24	408	220	24000	<150	90%	910×1010	1155×785×1220
PF-JD-32	544	220	32000	<150	90%	1290×1010	1540×785×1220
PF-JD-40	675	220	40000	<150	90%	1800×1010	2045×785×1220
PF-JD-48	816	220	48000	<150	90%	1990×1010	2235×785×1220
PF-JD-4S	102	220	4000	<150	95%	400×455	650×785×663
PF-JD-6S	136	220	6000	<150	95%	590×455	840×785×663
PF-JD-8S	180	220	8000	<150	95%	740×455	990×785×663
PF-JD-9S	204	220	9000	<150	95%	950×455	1200×785×663
PF-JD-12S	272	220	12000	<150	95%	590×1010	840×785×1220
PF-JD-16S	360	220	16000	<150	95%	740×1010	990×785×1220
PF-JD-18S	408	220	18000	<150	95%	910×1010	1155×785×1220
PF-JD-24S	544	220	24000	<150	95%	1290×1010	1540×785×1220
PF-JD-30S	675	220	30000	<150	95%	1800×1010	2045×785×1220
PF-JD-36S	816	220	36000	<150	95%	1990×1010	2235×785×1220

Model	Power(W)	Voltage(V)	Volume(m³/h)	Drag(Pa)	Efficiency	Inlet/Outlet Size(W×H)	Dimensions(L×W×H)
PF-JD-4S	102	220	4000	<150	95%	400×455	650×785×663
PF-JD-6S	136	220	6000	<150	95%	590×455	840×785×663
PF-JD-8S	180	220	8000	<150	95%	740×455	990×785×663
PF-JD-9S	204	220	9000	<150	95%	950×455	1200×785×663
PF-JD-12S	272	220	12000	<150	95%	590×1010	840×785×1220
PF-JD-16S	360	220	16000	<150	95%	740×1010	990×785×1220
PF-JD-18S	408	220	18000	<150	95%	910×1010	1155×785×1220
PF-JD-24S	544	220	24000	<150	95%	1290×1010	1540×785×1220
PF-JD-30S	675	220	30000	<150	95%	1800×1010	2045×785×1220
PF-JD-36S	816	220	36000	<150	95%	1990×1010	2235×785×1220

尺寸siz

线图Technical Illustration
