JS type exhaust fan

JS exhaust fan is featured by low noise, electricity saving, large air flow, easyinstallation, which is an ideal choice for sunstroke prevention anc ventilation in occasions such as various warehouses, offices,flower greenhouses & poultryhouses. The product is used to transport nonflammable. low-corrosive gases with the temperature no higher than 5oC, relative humidity no greater than80% and the quantity of dust and solid impurities L00mg/m³.

产数Parameters

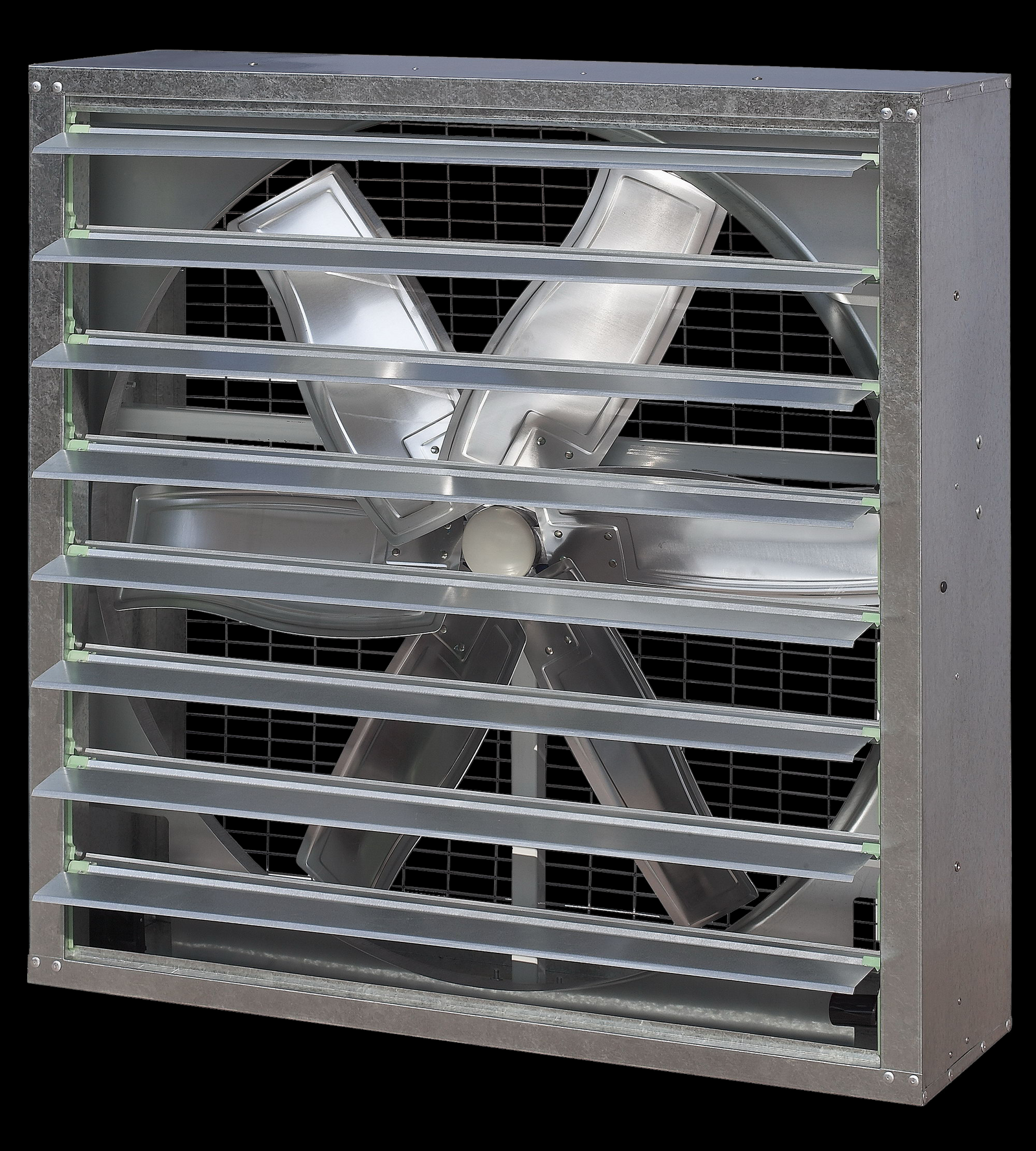

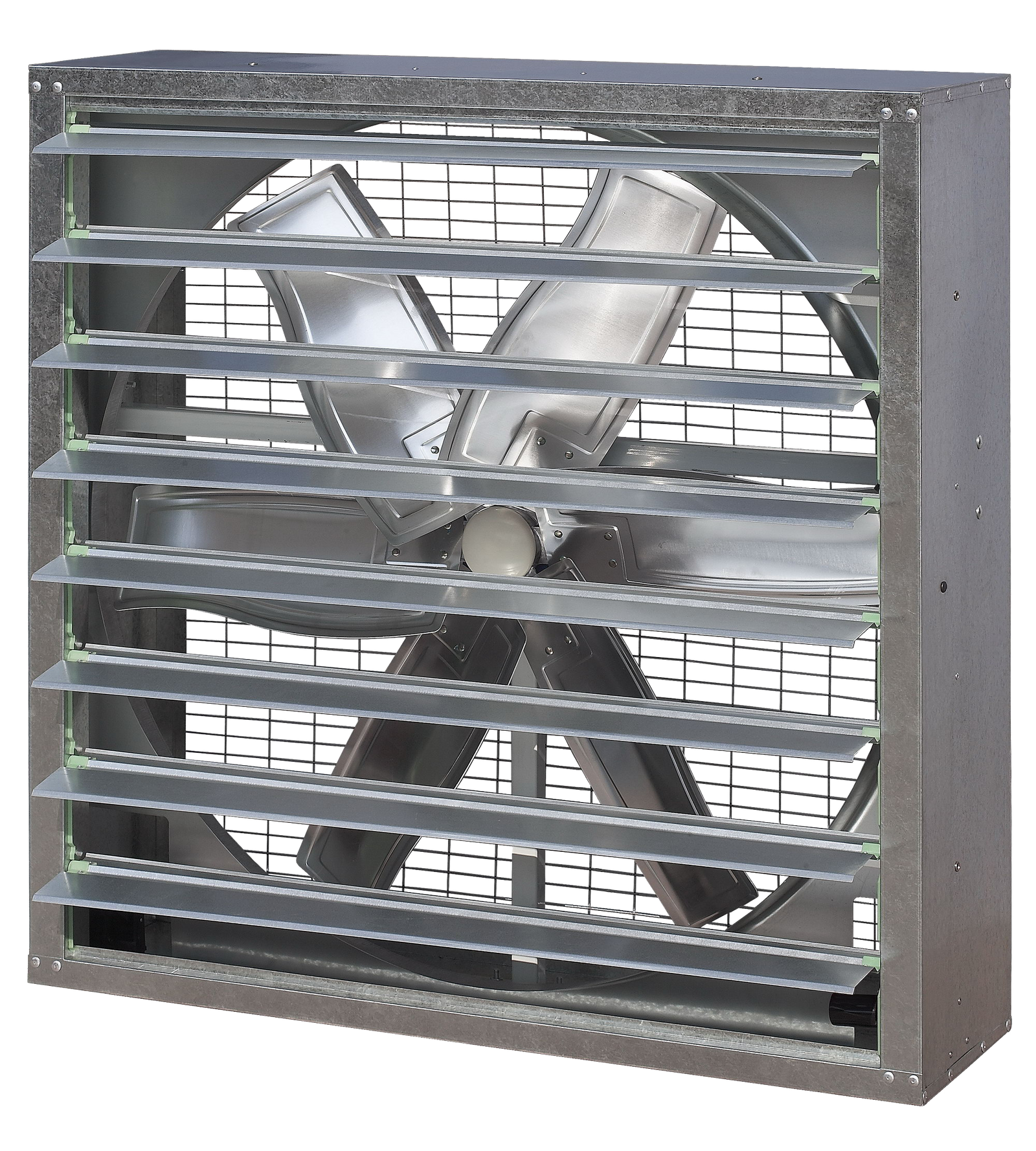

JS-II Exhaust Fan (Motor Directly Driven Type / A-Type Square Type)

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Noise dB(A)	Remarks
JS-II-4A	0.37	220/380	1400	7200	≤73	With louver \ with front-and-back protective net
JS-II-5A	0.55	220/380	1400	8600	≤75	With louver \ with front-and-back protective net
JS-II-6A	0.25	220/380	720	17000	≤70	With louver \ with front-and-back protective net
JS-II-8A	0.4	220/380	520	23000	≤71	With louver \ with front-and-back protective net
JS-II-9A	0.55	220/380	520	27500	≤73	With louver \ with front-and-back protective net
JS-II-10A	0.55	380	460	32000	≤74	With louver \ with front-and-back protective net
JS-II-12A	0.75	380	460	37000	≤75	With louver \ with front-and-back protective net
JS-II-13A	1.1	380	460	44500	≤78	With louver \ with front-and-back protective net

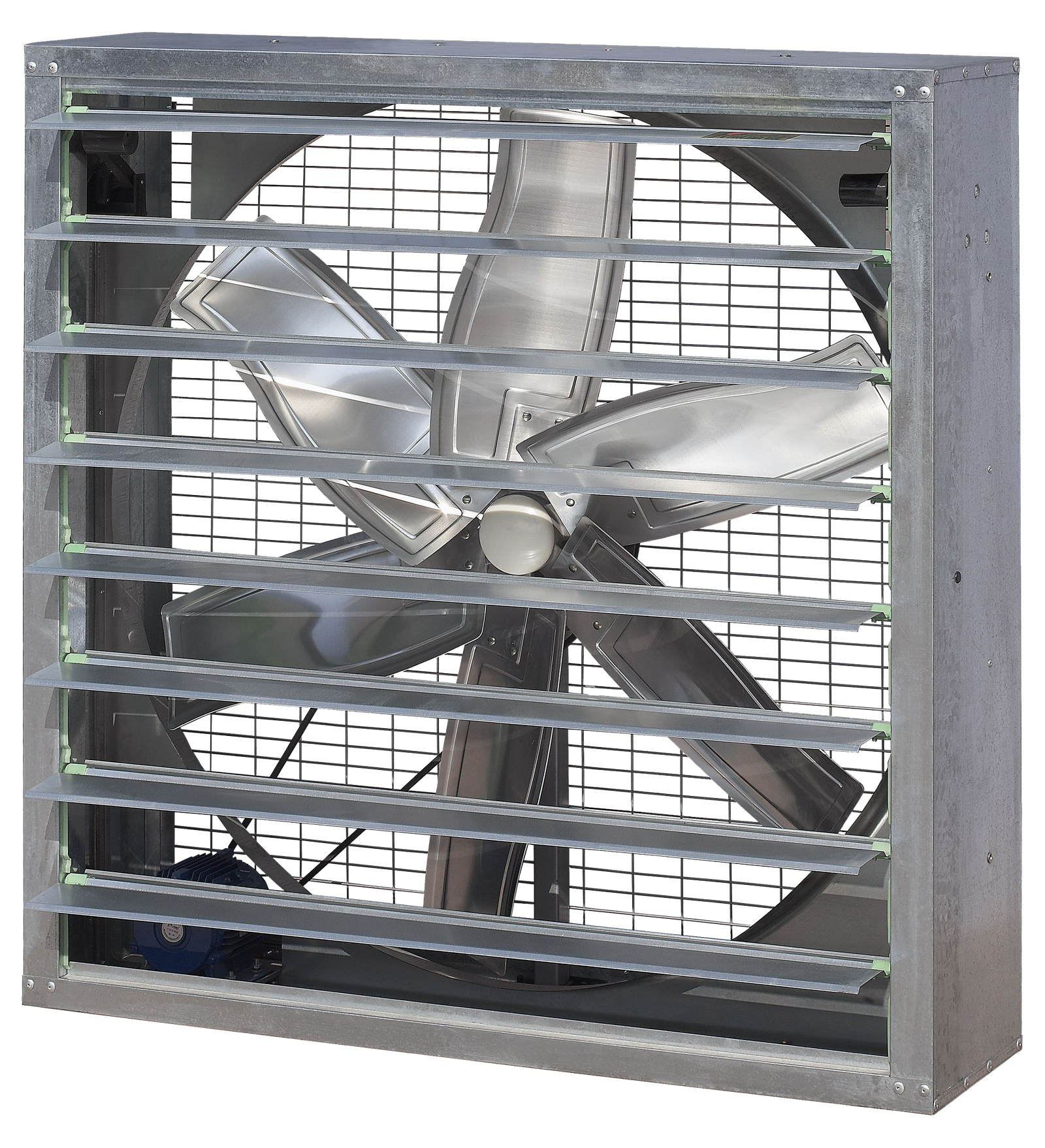

JS-II Exhaust Fan (Belt Driven Type / C-Type Square Type)

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Noise dB(A)	Remarks
JS-II-7C	0.55	220/380	640	18000	≤71	With louver \ with front-and-back protective net
JS-II-8C	0.55	220/380	520	23000	≤71	With louver \ with front-and-back protective net
JS-II-9C	0.75	220/380	520	27500	≤73	With louver \ with front-and-back protective net
JS-II-10C	0.75	220/380	460	32000	≤74	With louver \ with front-and-back protective net
JS-II-12C	1.1	220/380	460	37000	≤75	With louver \ with front-and-back protective net
JS-II-13C	1.1	220/380	460	44500	≤78	With louver \ with front-and-back protective net
JS-II-14C	1.5	220/380	520	55000	≤78	With louver \ with front-and-back protective net

尺寸siz

C-Type Louvered Window Installation Dimension Table

Model	L	B	H	L1	B1	H	N-M	Impeller Dia(φ)	Weight(kg)
7C	902	342	900	600	133	800	8-M8	680	39
8C	982	342	900	600	133	800	8-M8	780	41
9C	1045	392	1160	735	175	8	8-M8	965	46.5
10C	1122	342	920	735	133	8	8-M8	1040	54
12C	1238	420	1200	795	235	8	8-M8	1220	69
13C	1402	1480	1200	800	1260	8	12-M8	1260	79

A-Type with Louver Installation Dimension Table

Model(Nº)	L	B	H	L1	B1	H1	N-M	Impeller Φ(mm)	Weight(kg)
4A	502	342	502	–	–	–	–	395	18
5A	602	342	602	–	–	–	–	495	22
6A	752	342	750	–	–	–	8-M8	580	32
8A	982	372	980	600	210	600	8-M8	780	45
9A	1052	372	1050	660	220	660	8-M8	880	50
10A	1112	372	1110	660	220	660	8-M8	965	55
12A	1222	402	1220	795	250	795	8-M8	1040	72
13A	1383	402	1381	600	250	795	8-M8	1220	86.5

A/C-Type with Front & Back Protective Net Installation Dimension Table

Model(Nº)	L	B	H	L1	B1 (A-Type)	B1 (C-Type)	H1	N-M	Impeller Φ(mm)	Weight(kg)
6A	752	282	750	600	210	–	600	8-M8	580	28
7C	902	332	900	600	210	133	600	8-M8	680	34
8A/8C	982	332	980	600	210	133	600	8-M8	780	40/36.5
9A/9C	1052	332	1050	660	220	133	660	8-M8	880	43/39
10A/10C	1112	332	1110	660	220	133	660	8-M8	965	48/42
12A	1222	362	1220	795	—	133	795	8-M8	1040	62.5
12C	1222	332	1220	795	–	133	795	8-M8	1040	46
13A	1383	362	1381	795	250	–	795	8-M8	1220	76
13C	1383	332	1381	795	250	–	795	8-M8	1220	52
14C	1480	372	1480	1060	–	133	1060	12-M8	1260	66

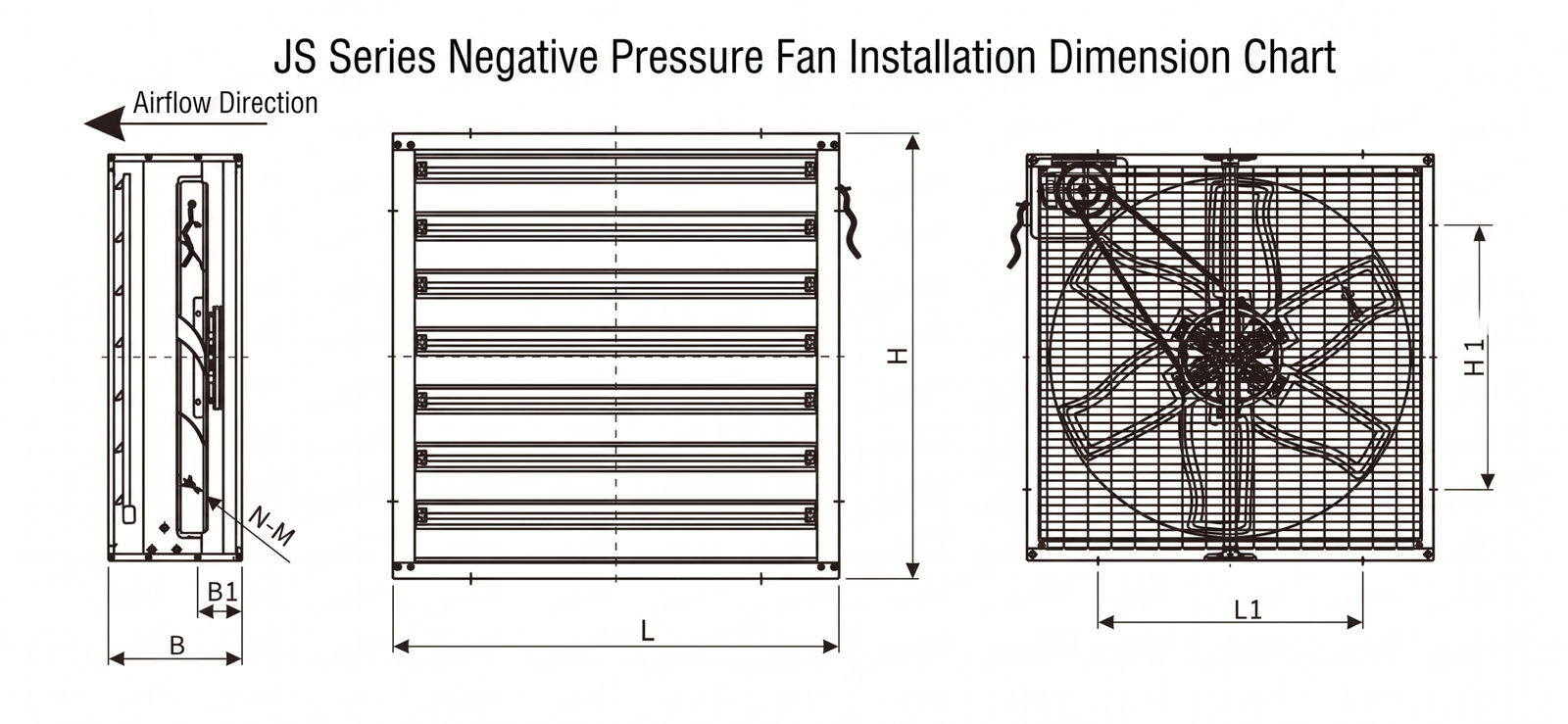

线图Technical Illustration
