T30 （belt driven/motor directly type） axial fan

T30A/C series are based on the type of 30K4-11 and featured by rational structure, low noise, high efficiency, high blade strength and etc. The series consist of common type and open type, which are used for ventilation and pipeline compression in industrialpipeline, to supply and exhaust high temperature gas and gases no with oil, water and dust. The gassed should be non-flammable,non-corrosive with the temperature no higher than 50°C.

产数Parameters

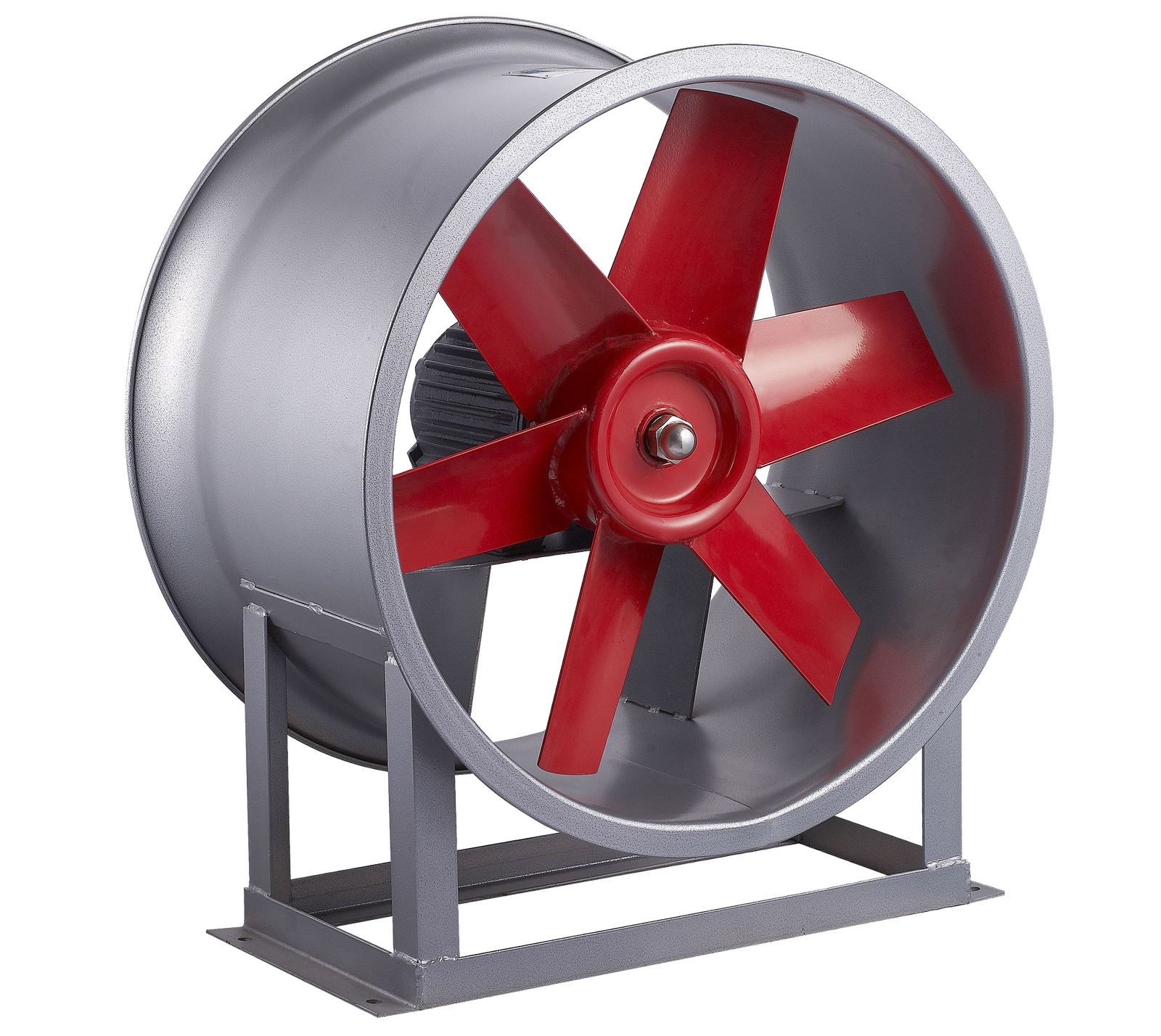

T30 Type A Series

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Noise dB(A)
3A	0.25	220/380	1400	1000~2000	52~26	≤62
3.5A	0.37	220/380	1400	2000~3000	82~39	≤68
4A	0.55	220/380	1400	2685~5000	173~118	≤74
4A	0.75	220/380	1400	5434~8273	172~123	≤76
5A	1.5	380	1400	5707~9644	228~167	≤79
5A	0.37	380	910	1722~5090	86~73	≤73
6A	2.2	220/380	1420	14000	173	≤84
6A	1.1	380	910	6933~10182	151~140	≤76
7A	3	380	1420	14979~22000	359~150	≤87
7A	1.5	380	960	14000	120	≤80
7A	1.1	380	720	10575	100	≤78
8A	4	380	1450	9000~25000	420~235	≤89
8A	2.2	380	960	5875~16319	278~100	≤84
9A	5.5	380	1450	25000~35000	296~210	≤89
9A	3	380	960	26000	248	≤88
10A	4	380	960	36889	250	≤89
12A	5.5	380	960	44731	260	≤91

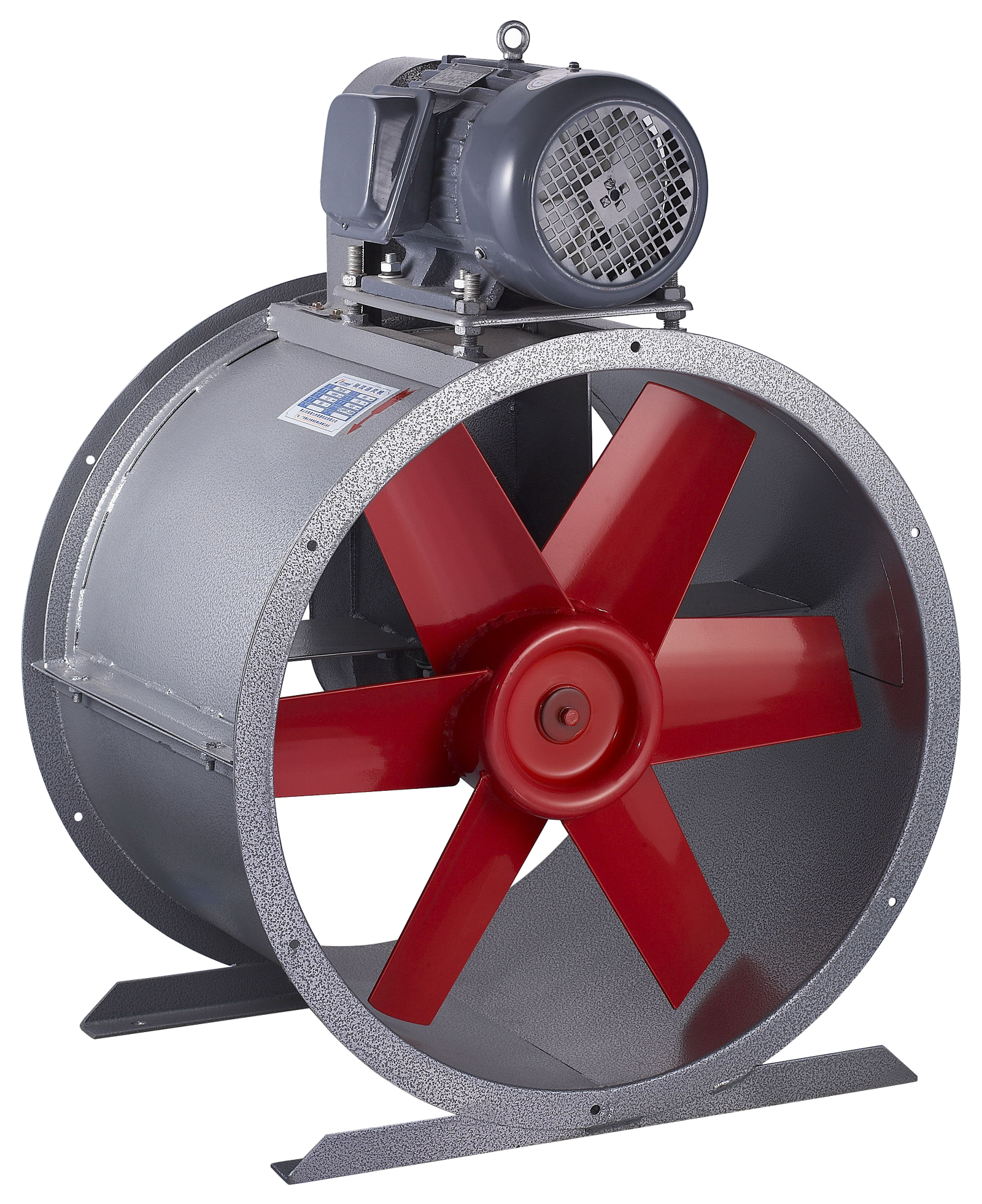

T30 Type C Series

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Noise dB(A)
3C	0.37	380	1400	1750	30	≤67
3.5C	0.55	380	1400	2500	40	≤68
4C	0.75	380	1600	4148	90	≤74
4C	0.55	380	1400	3500	79	≤73
5C	1.5	380	1600	8460	128	≤84
5C	1.1	380	1450	7667	100	≤80
5C	2.2	380	1800	9517	162	≤85
6C	1.5	380	1200	11590	123	≤79
6C	2.2	380	1450	14000	179	≤84
6C	3	380	1600	15448	217	≤85
7C	3	380	1450	19000	226	≤89
8C	4	380	1450	24500	221	≤91
9C	5.5	380	1450	31421	215	≤92
10C	4	380	960	27755	134	≤87
12C	7.5	380	960	44731	260	≤93

尺寸siz

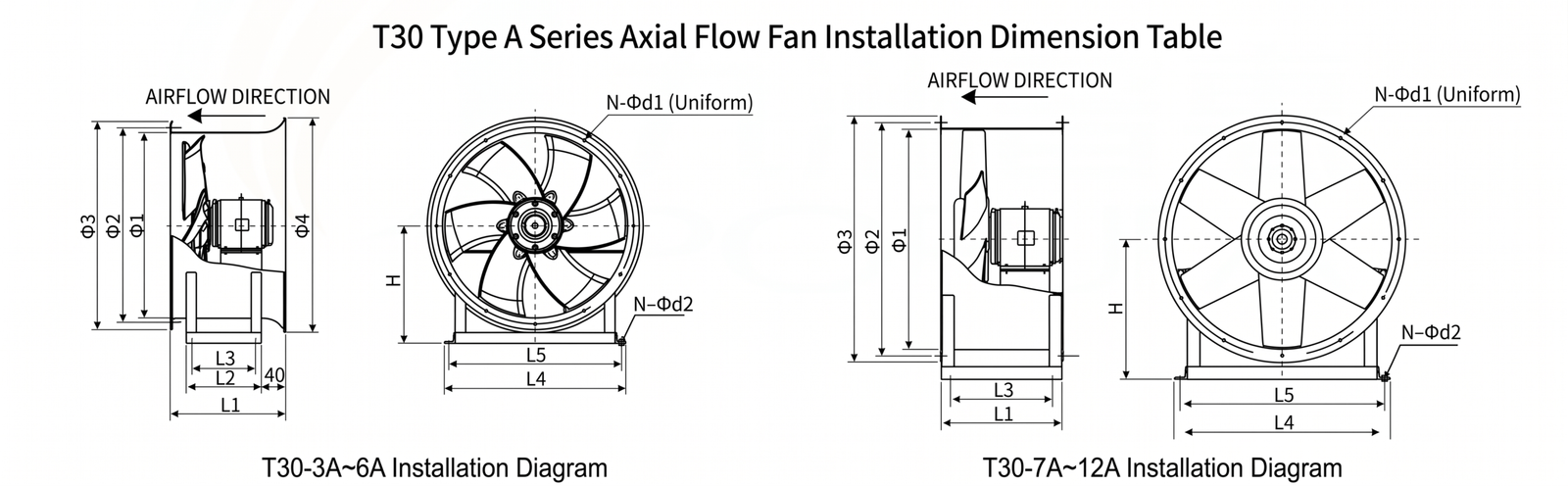

T30 Type A Series

Model	Motor Power	Φ1 (mm)	Φ2 (mm)	Φ3 (mm)	Φ4 (mm)	N-Φd1	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	L5 (mm)	H (mm)	N-Φd2	Weight (kg, with motor)
3.0A	0.25kW	310	330	360	370	3-Φ8	330	240	180	310	285	275	4-10	15
3.5A	0.37kW	360	380	410	420	4-Φ8	330	250	190	360	325	302	4-12.5×25	21
4A	0.55kW	410	430	460	485	4-Φ8	350	250	190	400	365	330	4-12.5×25	25
5A	0.75kW	510	530	565	585	4-Φ8	410	300	240	500	465	410	4-12.5×25	32
5A	0.37kW	510	530	565	585	4-Φ8	410	300	240	500	465	410	4-12.5×25	32
5A	1.5kW	510	530	565	585	4-Φ8	410	300	240	500	465	410	4-12.5×25	49
6A	2.2kW	610	635	665	695	6-Φ11	435	320	260	650	615	450	4-12.5×25	66
6A	1.1kW	610	635	665	695	6-Φ11	435	320	260	650	615	450	4-12.5×25	60
7A	3kW	710	750	780	–	8-Φ11	425	–	365	750	715	450	4-12.5×25	81
7A	1.5kW	710	750	780	–	8-Φ11	425	–	365	750	715	450	4-12.5×25	72
7A	1.1kW	710	750	780	–	8-Φ11	425	–	365	750	715	450	4-12.5×25	77
8A	4kW	810	850	890	–	8-Φ11	425	–	365	850	800	550	4-15×25	105
8A	2.2kW	810	850	890	–	8-Φ11	425	–	365	850	800	550	4-15×25	103
9A	5.5kW	910	950	990	–	8-Φ11	550	–	490	950	900	630	4-15×25	154
9A	3kW	910	950	990	–	8-Φ11	550	–	490	950	900	630	4-15×25	149
10A	4kW	1010	1050	1090	–	8-Φ11	550	–	490	1050	1000	685	4-15×25	176
12A	5.5kW	1210	1260	1310	–	8-Φ11	650	–	570	1250	1200	780	4-15×25	232

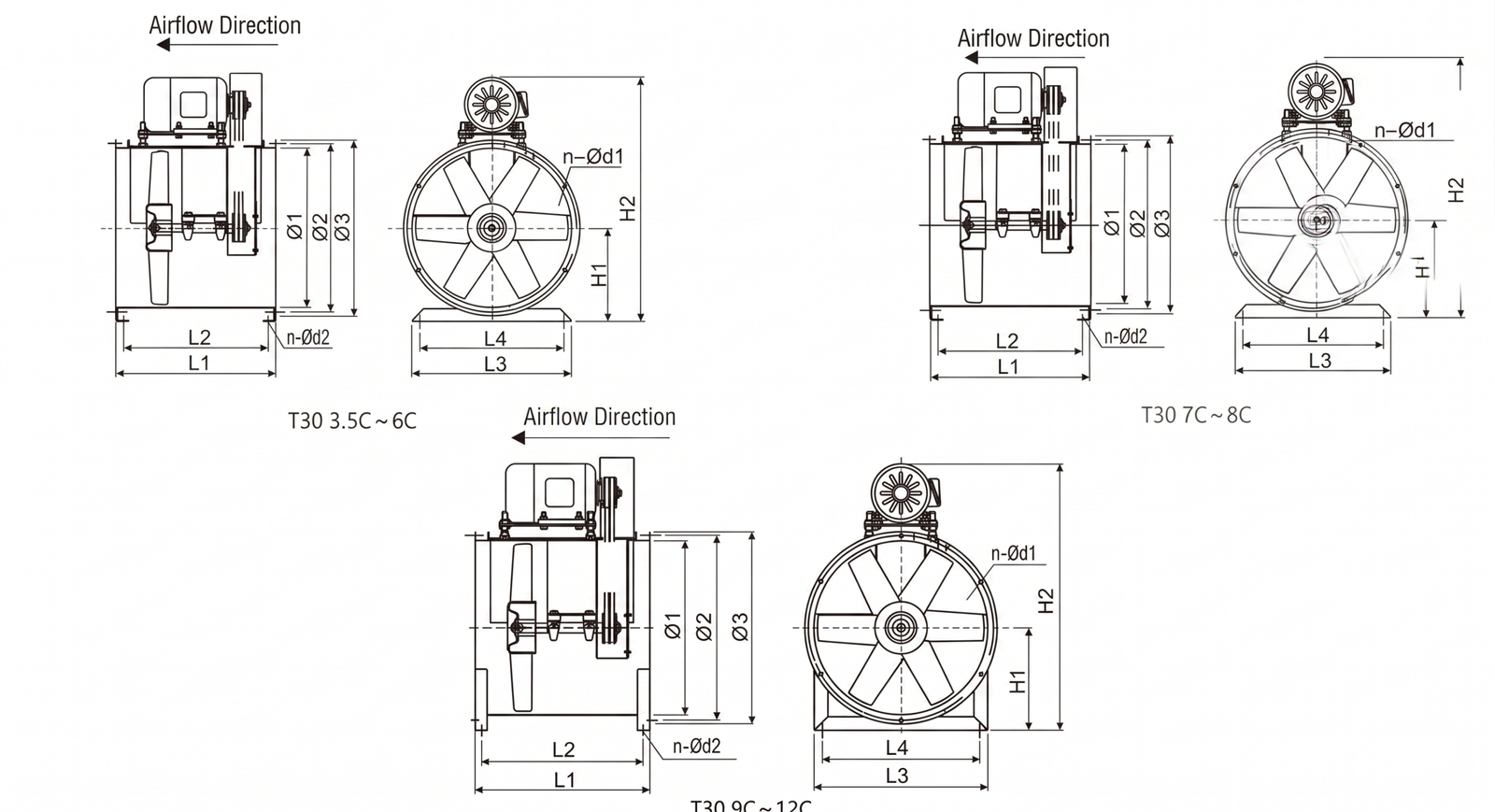

T30 Type C Series

Model	Motor	Ø1 (mm)	Ø2 (mm)	Ø3 (mm)	n-Ød1	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	H1 (mm)	H2 (mm)	n-Ød2	Weight (kg)
3C	71-4-0.37kW	310	340	370	4-Ø8	450	410	300	230	195	535	4-12.5×25	31
3.5C	80-4-0.55kW	360	395	420	6-Ø8	450	410	350	280	220	625	4-12.5×25	36
4C	80-4-0.55kW	410	440	470	6-Ø8	450	410	400	320	246	660	4-12.5×25	38
4C	80-4-0.75kW	410	440	470	6-Ø8	450	410	400	320	246	660	4-12.5×25	39
5C	90S-4-1.1kW	510	540	570	6-Ø10	505	455	500	420	295	770	4-12.5×25	56
5C	90L-4-1.5kW	510	540	570	6-Ø10	505	455	500	420	295	770	4-12.5×25	57
5C	100L-4-2.2kW	510	540	570	6-Ø10	505	455	500	420	295	770	4-12.5×25	64
6C	90L-4-1.5kW	610	645	670	6-Ø11	505	455	600	500	348	900	4-12.5×25	69
6C	100L-4-2.2kW	610	645	670	6-Ø11	505	455	600	500	348	900	4-12.5×25	76
6C	100L-4-3kW	610	645	670	6-Ø11	505	455	600	500	348	900	4-12.5×25	80
7C	100L-4-3kW	710	750	790	8-Ø11	555	505	700	600	408	1010	4-15×25	117
8C	112M-4-4kW	810	850	890	8-Ø11	555	505	800	700	458	1130	4-15×25	137
9C	132S-4-5.5kW	910	950	1010	10-Ø11	720	650	850	700	530	1270	4-15×25	208
10C	132M-6-4kW	1010	1050	1090	10-Ø11	720	650	950	800	580	1320	4-15×25	250
12C	160M-6-7.5kW	1210	1260	1310	12-Ø11	850	780	1150	1000	670	1470	4-15×25	364

线图Technical Illustration
