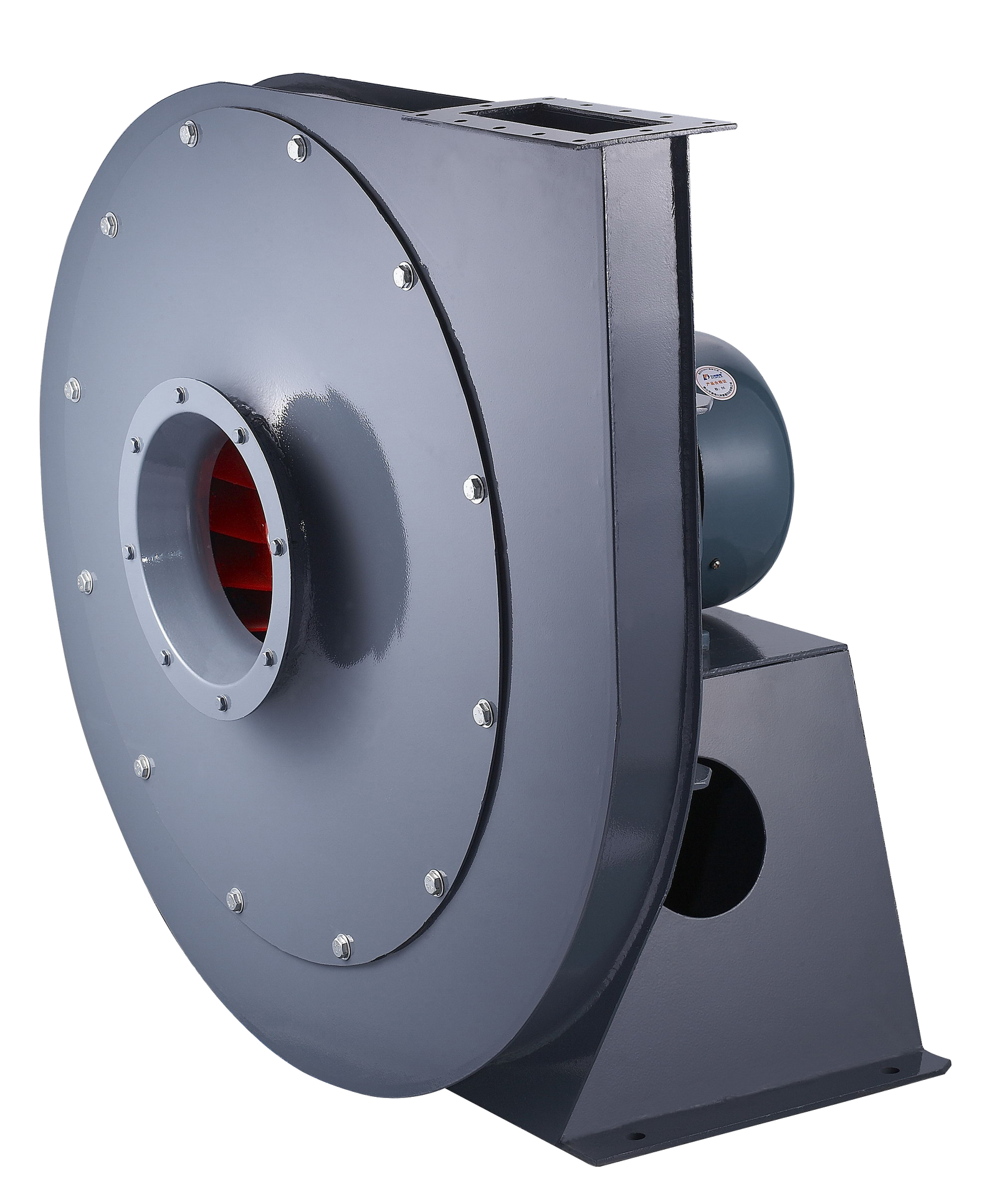

XQ high pressure centrifugal fan
XQl/Il type is the professional fans designed for Coercive ventilation in Cement Industry. The product is widely used to transport materials and gases with the quantity of dust and solid impurities ≤ 150mg/m³and the temperature no higher than 80°C
产数Parameters
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| XQⅠ-4.5A | 3 | 2900 | 372~13114 | 4722~4990 |
| XQⅠ-5.4A | 4 | 2900 | 334~11125 | 6363~6422 |
| XQⅡ-4.7A | 5.5 | 2900 | 503~1907 | 4987~5405 |
尺寸siz
线图Technical Illustration
