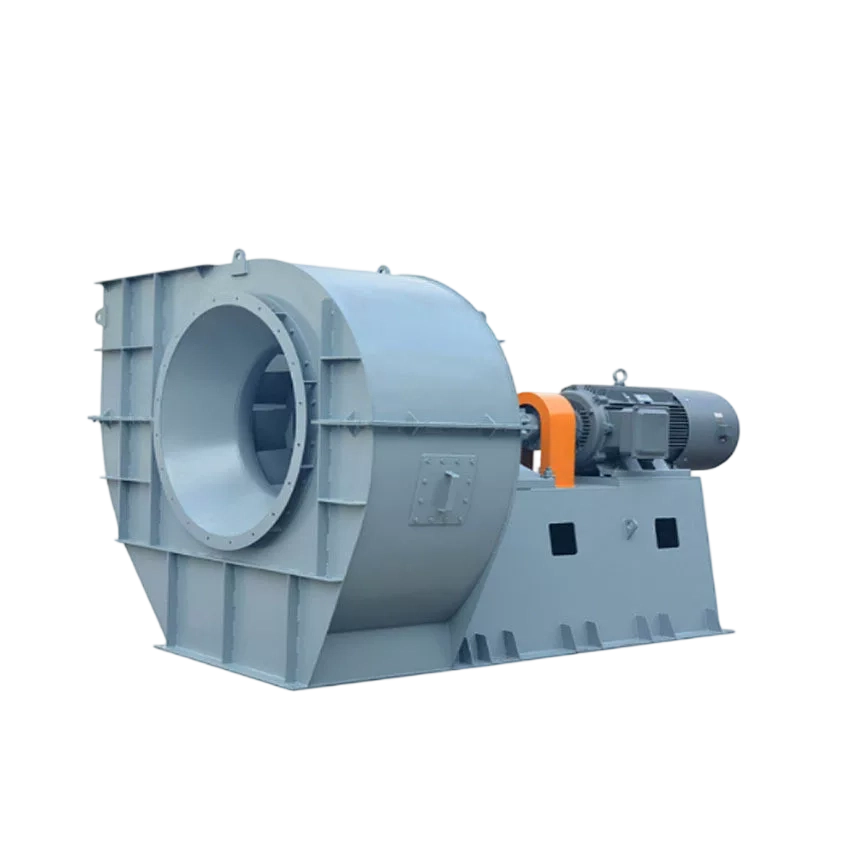

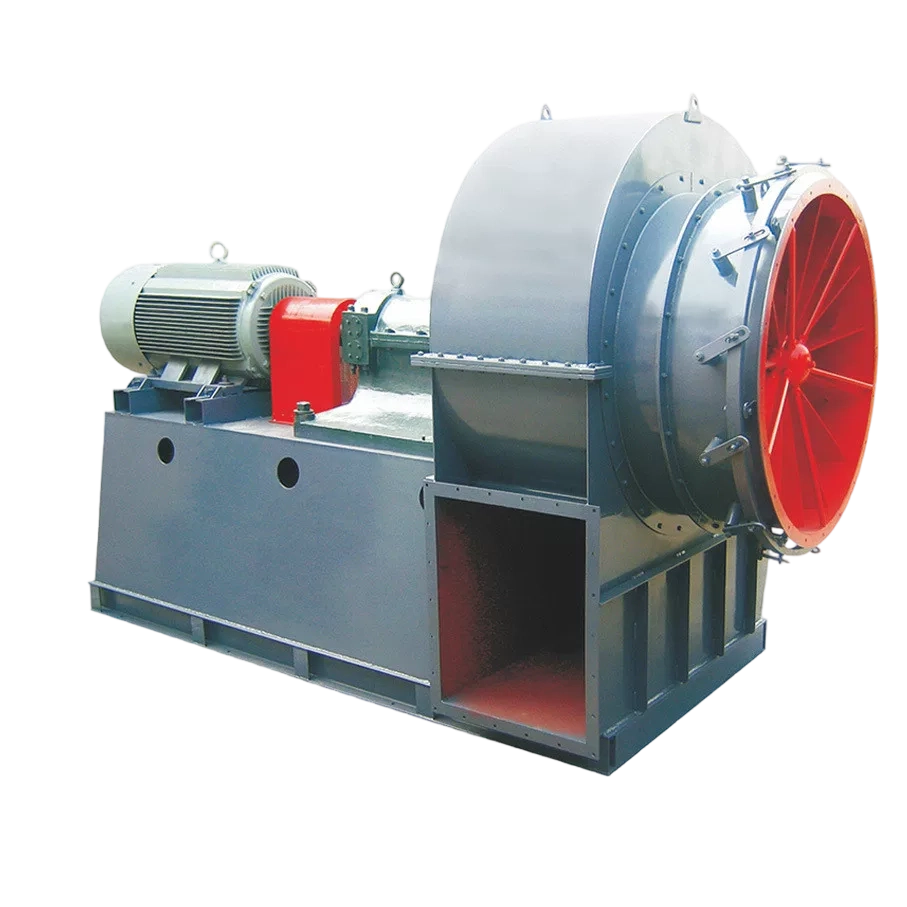

Y4-73 boiler centrifugal fan(D type)

Type G4-73 and Y4-73 boiler fans are used for a fan system of2 ~670T/h steam boilers in a thermal power plant. Also, the G4-73 can be used for ventilation of mine in a general ventilation, Ventilator conveying medium for air, the highest temperature shall not exceed 80 and induced draft fan conveying medium for flue gas, the highest temperature shall not exceed 250 . Moreover, G4-73isequipped with Type A Reloadable Motor. The type of general ventilation motors are made according to an E- class standard and the type of High-temperaturemotoris made of high-temperature resistant materi als. For heat dissipation,acooling wind wheel is added to the lengthened shaft between the impeller and the motor housing, which can effectively block the heat transmitted by the impeller,The structure of G4-73 is simple.

产数Parameters

A series

Model(Nº)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)
8A	15	1450	20442~30993	1284~868
9A	7.5	960	15229~29219	721~481
9A	30	1450	35052~44128	1511~1100
10A	15	960	20891~40077	891~594
10A	45	1480	48083~60533	1867~1359
11A	18.5	960	27806~53343	1079~719
11A	75	1480	53142~80570	2437~1646
12A	15	730	38282~52661	712~495
12A	30	980	36100~69253	1285~856
12A	110	1480	76040~104600	2929~1961
13A	22	730	34903~66954	876~583
13A	45	980	45900~88049	1514~1008
14A	30	730	43591~83624	1010~674
14A	75	990	79944~109970	1681~1167
14A	200	1490	120740~166100	3864~2676
15A	37	730	53617~102854	1166~776
15A	90	990	70510~135260	2016~1341
16A	45	590	51699~99178	883~555
16A	55	740	82333~124820	1302~880
16A	132	990	130390~164150	2097~1526

D series

Model(Nº)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)
8D	15	1450	20442~30993	1284~868
9D	30	1470	35052~44128	1511~1100
10D	7.5	960	15229~29219	721~481
10D	45	1480	48083~60533	1867~1359
10D	11	960	20891~40077	891~594
10D	5.5	720	15886~30475	515~343
11D	75	1480	53142~80570	2437~1646
11D	18.5	980	27806~53343	1079~719
11D	11	730	32220~40562	570~415
12D	110	1480	76040~104600	2829~1961
12D	30	980	36100~69253	1285~856
12D	15	730	28282~52661	712~495
14D	220	1490	120740~166100	3864~2676
14D	75	990	79944~109970	1681~1167
14D	30	730	43591~83624	1010~674
16D	132	990	130390~164150	2097~1526
16D	55	740	82333~124820	1302~880
16D	45	590	51699~99178	833~555
18D	220	990	185650~233730	2659~1934
18D	110	740	141170~177730	1532~1115
18D	55	590	112160~141210	965~703
20D	355	990	167130~320610	3598~2392
20D	160	740	160800~243800	2039~1378
20D	90	590	153860~193700	1192~868

尺寸siz

线图Technical Illustration
