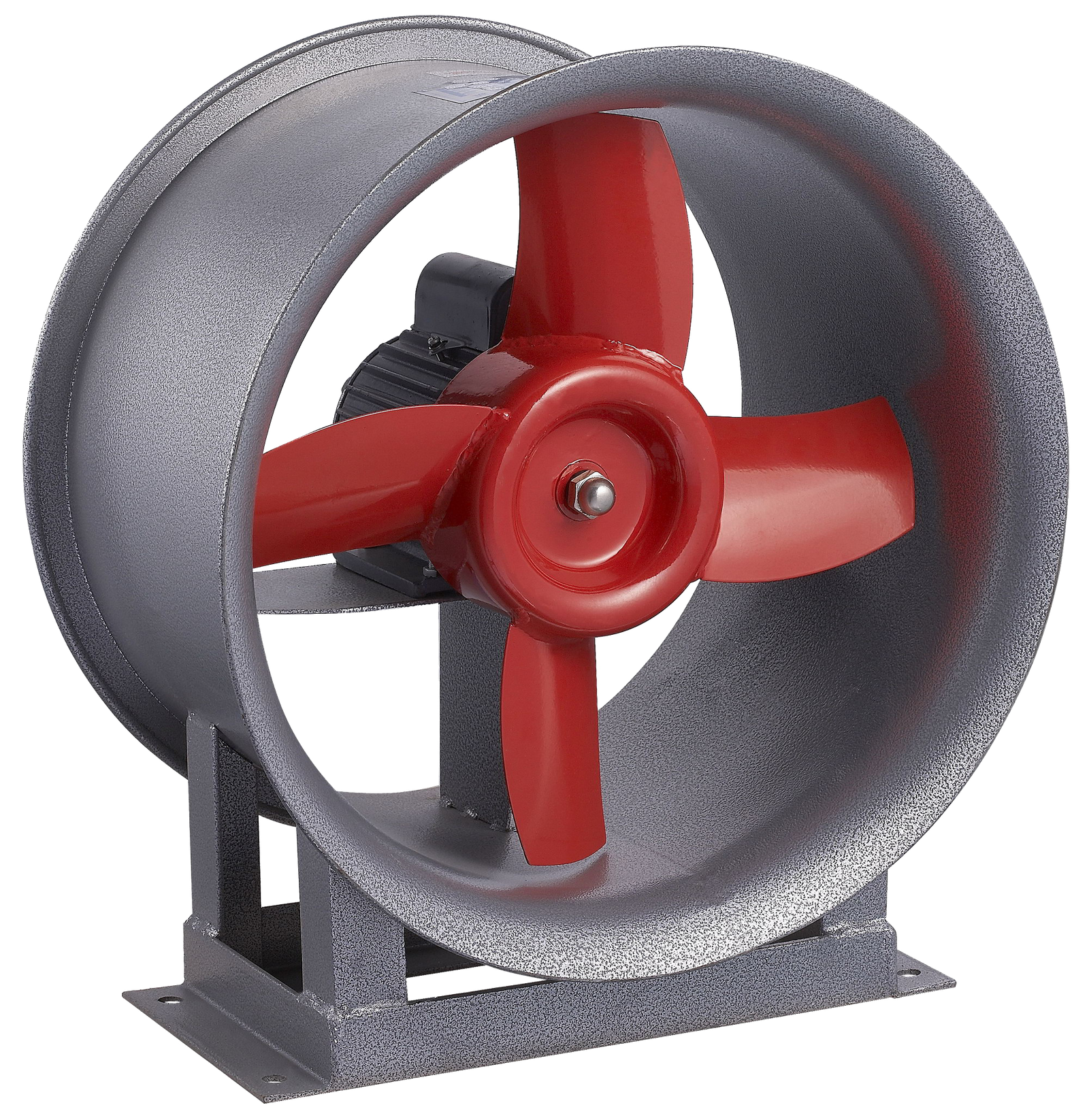

T35 type axial fan

It is the substitute product of 30K-4 type axial fan. BT35 is used for ventilation in places that that contain flammable, explosive and corrosive gases; And T35 is used for ventilation and cooling in factories, offices, houses and etc, it is also series installed in longer pipeline to raise the air pressure in pipeline. The air transferred shall not be corrosive with notable dust, the temperature of the air shall not exceed 50°C.

产数Parameters

Model(Nº)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Leaf at angle	Noise dB(A)
2.8A	0.37	2800	2778	186	32°	≤75
2.8A	0.18	2800	2560	143	22°	≤72
3.15A	0.55	2800	4155	247	30°	≤79
3.15A	0.37	2800	3418	189	25°	≤76
3.15A	0.12	1400	2078	62	30°	≤64
3.15A	0.18	1400	2415	51	35°	≤63
3.55A	0.37	2800	2783	216	25°	≤80
3.55A	0.75	2800	5380	280	28°	≤82
3.55A	1.1	2800	5951	314	28°	≤83
3.55A	0.18	1400	2981	78	32°	≤68
3.55A	0.25	1400	3457	65	32°	≤67
4A	1.5	2800	7685	354	35°	≤85
4A	1.1	2800	6999	305	30°	≤83
4A	0.25	1400	4261	100	32°	≤73
4A	0.37	1400	4945	83	32°	≤71
4.5A	0.37	1400	6067	126	30°	≤75
4.5A	0.55	1400	6455	108	30°	≤74
5A	0.55	1400	7907	146	28°	≤78
5A	0.75	1400	8712	165	32°	≤79
5A	0.37	910	5768	72	32°	≤70
5.6A	0.75	1400	10168	163	23°	≤80
5.6A	1.1	1400	12239	206	28°	≤82
5.6A	0.37	910	8103	90	23°	≤73
6.3A	2.2	1420	17426	261	30°	≤86
6.3A	0.75	910	10472	101	32°	≤76
7.1A	2.2	1420	16501	251	22°	≤85
7.1A	1.1	910	16514	145	26°	≤81
7.5A	3	1420	19450	280	30°	≤87
8A	5.5	1450	29644	332	30°	≤90
8A	7.5	1450	35682	420	35°	≤93
8A	2.2	960	23624	184	35°	≤84
9A	3	960	30532	206	30°	≤86
9A	4	960	33937	233	35°	≤88
10A	4	960	38333	227	25°	≤88
10A	7.5	960	46141	288	35°	≤91
11.2A	7.5	960	53855	285	30°	≤92
11.2A	11	960	64825	361	35°	≤96

尺寸siz

Model	Motor Power	Ø1 (mm)	Ø2 (mm)	Ø3 (mm)	Ø4 (mm)	N-Ød1	L1 (mm)	L2 (mm)	L3 (mm)	L4 (mm)	L5 (mm)	K (mm)	H (mm)	N-Ød2	Weight (kg)
2.8A	0.18kW	290	310	335	345	3-Ø8	250	160	120	280	255	35	220	4-Ø10	13
2.8A	0.37kW	290	310	335	345	3-Ø8	250	160	120	280	255	35	220	4-Ø10	16
3.15A	0.12kW	325	345	375	385	3-Ø8	280	190	140	310	285	35	240	4-Ø10	14
3.15A	0.18kW	325	345	375	385	3-Ø8	280	190	140	310	285	35	240	4-Ø10	–
3.15A	0.37kW	325	345	375	385	3-Ø8	280	190	140	310	285	35	240	4-Ø10	17
3.15A	0.55kW	325	345	375	385	3-Ø8	280	190	140	310	285	35	240	4-Ø10	–
3.55A	0.18kW	360	380	410	425	4-Ø8	280	190	140	360	335	35	240	4-Ø10	15
3.55A	0.25kW	360	380	410	425	4-Ø8	280	190	140	360	335	35	240	4-Ø10	–
3.55A	0.37kW	360	380	410	425	4-Ø8	280	190	140	360	335	35	240	4-Ø10	–
3.55A	0.75kW	360	380	410	425	4-Ø8	280	190	140	360	335	35	240	4-Ø10	18
3.55A	1.1kW	360	380	410	425	4-Ø8	280	190	140	360	335	35	240	4-Ø10	19
4A	0.25kW	410	430	460	485	4-Ø8	300	200	150	400	365	35	280	4-12.5×25	19
4A	0.37kW	410	430	460	485	4-Ø8	300	200	150	400	365	35	280	4-12.5×25	–
4A	1.1kW	410	430	460	485	4-Ø8	300	200	150	400	365	35	280	4-12.5×25	22
4A	1.5kW	410	430	460	485	4-Ø8	300	200	150	400	365	35	280	4-12.5×25	32
4.5A	0.37kW	455	480	510	520	4-Ø8	300	200	150	450	415	35	300	4-12.5×25	24
4.5A	0.55kW	455	480	510	520	4-Ø8	300	200	150	450	415	35	300	4-12.5×25	–
5A	0.37kW	510	530	560	585	4-Ø8	325	230	180	500	465	35	330	4-12.5×25	–
5A	0.55kW	510	530	560	585	4-Ø8	325	230	180	500	465	35	330	4-12.5×25	26
5A	0.75kW	510	530	560	585	4-Ø8	325	230	180	500	465	35	330	4-12.5×25	–
5.6A	0.37kW	565	590	620	630	4-Ø8	350	250	200	560	525	35	355	4-12.5×25	30
5.6A	0.75kW	565	590	620	630	4-Ø8	350	250	200	560	525	35	355	4-12.5×25	–
5.6A	1.1kW	565	590	620	630	4-Ø8	350	250	200	560	525	35	355	4-12.5×25	42
6.3A	0.75kW	630	660	690	710	6-Ø8	410	300	250	630	595	35	390	4-12.5×25	46
6.3A	2.2kW	630	660	690	710	6-Ø8	410	300	250	630	595	35	390	4-12.5×25	56
7.1A	1.1kW	710	750	780	–	8-Ø11	425	—	365	750	715	—	450	4-12.5×25	67
7.1A	2.2kW	710	750	780	–	8-Ø11	425	—	365	750	715	—	450	4-12.5×25	73
7.5A	3kW	760	800	830	–	8-Ø11	425	—	365	800	765	—	480	4-12.5×25	85
8A	2.2kW	810	850	890	–	8-Ø11	425	—	365	850	800	—	550	4-15×25	106
8A	5.5kW	810	850	890	–	8-Ø11	500	—	440	850	800	—	550	4-15×25	131
8A	7.5kW	810	850	890	–	8-Ø11	500	—	440	850	800	—	550	4-15×25	144
9A	3kW	910	950	990	–	8-Ø11	550	—	490	950	900	—	630	4-15×25	156
9A	4kW	910	950	990	–	8-Ø11	550	—	490	950	900	—	630	4-15×25	166
10A	4kW	1010	1050	1090	–	8-Ø11	550	—	490	1050	1000	—	685	4-15×25	177
10A	7.5kW	1010	1050	1090	–	8-Ø11	650	—	590	1050	1000	—	685	4-15×25	240
11.2A	7.5kW	1130	1180	1220	–	8-Ø11	680	—	620	1150	1100	—	720	4-15×25	262
11.2A	11kW	1130	1180	1220	–	8-Ø11	680	—	620	1150	1100	—	720	4-15×25	278

线图Technical Illustration
