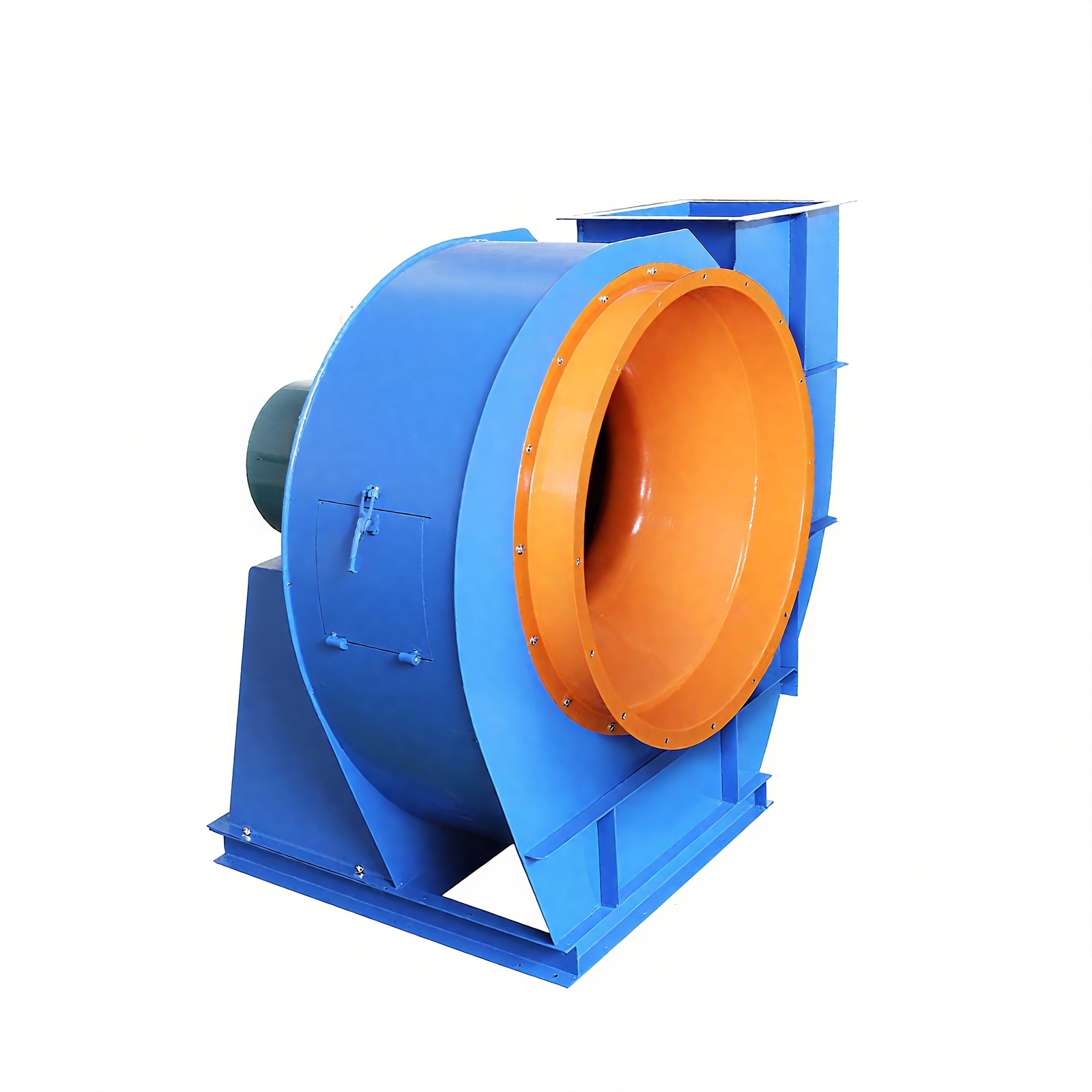

5-53 (A type) Centrifugal fan

The 5-53 series is designed to meet the needs of waste gas treatment in the environmental protection industry and has a high efficient flow and flat pressure curve, which is beneficial to the overall energy consumption of environmental protection equipment and the selection of projects. The frame of this series of fans is rear disassembly type, eliminating the need to disassemble the inlet and outlet ducts for future maintenance. This series of fans are equipped with a permanent magnet motor to achieve infinitely adjustablespeed, which has the advantages of simple maintenance and small volu.

产数Parameters

Model(Nº)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)
5A	11	2930	5706~8519	3856~3277
5.4A	15	2930	7189~10731	4498~3729
5.6A	18.5	2930	8017~11932	4837~4110
5.8A	22	2940	8907~13205	5189~4409
6A	30	2950	9861~14710	5553~4719
6.8A	45	2960	14355~21379	7133~5969
8A	15	1460	11670~17286	2434~2068
8.8A	22	1470	15663~23327	3025~2572
9.3A	30	1480	18600~27700	3475~2952
10A	45	1480	23300~34700	4018~3414
10.5A	55	1480	26972~40263	4429~3764
11.2A	75	1480	32750~48864	5040~4282
12A	110	1480	40281~59962	5786~4916
12.5A	132	1480	45529~67773	6278~5334
13.2A	55	980	35520~52846	3069~2608
14A	75	980	42350~63049	3454~2934
15A	110	980	52095~77547	3963~3368
16A	132	980	63250~94332	4510~3823

尺寸siz

线图Technical Illustration
