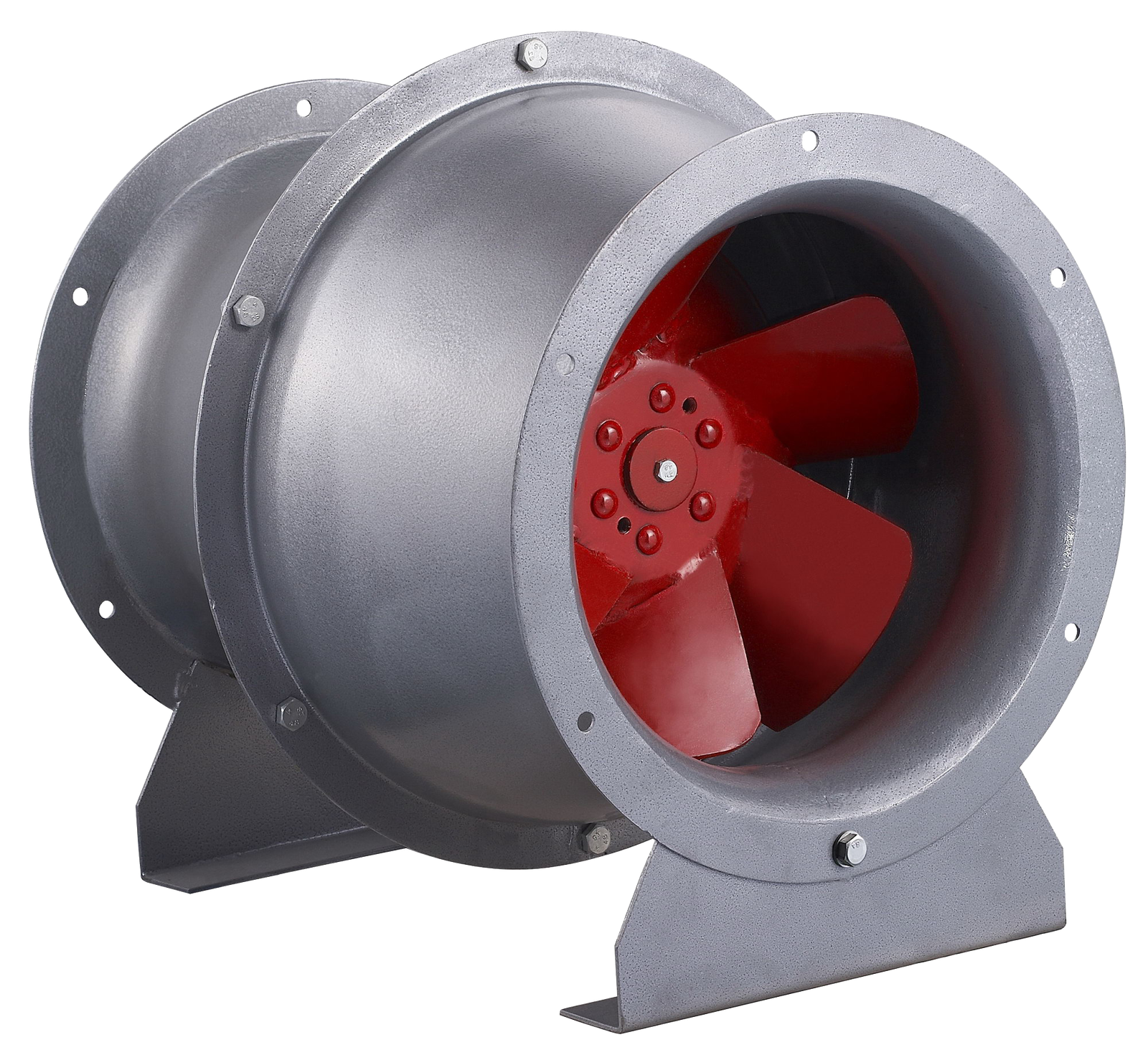

GXF diagonal flow fan

Therefore, the product is especially suitable for pipeline installation ofa smallspace,in places like the mining industry, hotels museums, sports venues for pipelinepressure, the air supply and exhaust, it also used forventilation in general buildings and tallbuildings with the gas temperature between -20°C to 50°C and the quantity of dust and solid impurities ≤100mg/m³。

产数Parameters

Model(Nº)	Power(kW)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Staticpressure(Pa)	Noise dB(A)
3.0F	0.25	1400	864~2559	179~125	148~77	≤64
3.5S	0.18	910	908~2725	107~75	99~55	≤60
3.5F	0.37	1400	1372~4116	243~170	234~120	≤67
4.0S	0.25	910	1836~3642	151~89	142~49	≤67
4.0F	0.75	1400	2825~5603	359~211	336~118	≤78
4.5S	0.37	910	2383~4506	186~141	176~102	≤68
4.5F	1.1	1400	3664~6932	441~332	417~242	≤82
5.0S	0.75	910	3416~7257	226~143	212~79	≤71
5.0F	2.2	1420	5338~11339	552~350	518~192	≤84
6.0S	1.5	960	7332~13677	332~246	300~122	≤79
6.0F	5.5	1450	11075~20660	758~561	685~277	≤90
7.0S	3	960	9232~18309	440~333	413~225	≤81
8.0S	7.5	960	19645~32524	637~476	564~276	≤85

尺寸siz

线图Technical Illustration
